:| INA - 1.8T to 2.0T Coil Pack Adapters (TECH & FAQ) - INTRO PRICING |:

[Wizard-of-OD]

*** 1.8T to 2.0T Coil Pack Adapter Plates ***

You asked,we listened!
Just wanted to say thank you to the community for giving us the opportunity to take these from design to production and in the process being able to help out where we could.

For those who are wondering what we are talking about, here is the original thread.

We are going to be making 2 versions.
V1.1 is for use with Coil Pack hold down units and V1.2 is for use similar to how OEM is set up so please specify which you want when ordering.

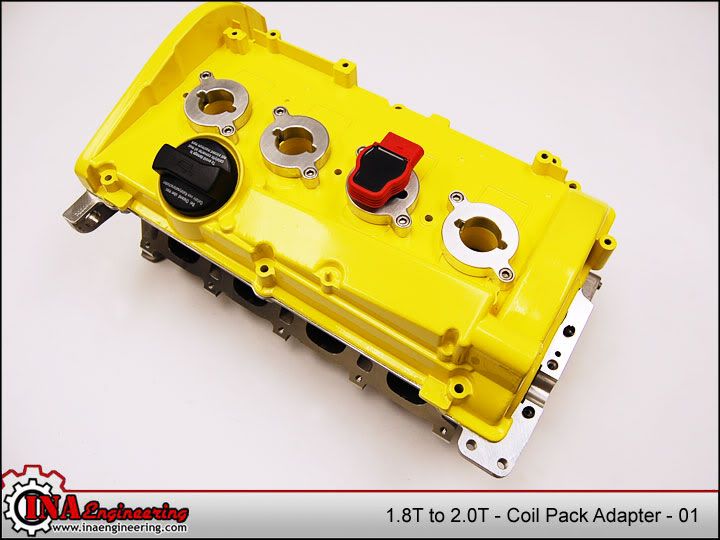

We only took a sample photo of the raw machined units. All pieces will be cleared anodized unless specified (we can offer blue and black anodized as well).



PACKAGE INCLUDES:

• (4) Coil Pack adapters machined from high quality Canadian T6061 Aluminum
• (8) M6 x 20mm SS socket cap screws

AZ: $89 USD SHIPPED.

Ready to Purchase? No Problem! .CLICK HERE or Jump on the list below
We are accepting payment via paypal so please follow the instructions in the box below:

When making payment with paypal please include the following:
Full Name :
Forum Screen Name:
VERSION : Specify V1.1 or V1.2
COLOUR : Specify Clear or Black Anodized
Shipping Address:
Billing Address:

FAQ:

1. Why would I convert my 1.8T to use 2.0T coils?

   Allthough when we dissected the 2.0T Coil , internally it was the same as a 1.8T unit. I am waiting on getting a 2.8 24V Coil Pack so I can throw up a comparison shot but in the mean time running the 2.0T Coils allow you to run a hotter spark.
   We have a few local customers that we did the conversion for and they are extremely happy with the results.

2. What is the largest gap I can run with these coil packs?

   0.04" is what we used. If others have used larger please chime in and post up the data.

3. Why is the adapter plate needed??

   The OEM 2.0T Coils are approx 14mm taller than the 1.8T units. In order to have a seal that allows some form of security with the valve cover, the coil pack requires an adapter plate.

4. What are the PART #'s ?

   RED MKV FSI Coil Packs - 06E 905 115
   BLACK MKV FSI Coil Packs - 07K 905 715 F
   BLACK MKV TSI Coil Packs - 06F 905 115 F
   BLACK MKVI TSI Coil Packs - 06H 905 115

If you have any questions please do not hesitate to send over an email or post in here. Thanks so much everyone. If you feel like contributing to the FAQ , post it in here and I will compile it and add it to the FAQ.
Issam
:thumbup:

[MmmBoost]

IN!

[Wizard-of-OD]

V1.1 LIST:

1. (4) 05GTIMarine - V1.1 PAID
2. (4) bigblue - V1.1 PAID
3. (4) jalcom1 - V1.1 - BLACK ANODIZED PAID
4. (4) TurboJOSH - V1.1 PAID
5. (4) EHOLT - V1.1 - BLACK ANODIZED PAID
6. (4) formerly silveratljetta - V1.1

V1.1 Counter == 24/8

V1.2 LIST: REGULAR

1. (4) 613B6 - V1.2 PAID
2. (4) Antoinebourdeau - V1.2 PAID
3. (4) gmx - V1.2 - PAID
4. (4) dknl - V1.2 - PAID
5. (4) Gulfstream - V1.2 - PAID
6. (4) EBG 18T - V1.2 - PAID
7. (4) vhstejskal - V1.2 - PAID
8. (4) cosbian - V1.2 - PAID
9. (4) dan5171 - V1.2 - PAID
10. (4) n7plus1 - V1.2 - PAID
11. (4) heywier427 - V1.2 - PAID
12. (4) Shayneduboulay - V1.2 - PAID
13. (4) WRC - V1.2 - PAID
14. (4) TooLFan46n2 - V1.2
15. (4) RabbitGTDguy - V1.2
16. (4) Audi Skate Snow - V1.2
17. (4) SEATONE - V1.2
18. (4) diagnosticator - V1.2
19. (4) Duchenbagen - V1.2

V1.2 LIST: BLACK ANODIZED

1. (4) MmmBoost - V1.2 - BLACK ANODIZED PAID
2. (4) A4Maine-iac - V1.2 - BLACK ANODIZED PAID
3. (4) checkdalevel - V1.2 - BLACK ANODIZED PAID
4. (4) Wet0willy01 - V1.2 - BLACK ANODIZED PAID
5. (4) kneel - V1.2 - BLACK ANODIZED PAID
6. (4) Robdon - V1.2 - BLACK ANODIZED PAID
7. (4) EErie B6 - V1.2 - BLACK ANODIZED PAID
8. (4) Jinxed - V1.2 - BLACK ANODIZED PAID
9. (4) mnkyA4 - V1.2 - BLACK ANODIZED PAID
10. (4) CyberPMG - V1.2 - BLACK ANODIZED PAID
11. (4) nofearhawk - V1.2 - BLACK ANODIZED PAID
12. (4) walky_talky20 - V1.2 - BLACK ANODIZED PAID
13. (4) L.C.R. - V1.2 - BLACK ANODIZED PAID
14. (4) mrbacardi35 - V1.2 - BLACK ANODIZED PAID
15. (4) cerwin69 - V1.2 - BLACK ANODIZED PAID
16. (4) AmIdYfReAk - V1.2 - BLACK ANODIZED PAID
17. (4) Jflow23 - V1.2 - BLACK ANODIZED PAID
18. (4) liloldbie - V1.2
19. (4) audi_nightrider - V1.2
20. (4) 4RingsUSP - V1.2

V1.2 Counter == 156/80

V1.3's will be an additiional $5.
V1.3 : AWD / AEB / AYP / AGU / etc - Bolt down coils

1. (4) Cryser - V1.3 - BLACK ANODIZED PAID
2. (4) herb2k - V1.3 PAID
3. (4) Velocity196 - V1.3 - BLACK ANODIZED PAID
4. (4) vinny.dtw - V1.2 PAID
5. (4) walky_talky20 - V1.3 - BLACK ANODIZED PAID
6. (4) Lasrsktr
7. (4) BensBlackGTI
8. (4) Caged_Bora_R1.8T
9. (4)
10. (4)
11. (4)
12. (4)
13. (4)
14. (4)

Counter == 28.

[Casius]

Issam, do you have the coils locally in Ottawa?

[Wizard-of-OD]

Issam, do you have the coils locally in Ottawa?

Hi Casius
yes I do. Sam took my last set of Black B6 Coils tonight but he can post his opinion shortly.

I have the red's that you wanted :)

[Casius]

I'd prefer the blacks too, not a big "bling" fan hahaha :)

PM me with a price for everything and I'll try to make some time soon to come by... Maybe if you're ordering some more black ones I'll wait for them.

Thanks man, nice work by the way

[bigblue]

Hell ya Issam! Lets get these to the masses!

[Wizard-of-OD]

I'd prefer the blacks too, not a big "bling" fan hahaha :)

PM me with a price for everything and I'll try to make some time soon to come by... Maybe if you're ordering some more black ones I'll wait for them.

Thanks man, nice work by the way

Thank You

Check your PM

[Gmoney]

issam I want in but I am having a problem with Paypal. I sold something last week and the guy I sold to is trying to rip me off so Paypal has a huge hold on my account. Is there anyway I can pay in a different fashion.

[Wizard-of-OD]

issam I want in but I am having a problem with Paypal. I sold something last week and the guy I sold to is trying to rip me off so Paypal has a huge hold on my account. Is there anyway I can pay in a different fashion.

Sure
simply email me and I will take care of it for you :)

[vhstejskal]

They look awesome!!!

[Wizard-of-OD]

They look awesome!!!

Thank You

[bigblue]

Damn you Issam! Making my buy my set lol. Set me up with a set of v1.1s and send them with 05gtimarine's set to save me the shipping at least. Hit me up via pm

[Wizard-of-OD]

Damn you Issam! Making my buy my set lol. Set me up with a set of v1.1s and send them with 05gtimarine's set to save me the shipping at least. Hit me up via pm

lol
no worries at all . You use paypal?

[bigblue]

Of course lol. I sell so many parts its crazy! That and I've over 6k on this car in the past year lol. send me a request with your price to my paypal which is [email protected]

[Wizard-of-OD]

Sent
(1) V1.1 and (1) V1.2

[613B6]

I put them in tonight and notice a better idle right away, very smooth, gapped at .040 I went for a rip and I literally pulled out and raced a Skyline for pretty much a 1st gear roll all the way through 4th. Car just pulled smooth through the rev range without a misfire or hint off which would have for sure missed at that gap before, the car is running around 24psi on a GTRS with NGK plugs. Off boost is smooth, definitely something too them...

INA, great products and service!

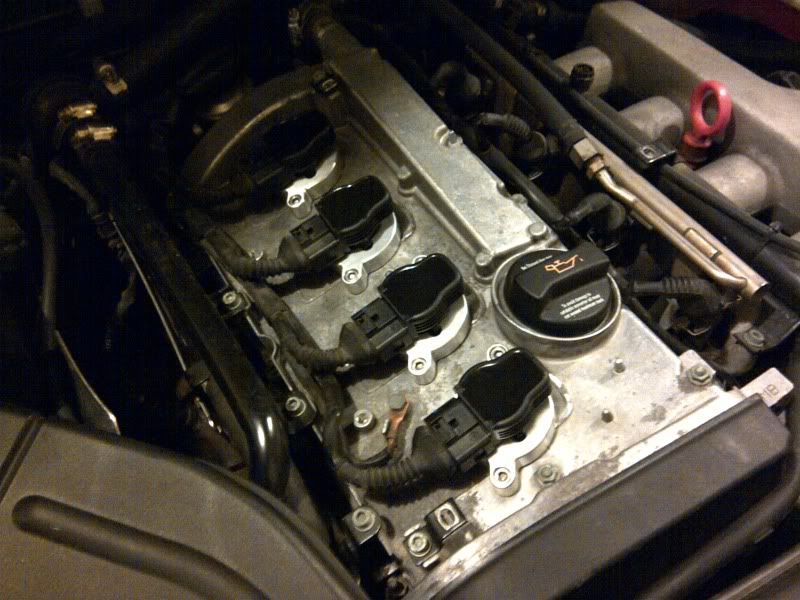

crappy cell phone pic..

[nihil]

Any payment option for those of us who don't do paypal?

[Wizard-of-OD]

Any payment option for those of us who don't do paypal?

Sure
send over an email to us
list updated

[bigblue]

I sent payment, why does it say 05gtimarine twice cracker?

[Wizard-of-OD]

I sent payment, why does it say 05gtimarine twice cracker?

temperamental today arnt we?

[Wet0willy01]

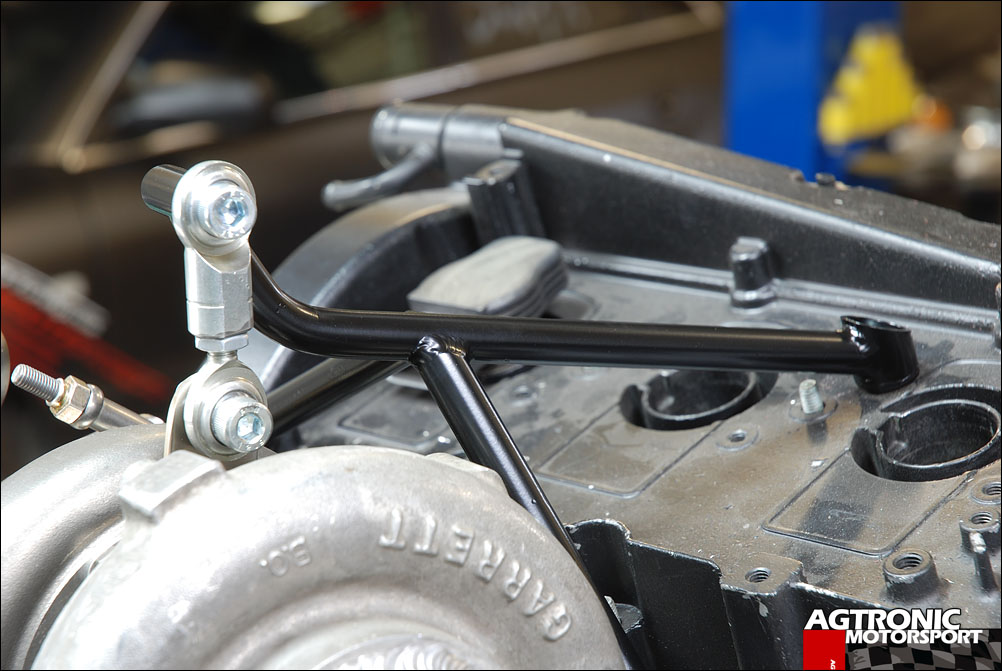

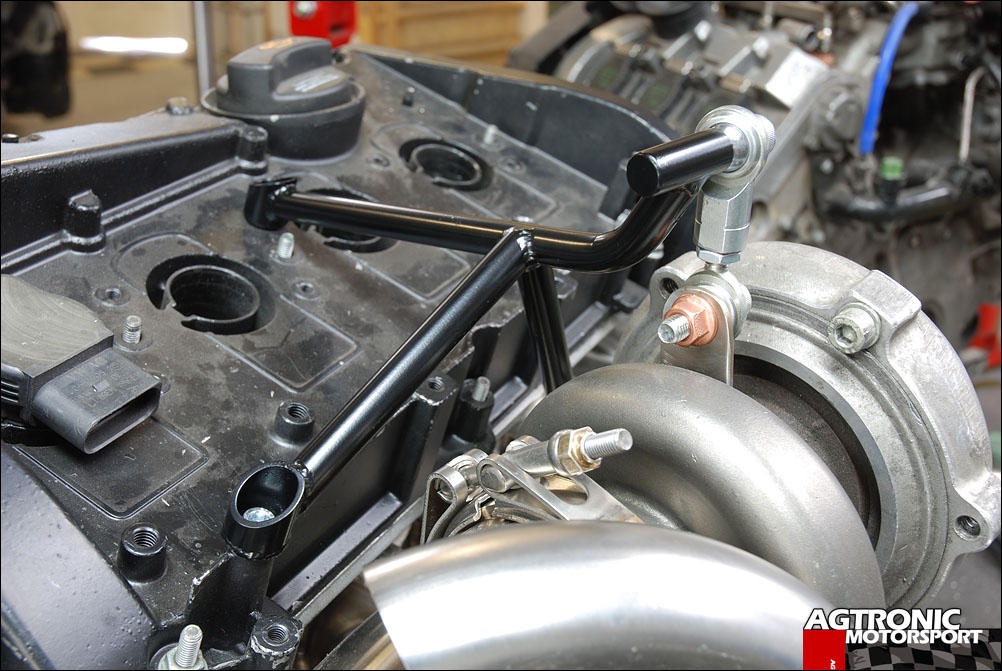

I just realized theses will interfere with my turbo brace from Markku.


Rash decisions making more work for myself FML.

[Wizard-of-OD]

Post up a pick of your brace?

[Wet0willy01]

YGPM, thanks Issam!

[vinny.dtw]

So really, 1.1 or 1.2, you don't really have to use the hold down bracket?

[bigblue]

temperamental today arnt we?

Tempermental no... tired yes...jus a tad aggravated that we have to remove my ko4 to readjust the wastegate tomorrow

[Wizard-of-OD]

So really, 1.1 or 1.2, you don't really have to use the hold down bracket?

To be honest no.
The local cars dont have the ECS hold down brackets....personally I prefer the 1.2 because I like the socket cap screws sitting flush.

[vinny.dtw]

Gotya. Email coming Issam.

[bigblue]

For our sets are you including bolts long enough for our ecs hold downs?

[Wet0willy01]

Post up a pick of your brace?

Edit Photobucket down ftl

[Kmit11]

Wait so my spark plugs are gapped to .032 right now; if I bought this and kept the plugs gapped at .032 would that be bad?

[gmx]

Gotya. Email coming Issam.

Looks like I'll swap over to V1.2.
Will specify in email :)

[vinny.dtw]

Payment sent.

[Wet0willy01]

Post up a pick of your brace?

[diagnosticator]

Wait so my spark plugs are gapped to .032 right now; if I bought this and kept the plugs gapped at .032 would that be bad?

It's not bad, as in won't cause any harm, but you won't realize the full benefits of the 2.0l TFSI coil packs unless you run with a wider plug gap like .040", instead of the stock .032". Your engine will run better, but not as good as with a .040" plug gap. An NGK plug with -11 added to the plug number, is factory gapped at .044", or 1.1mm.

[Wizard-of-OD]

YGPM, thanks Issam!

Ok what you are going to have to do is basically lop off an ear on one of the adapters so that you are able to clear the turbo brace.

[Antoinebourdeau]

So really, 1.1 or 1.2, you don't really have to use the hold down bracket?

To be honest, no.
The local cars don’t have the ECS hold down brackets

I would be one of those local cars. Like Issam said, they are pretty well anchored in there without the hold down brackets. When I tried to remove the coils, I had to pull pretty hard on them to get them out; and that was before the coil pack adapters. Now with them on, taking them out is like trying to pull your teeth out one by one, with your pinkie.

Wait so my spark plugs are gapped to .032 right now; if I bought this and kept the plugs gapped at .032 would that be bad?

I ran them with my plugs gapped at 0.028 for over a week. The coils ran fine and made a difference but then I got new plugs gapped to 0.040 and it made a even bigger difference.
I would just do both at once. Especially since new plugs are like 10$ max and take all of 2 mins to change.

[Wizard-of-OD]

An NGK plug with -11 added to the plug number, is factory gapped at .040", or 1.1mm.

0.044"

This is a good link to see all the NGK nomenclature.
http://www.ngksparkplugs.com/techinf...tnumberkey.pdf

[widgget]

added to my "gotta get" list.

[boy412]

My "gotta get" list is too damn long already...

Issam, when did you start development on these adapters?
