    Front Alignment Settings For Your Lowered B6 A4

    Guest-only advertisement. Register or Log In now!
    I have been getting a lot of requests lately to view and comment on alignment specs so to make things easier for myself I thought I would just write them down so I can then simply provide a Clicky click ® that contained all my comments.

    I can’t guarantee that these specs will work for you. I can tell you what works for me from 12 years of ownership, lots of tires and many different set ups. I am currently at 25” fender to ground front and rear with standard non-adjustable front control arms. I had 50k miles of very even tire wear out of my last set of Conti DWS. I will get the same or more out of my current set.

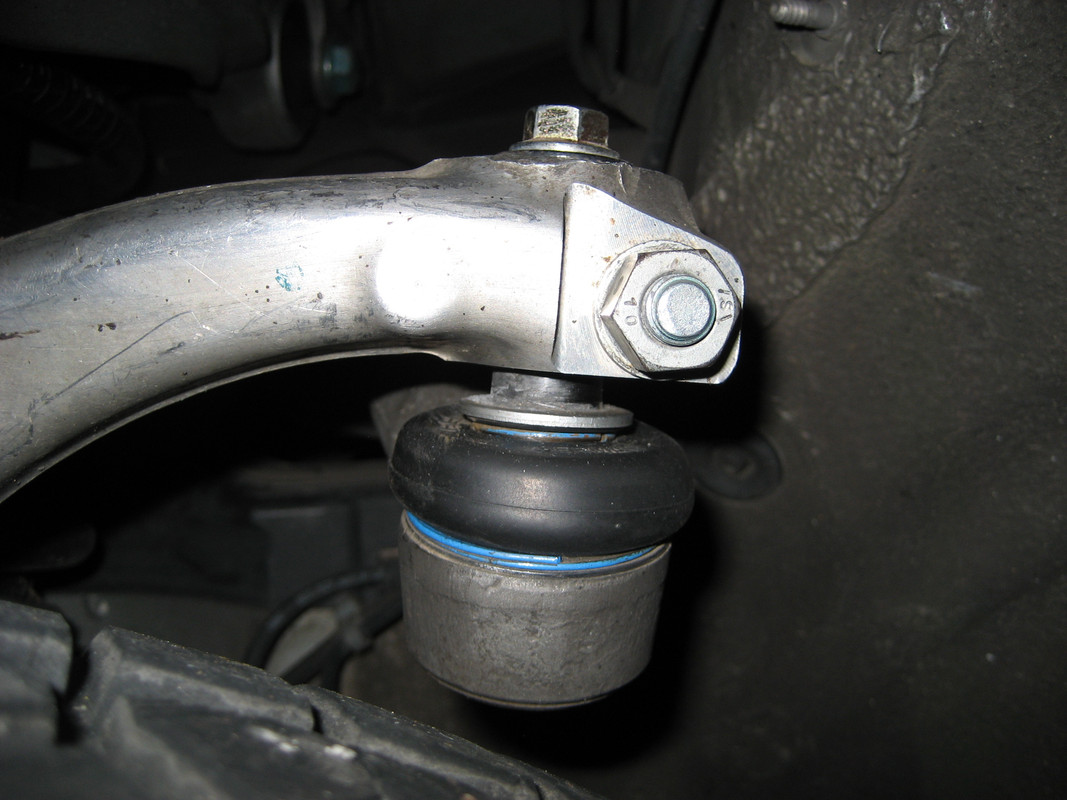

    The first step is to adjust your raised toe setting as far down as your outer tie rods will allow. Simply loosen the 16mm pinch bolt on the outer tie rod, back out the top 13mm adjustment bolt and push the tie rod shaft down as far as it will go. The pinch bolt goes through a groove in the shaft that limits the maximum amount of travel available. Tighten the pinch bolt up and snug the 13mm adjustment bolt. Done.

    [IMG][/IMG]

    The raised toe adjustment helps to bring the angle of the tie rod arm back closer to level and reduces the amount of tire scrubbing that will occur as the suspension rides up and down with normal driving. I have found this adjustment to be critical in reducing inner edge wear. I suggest that you make this adjustment yourself before going to the alignment shop. If you ask them to perform this adjustment they will probably look at you as if you had two heads.

    The next step is to make sure your camber is centered from side to side. Once you get much below the OEM sport height settings your camber will be out of spec. This really isn’t an issue as long as you get it reasonably centered. You can check this quite easily for yourself. All you need is a smooth flat surface and a framing square. Make sure the steering wheel is pointed straight ahead. Measure the difference between the top and bottom edge of your front wheels to the framing square and use an Angle Calculator to calculate the camber angle. If the camber is even side to side you are ready to go to the next step. If not you can center it yourself with the framing square and a few basic hand tools or you can have the alignment shop center it. Some great info here: Clicky click®

    Now on to the front toe settings. I have found that as close to 0° front toe as possible with a slight touch of toe-in works best. At exactly 0° total toe I found that the steering had a slight tendency to wander. I recommend around 2.5’ to 4’ minutes (.04°-.07° degrees) of toe per side for a total toe of 5’ to 8’ minutes (.08°-.13° degrees). If you are lucky you can get the alignment shop to work with you on this. Unfortunately a lot of shops are reluctant to intentionally set anything outside of the published specifications.

    But don’t despair. As long as the shop gets everything centered and you know your total toe setting you can fine tune it from there by yourself. Everything you need to know to adjust it yourself is contained in the later part of this DIY Clicky click ®

    The rear settings are much easier. Camber and toe are both adjustable in the rear. Just ask the shop to get the camber centered and in spec and set the toe-in toward the minimum spec and you should be good to go.

    And last but not least keep a close check on your tire pressures. DO NOT overinflate your tires. With the increased front camber the side walls need to be able to flex enough to keep from putting undue wear on the inner edge. I was able to confirm this by monitoring the tire temperatures across the face of the tires. I found that 34 psi was the best combination for decent handling and keeping the surface temperatures even across the face of the tread for my 235/45/18 tires.

    Cheers!
    Last edited by old guy; 03-08-2017 at 03:30 PM. Reason: It's toe not tow. Dummie...

  2. #2
    Veteran Member Four Rings Copen-cisco's Avatar
    Join Date
    Sep 06 2013
    AZ Member #
    122646
    My Garage
    B7 Audi A4 Avant+ B7 Sedan and '69 912
    Location
    Dublin, CA

    Nice write up! Thank you Fletcher
    Kristian

    l Audi A4 2007 Avant l 2.0T TIP l Custom Stage 2 tune l IE HPFP l 034 HFC l 034 TIP l Rev Snub mount l 034 motor mounts l ST Coilovers l RS4 rear sway bar l Milltek Cat-back Resonated l S4 Recaro l RNS-E MKII l 19" Peelers

  3. #3
    Veteran Member Four Rings evo_ski's Avatar
    Join Date
    Mar 15 2010
    AZ Member #
    56121
    Location
    Bothell
    Items for Sale

    I have been running this setup for about 2 years now with great results. Thanks again as always for fantastic information, great explanations, and easy to follow instructions!
    Costco 92 Octane Gas - MANN Air Filter - 235/35/19 Tires w/ 36 PSI (cold) Tire Pressure - Grey Plastic Valve Stem Caps - 0° Front Toe - Rotella T6 5W-40 - 2 OEM B6 Keys - 18x8" Spare - Coin & Pen Filled Center Console - Rain-X on all 8 windows & Napa Cold Temp Washer Fluid - Bosch Wiper Blades (Valeo wipers suck big time!) - S4 Trunk Latch - Craftsman Tire Pump w/ Automatic PSI Shutoff - Belly Pan Delete (Weight Savings) - 3D Printed Rear Warning Triangle latch - 174,000 Miles & Counting

  4. #4
    Veteran Member Four Rings A4 Quattro's Avatar
    Join Date
    Mar 07 2012
    AZ Member #
    89519
    My Garage
    Spiders, wheels, and a heat gun.
    Location
    Utah

    old guy is the man!
    Nic
    I was satisfied with my car until I joined this forum

    And I've been "ruining the car scene since 2015"

    Stalk me on Instagram:
    @nic.beesix

  5. #5
    Senior Member Four Rings Luxus Panzer's Avatar
    Join Date
    Apr 15 2014
    AZ Member #
    187873
    My Garage
    B6 A4 Avant, B4 90 Sprot Q, B4 90 FWD, 2014 VW Tiguan
    Location
    Ottawa/Gatineau Canada

    1st Clicky Click no work :(
    2004 A4 Avant Quattro. (H&R springs, S100 Nav unit, Neuspeed Cat back, Torque solutions Snub mount, Thor Skid Plate, APR Stage 1, 18" S4 Rims, 2X Podi / Oil Press / Oil Temp / Boost/VAC, Full LED interior, Backup Camera/Screen, Upgraded 2.0 Coil Packs, Vag-Com, B7 Center console/B7 Hand Brake, B7 Aero wiper arms B7 rear headreasts,APR Carbonio intake, Fan washer sprayers, rusty door bottoms, need new doors)
    2014 VW Tiguan. (bone stock)

  6. #6
    Veteran Member Four Rings old guy's Avatar
    Join Date
    Dec 28 2006
    AZ Member #
    14483
    My Garage
    2003 A4, 2009 CC VR6 Sport, 2013 A5 B8
    Location
    Western Maryland
    Items for Sale

    Quote Originally Posted by Luxus Panzer View Post
    1st Clicky Click no work :(
    LOL....Try it now!

  7. #7
    Veteran Member Four Rings old guy's Avatar
    Join Date
    Dec 28 2006
    AZ Member #
    14483
    My Garage
    2003 A4, 2009 CC VR6 Sport, 2013 A5 B8
    Location
    Western Maryland
    Items for Sale

    Added a great evo_ski link for centering the camber.

  8. #8
    Veteran Member Four Rings customa4's Avatar
    Join Date
    Apr 07 2011
    AZ Member #
    73592
    My Garage
    02 A4 1.8T CVT, 02 A4 1.8TQ 5spd, 92 Geo Prizm
    Location
    CT

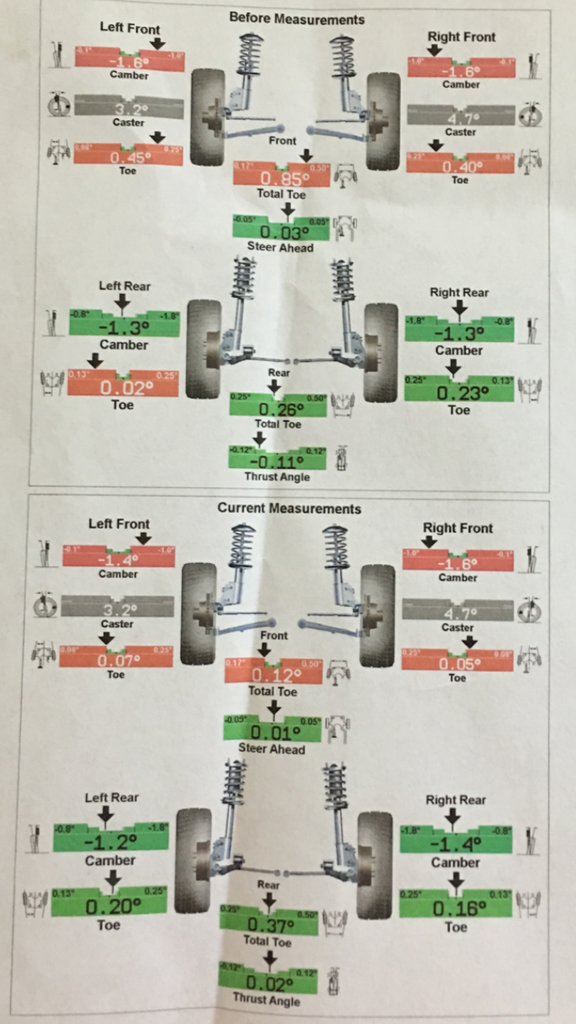

    How does my alignment look? I gave the alignment technician the text from this thread. He said he would try to get the specs that are mentioned here. When he brought the car out, he said he did the best he could because his boss was trying to get another car in. He told me to take the car back in the morning so he has more time to mess with it and they're not so busy.

    K&N-Milltek HFC-Magnaflow Catback-APR snub mount-ER Sport FMIC-Forge TIP-Forge DV-Podi-034 Motor Mounts-034 Rear Sway/End Links-STaSIS Street Sport Coils-Bentley Manual

  9. #9
    Veteran Member Four Rings old guy's Avatar
    Join Date
    Dec 28 2006
    AZ Member #
    14483
    My Garage
    2003 A4, 2009 CC VR6 Sport, 2013 A5 B8
    Location
    Western Maryland
    Items for Sale

    He did a pretty good job! What is your ride height?
    A4 Motoza tuned Frankenturbo F21L mixed flow turbo / Bosch 550's / 3" MAF / TyrolSport SMIC / FT High Flow Exhaust Manifold / 034 HFC / TT 2.5" DP / Borla Exhaust / Eibach ProKit Springs / Koni Yellows / H-Sport Sway Bars / TyrolSport Brake Stiffeners / HyperShift Short Shifter / Podi Boost Gauge
    A5 Mods to come: Little stuff so far. 20/25mm spacers / H&R OE Sport springs / 35% tint

  10. #10
    Veteran Member Four Rings customa4's Avatar
    Join Date
    Apr 07 2011
    AZ Member #
    73592
    My Garage
    02 A4 1.8T CVT, 02 A4 1.8TQ 5spd, 92 Geo Prizm
    Location
    CT

    Just about 25 front and rear.
    K&N-Milltek HFC-Magnaflow Catback-APR snub mount-ER Sport FMIC-Forge TIP-Forge DV-Podi-034 Motor Mounts-034 Rear Sway/End Links-STaSIS Street Sport Coils-Bentley Manual

  11. #11
    Veteran Member Four Rings old guy's Avatar
    Join Date
    Dec 28 2006
    AZ Member #
    14483
    My Garage
    2003 A4, 2009 CC VR6 Sport, 2013 A5 B8
    Location
    Western Maryland
    Items for Sale

    Quote Originally Posted by customa4 View Post
    Just about 25 front and rear.
    It should work fine. the camber isn't perfectly centered but I bet if he rechecked it with you in the drivers seat it would increase the left side camber a little. All in all it should provide some decent tire wear.

    You did adjust the raised toe on the outer tire rods all the way down before setting the toe-in, correct?
    A4 Motoza tuned Frankenturbo F21L mixed flow turbo / Bosch 550's / 3" MAF / TyrolSport SMIC / FT High Flow Exhaust Manifold / 034 HFC / TT 2.5" DP / Borla Exhaust / Eibach ProKit Springs / Koni Yellows / H-Sport Sway Bars / TyrolSport Brake Stiffeners / HyperShift Short Shifter / Podi Boost Gauge
    A5 Mods to come: Little stuff so far. 20/25mm spacers / H&R OE Sport springs / 35% tint

  12. #12
    Veteran Member Four Rings customa4's Avatar
    Join Date
    Apr 07 2011
    AZ Member #
    73592
    My Garage
    02 A4 1.8T CVT, 02 A4 1.8TQ 5spd, 92 Geo Prizm
    Location
    CT

    Great! I sure did.
    K&N-Milltek HFC-Magnaflow Catback-APR snub mount-ER Sport FMIC-Forge TIP-Forge DV-Podi-034 Motor Mounts-034 Rear Sway/End Links-STaSIS Street Sport Coils-Bentley Manual

  13. #13
    Active Member Two Rings daniel B6 1.8t's Avatar
    Join Date
    May 31 2016
    AZ Member #
    374089
    Location
    OC, CA

    How about 40 psi? And I need to get the adjustable control arms for this set up as well correct?...Are SPC good?... Thanks and this write is great due to the fact when installing new KONI struts I didn't know it would lowered the car by alot...

  14. #14
    Veteran Member Four Rings old guy's Avatar
    Join Date
    Dec 28 2006
    AZ Member #
    14483
    My Garage
    2003 A4, 2009 CC VR6 Sport, 2013 A5 B8
    Location
    Western Maryland
    Items for Sale

    Quote Originally Posted by daniel B6 1.8t View Post
    How about 40 psi? And I need to get the adjustable control arms for this set up as well correct?...Are SPC good?... Thanks and this write is great due to the fact when installing new KONI struts I didn't know it would lowered the car by alot...
    My fender to ground height is 25" and I get even wear without adjustable control arms. As long as you don't go a lot lower than that I really don't think ACA's are necessary for even wear. What's more important is the raised toe adjustment to reduce scrubbing as the suspension goes up and down, set toe-in to a bare minimum and don't overinflate your tires. I have confirmed this by taking temperature readings across the face of the tire at numerous different pressures. As the camber increases the tire pressure becomes more critical for wear. Higher pressures reduce the sidewall flex and will increase inner edge tire temperature and wear considerably. At 25 FTG I found 40 to be way too much.
    A4 Motoza tuned Frankenturbo F21L mixed flow turbo / Bosch 550's / 3" MAF / TyrolSport SMIC / FT High Flow Exhaust Manifold / 034 HFC / TT 2.5" DP / Borla Exhaust / Eibach ProKit Springs / Koni Yellows / H-Sport Sway Bars / TyrolSport Brake Stiffeners / HyperShift Short Shifter / Podi Boost Gauge
    A5 Mods to come: Little stuff so far. 20/25mm spacers / H&R OE Sport springs / 35% tint

  15. #15
    Active Member Two Rings daniel B6 1.8t's Avatar
    Join Date
    May 31 2016
    AZ Member #
    374089
    Location
    OC, CA

    Alright thanks for the info old guy, seems to work and it's riding just fine.

  16. #16
    Veteran Member Three Rings agentsmith988's Avatar
    Join Date
    Sep 15 2006
    AZ Member #
    11435
    Location
    Fry Sauce, UT

    Just tried to get Fletcher's specs at a nearby shop and they ended up not charging me because they couldn't get it. The guy at the counter told me that the tech said that every time he'd tighten stuff down it would pull everything out of whack and this was the best he could do.



    I maxed out the raised toe before heading in and they left that alone, so that's good. But I don't understand why they couldn't get it set. I've had the car set at another shop to 0.05/0.00 Toe with -1.3/-1.3 Camber (front) without issue in the past. The only change was the raised toe this time.

    Any ideas? I'm tempted to believe them because they didn't charge me, but I'm also tempted to just take it back to my old alignment shop.
