After 2 years of owning my first car, I have almost completed my first build. In addition to the turbo swap I had a bunch of little odds and ends that I wanted to do at the same time and ended up deciding to pull the engine. I figured doing each individual thing with the engine in the car would be more frustrating and time consuming than pulling the engine and having ample space to do them all at once.

We’ll start with the mods list:

Engine:
PSi Concepts TD05H-20G turbo
PSi Concepts T25 exhaust manifold
PSi Concepts downpipe
PSi Concepts oil lines
Custom coolant lines
Earl’s oil cooler with 6AN lines
ER Comp FMIC
ER power steering cooler
ID 725cc injectors
Maestro tune
Custom 2.5”->2.25” exhaust
Bosch Sidefire sparkplugs
42DD stealth catch can
Forge splitter valve set to full atmospheric(likely to change)
Custom intake with K&N filter

Suspension/Brakes/Drivetrain
Bilstein PSS9
RS4 sway bar
SPC adjustable CAs
WIlwood 4 piston 330mm fronts
Stasis 310mm rear
CM FX400 6 puck clutch and LWFW
USP Motorsports metal clutch slave
BBS RGRs 18x8
034 street engine and tranny mounts
034 snub mount

Electronics
Optima yellow top
“Big 3” wiring upgrade
Alpine INA-W900BT
Alpine PDX 4.100
Alpine SPX-17PRO (front)
Alpine SPX-177R (rear)
Podi dual setup – oil temp and boost
Custom V1 concealed display
Custom iPhone vent cradle
Custom fiberglass 10” subwoofer enclosure for trunk cubby(subwoofer & amp to come soon)

Cosmetic
S4 bixenons
USP doorblades
DIY brushed aluminum trim

I'm sure there's somthing I've forgotten but oh well... I started the engine portion of the build 2 months ago and finally got to drive it last night. Thanks to Dan @ RAI, the base tune he gave me already runs solid which was one of my biggest concerns starting this and he answered countless other questions. I wanted the car to be driveable from day 1 and last night’s test drive was flawless. Current tune is going to be at 20psi. Have never had a "fast" car and I want to get used to this power level before I up it. At that point I'll do internals and up the boost. Also, a huge thanks to my friend Emil(S4evr) for being in the garage with me every day wrenching and fabricating some parts for me. Only have iPhone pictures of the engine bay right now but some better ones are soon to come.

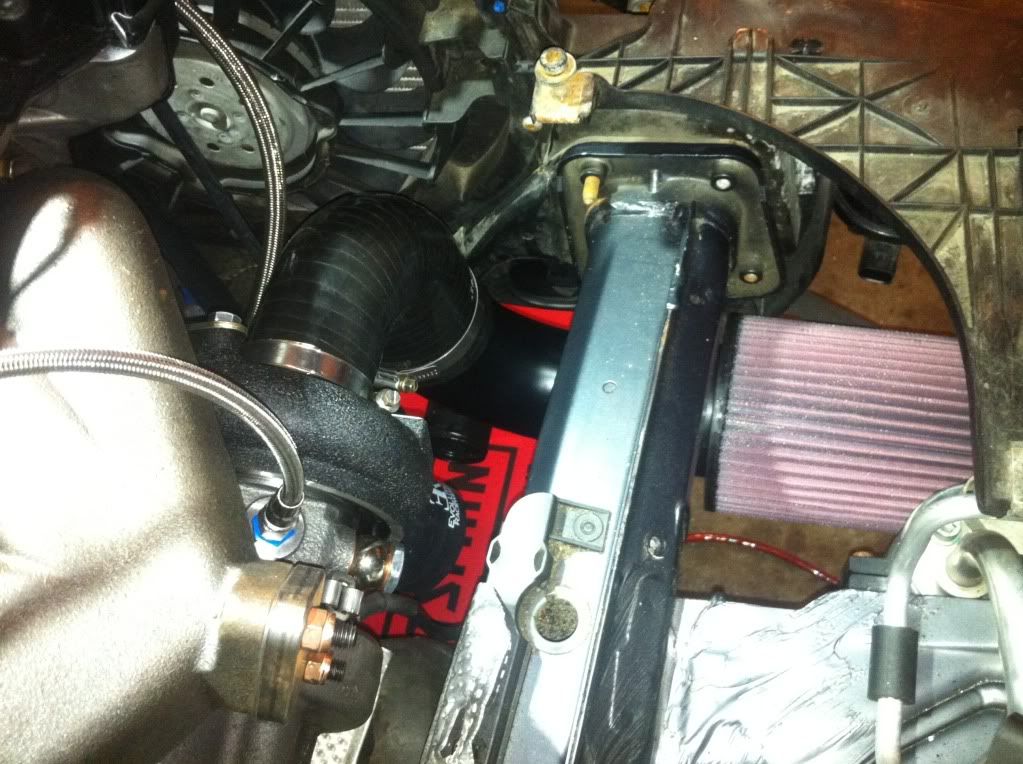

Intake setup:

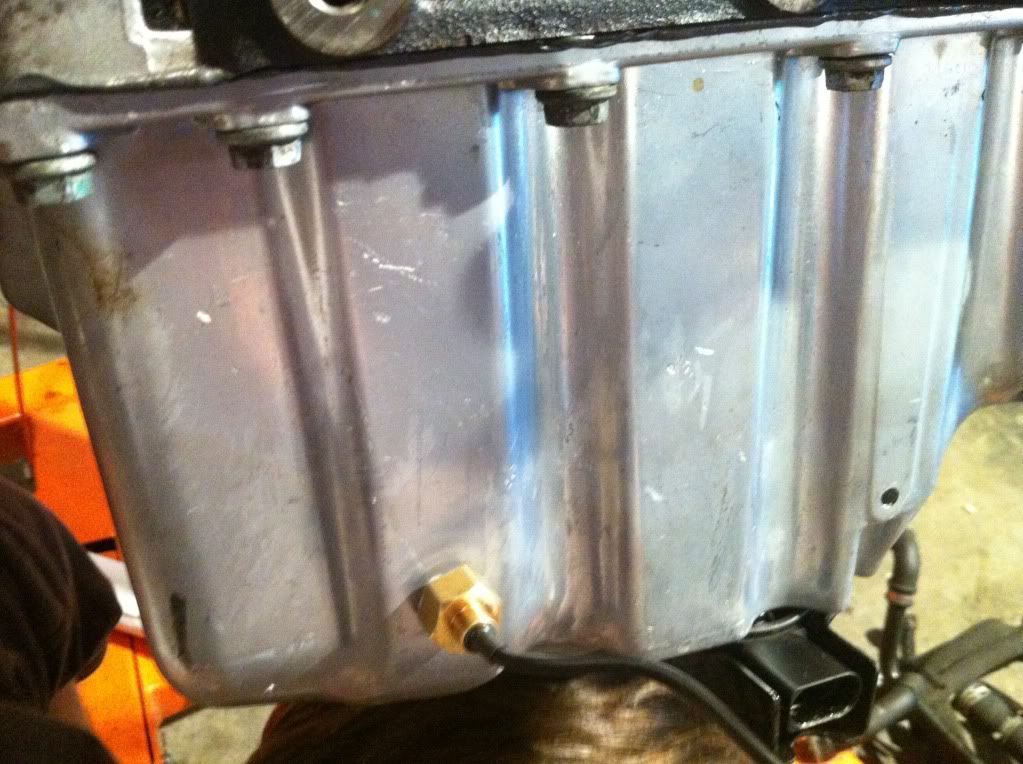

Got sick of the oil temp sender being in the oil drain bolt and ended up drilling and tapping my own location for it:

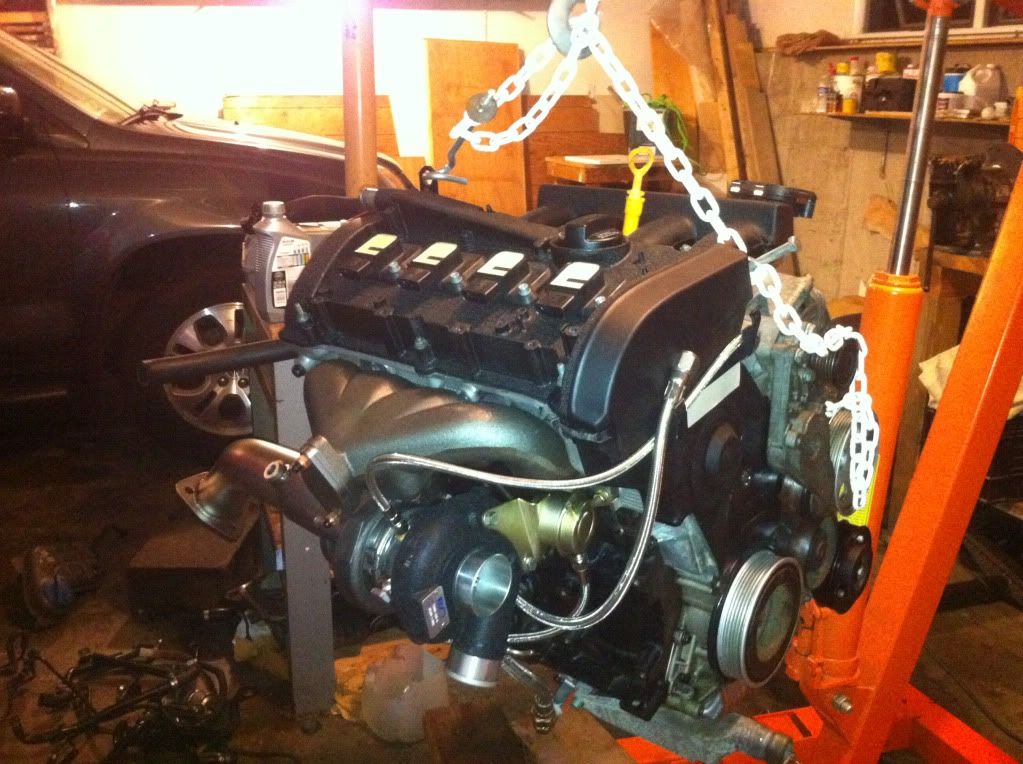

Almost ready to go back in(lines have been rearranged since):

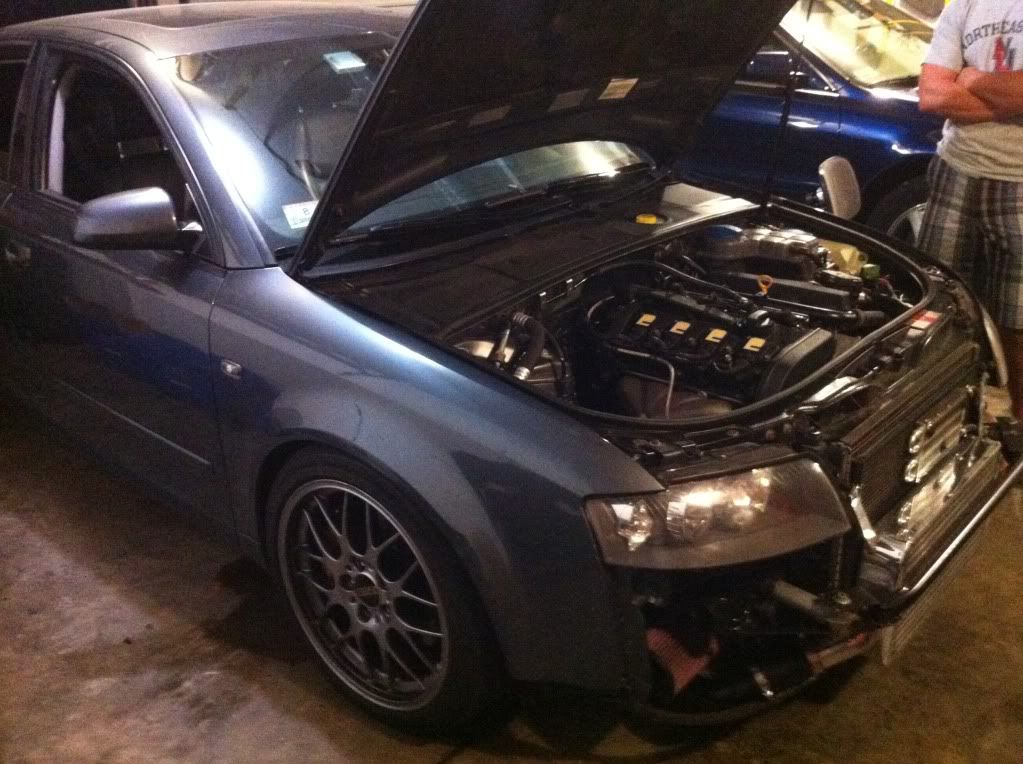

Cooling down after last night's test drive

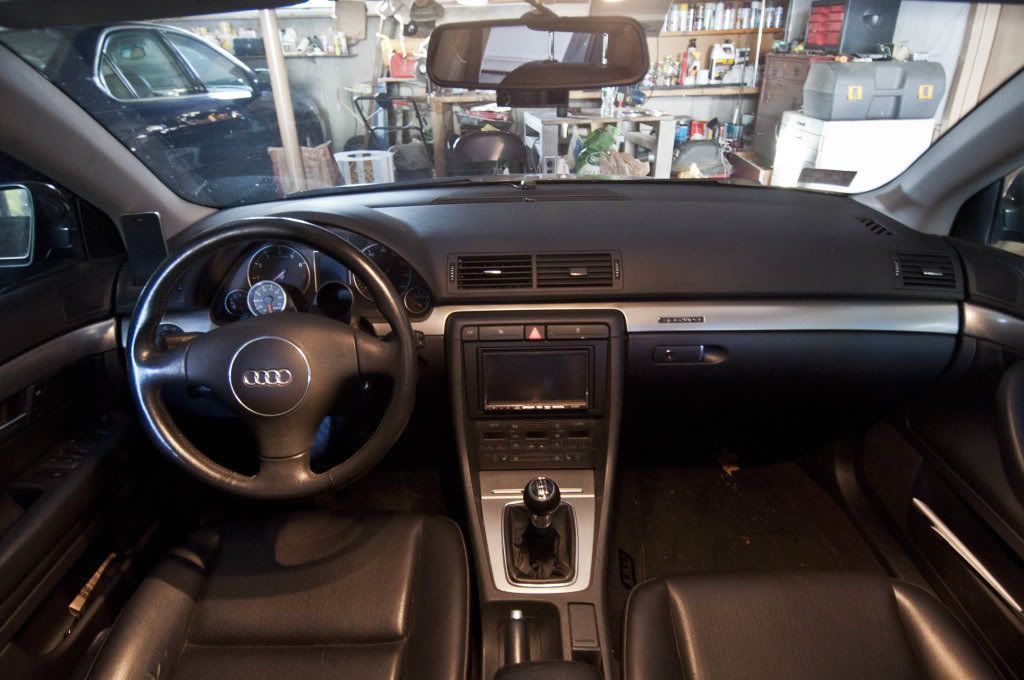

Interior. Have since put the oil temp gauge in the right pod that's empty in the pic.
