:: ECS Tuning :: NEW!! B8 A4 ECS Adjustable Short Shifter

[ECS Tuning-Audi]

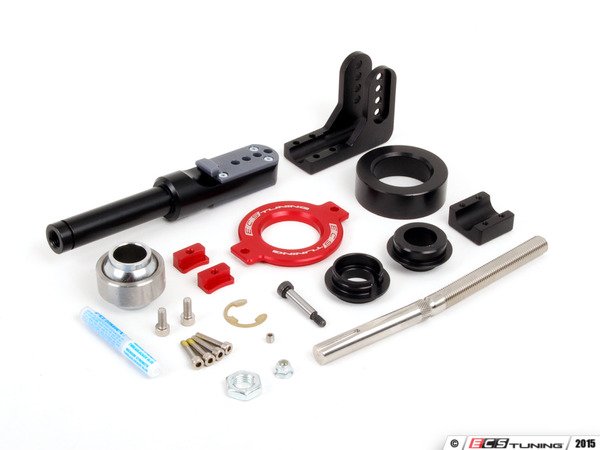

The latest stunning release by the expert engineers at ECS Tuning. The B8 A4 Adjustable Short Throw Shifter provides up to a staggering 43% throw reduction that is combined with a 75mm shift knob height adjustment range.

A gorgeous piece to look at in itself, the ECS shifter's beauty is surpassed only by its precise construction and advanced functionality.

Constructed primarily from billet 6061-T6 aluminum for structural strength and weight savings, the unit is designed to withstand the hardest of shifts and retain the use of your OE shift knob.


Short and Sweet

Click HERE to order or for more information


Fits:
Audi B8 A4 (2009+)

Be sure to check out our -----> Installation PDF <-----

Let me know if you have any questions.

Jason

[ibiswhite_2.0]

I'll wait for it to go on sale. Good looking piece non the less.

[ECS Tuning-Audi]

I'll wait for it to go on sale. Good looking piece non the less.

Thanks for the words! Likely this will only be on sale during the holiday's which is quite a while away. FYI

Jason

[ibiswhite_2.0]

Thanks for the words! Likely this will only be on sale during the holiday's which is quite a while away. FYI

Jason

No problem. I am a previous mkIV owner and overshot my budget when I bought this B8. I have to wait for the holidays just to mod it because I don't have the finances. I just think of it as motivation to better myself and get a better job.

I'm not complaining about your pricing FYI. I know you have a lot of $ tied up in the design, materials, possible patent?, employees, rent, bla bla bla. I'm just a broke mofo is all haha. I like seeing 'Free Shipping' on it. +1 for you there too my friend.

[Schoff]

Such a shame... I would love this but won't risk the TD1.

[ECS Tuning-Audi]

No problem. I am a previous mkIV owner and overshot my budget when I bought this B8. I have to wait for the holidays just to mod it because I don't have the finances. I just think of it as motivation to better myself and get a better job.

I'm not complaining about your pricing FYI. I know you have a lot of $ tied up in the design, materials, possible patent?, employees, rent, bla bla bla. I'm just a broke mofo is all haha. I like seeing 'Free Shipping' on it. +1 for you there too my friend.

No worries! Was just giving you the heads up as we typically only list items on sale once a year.

Such a shame... I would love this but won't risk the TD1.

As far as I know I do not believe a short shifter would cause a TD1 as there is no electronics involved. So you should be all clear!

Jason

[booost]

TD1 from a SS???

P.S. Looks good ECS!

[Dub_prime]

It expressly states in the service bulletins for td1 that short shifters void the power train warranty.

[sidkneeeeee]

Will install a Short shifter once my extended warranty expires next year. The built quality looks good just like the Eurocode one.

I might pick up one during black Fridays depending how much a price difference is compared to the Eurocode one.

Someone review it ASAP! Lol.

[ibiswhite_2.0]

No worries! Was just giving you the heads up as we typically only list items on sale once a year.



As far as I know I do not believe a short shifter would cause a TD1 as there is no electronics involved. So you should be all clear!

Jason

TD1 from a SS???

P.S. Looks good ECS!

I was told by the service department that a SS will in fact void your power train warranty. I'm learning that just about everything besides farting in your Audi will void the warranty on these things. I guess the new clause is stating that depending on what you ate previously to your fart, you may void the warranty though.

[ECS Tuning-Audi]

It expressly states in the service bulletins for td1 that short shifters void the power train warranty.

I was told by the service department that a SS will in fact void your power train warranty. I'm learning that just about everything besides farting in your Audi will void the warranty on these things. I guess the new clause is stating that depending on what you ate previously to your fart, you may void the warranty though.

The TD1 code would need to be manual entered by the tech. So simply installing this will not trigger the code. As with any mods to your Audi under warranty, you should always check with your dealership first.

Not to mention this shifter is adjustable. Once it's installed you can adjust it to be very close to how it would look/operate normally with out much complication prior to taking your vehicle in. Then readjusting it once it returns from service.

Jason

[ibiswhite_2.0]

Jason, How simple is the adjusment? can it be done from inside the car? or underneath? anything to remove to make the adjustment?

[Schoff]

Not to mention this shifter is adjustable. Once it's installed you can adjust it to be very close to how it would look/operate normally with out much complication prior to taking your vehicle in. Then readjusting it once it returns from service.

Jason

That's a great point. Unless the removed the boot they would probably not even notice...

As asked above -- how simple is the adjustment?

[bermudakid]

Nice!!!!!! Waiting for a review!

[eirebob]

As I already have the old Strat SS, and have other items on my mod agenda ( including ECS spacers ), I'm unlikely to indulge in this. But I did read thru the install instructions ... my compliments to whomever at ECS prepared them. Very comprehensive.

[ECS Tuning-Audi]

That's a great point. Unless the removed the boot they would probably not even notice...

As asked above -- how simple is the adjustment?

Which adjustment are you referring to? Both are rather simple. Height of the shifter can be adjusted while the shifter is still in the vehicle and spinning the shifter shaft up or down. The throw can be adjusted from underneath by placing the locking bolt in 1 of the 4 hole locations.

As I already have the old Strat SS, and have other items on my mod agenda ( including ECS spacers ), I'm unlikely to indulge in this. But I did read thru the install instructions ... my compliments to whomever at ECS prepared them. Very comprehensive.

Appreciate the words!

Jason

[ECS Tuning-Audi]

Still in stock ready to ship!

• 43% reduction in throw
• FOUR adjustment settings

• Nylatron NSM shifter plates for superior wear and noise resistance over Delrin blends and even brass
• Nylatron offers a friction level 2.7 times lower in comparison to brass, offering superior wear and noise resistance that makes it an ideal material for slide plate applications to extend part life

• 304 Stainless steel shift rod
• 75mm of shift knob height adjustability
• Retains OE shift knob

• Spherical 440c Stainless steel, self-lubricating, precision ground, heat treated, PTFE lined shifter bearing
• Maintenance-free

ECS Tuning's Adjustable Short Throw Shifters are engineered, manufactured, and assembled in the USA. You won't find a better combination on the market!

Jason

[ECS Tuning-Audi]

Happy St Paddy's day!



Jason

[ECS Tuning-Audi]

Be sure to check out our easy to follow installation PDF with photos!



Jason

[Dub_prime]

Does this do anything for side to side throws?

[ECS Tuning-Audi]

Does this do anything for side to side throws?

It only effects front to back throw. The distance side to side between gears will remain the same.

Jason

[ECS Tuning-Audi]

In Stock ready to ship!



Jason

[ECS Tuning-Audi]

MMMMM... Nylatron

Jason

[ECS Tuning-Audi]

Still in stock!

Jason

[bermudakid]

Any reviews / opinions yet?

[ECS Tuning-Audi]

Any reviews / opinions yet?

See the links below..

http://www.audizine.com/forum/showth...+Short+shifter

http://www.audizine.com/forum/showth...+Short+shifter

Quite a few reviews in the thread below as well.

http://www.audizine.com/forum/showth...+Short+shifter

Jason

[inv3rtig0]

Install was not too difficult, took a total of 4 hours, 1 of those just being going back under to adjust until I was happy. Getting the exhaust heat shield completely out of the way is basically impossible, so maneuvering my hands/wrench in the right spot was a pain while lying on the floor. A lift or even a nice tall floor jack would have given much better access. Otherwise it was quite straightforward and instructions are thorough.

It did take me 3 or 4 tries to get the adjustment dialed in, but it's basically perfect now. Very small adjustments (talking about the bottom piece that connects to the shift linkage) make a big difference. Go 1mm at a time.

I went as aggressive with the settings as I could, bottom hole for shortest throw and threaded the shifter rod down pretty much all the way down. Very glad I did, it feels great, significantly shorter than stock, and still in a perfectly comfortable position. I was expecting some drawback, like stiffer shifts or something, but I can't say there is. Therefore if you're doing this mod, I'd recommend the shortest throw setting; you bought the thing for that purpose, might as well get everything out of it.

Only have one test drive under my belt so far, it's a huge improvement and easily the most fun mod yet. It just feels so good! I've had a number of other cars that I put short throw shifters on, it's always been one of my favorite mods, and this one is the best in my experience all around.

[ECS Tuning-Audi]

Thanks for the review and the the order! Glad to hear you are enjoying it!

Jason

[blbroo]

Install was not too difficult, took a total of 4 hours, 1 of those just being going back under to adjust until I was happy. Getting the exhaust heat shield completely out of the way is basically impossible, so maneuvering my hands/wrench in the right spot was a pain while lying on the floor. A lift or even a nice tall floor jack would have given much better access. Otherwise it was quite straightforward and instructions are thorough.

It did take me 3 or 4 tries to get the adjustment dialed in, but it's basically perfect now. Very small adjustments (talking about the bottom piece that connects to the shift linkage) make a big difference. Go 1mm at a time.

I went as aggressive with the settings as I could, bottom hole for shortest throw and threaded the shifter rod down pretty much all the way down. Very glad I did, it feels great, significantly shorter than stock, and still in a perfectly comfortable position. I was expecting some drawback, like stiffer shifts or something, but I can't say there is. Therefore if you're doing this mod, I'd recommend the shortest throw setting; you bought the thing for that purpose, might as well get everything out of it.

Only have one test drive under my belt so far, it's a huge improvement and easily the most fun mod yet. It just feels so good! I've had a number of other cars that I put short throw shifters on, it's always been one of my favorite mods, and this one is the best in my experience all around.

I agree with this almost 100%. My shifts are a little stiffer than stock was, but going shorter loses leverage, so it should be expected.

That "easy" on the install directions is misleading... For a normal owner, doing this on their back with jack stands, it's a bit of a pain. Well worth the frustration though. The shifter now feels like it belongs in a german luxury car rather than a 10 year old VW in Mexico.

[Party_Marty]

I agree with this almost 100%. My shifts are a little stiffer than stock was, but going shorter loses leverage, so it should be expected.

That "easy" on the install directions is misleading... For a normal owner, doing this on their back with jack stands, it's a bit of a pain. Well worth the frustration though. The shifter now feels like it belongs in a german luxury car rather than a 10 year old VW in Mexico.

hahaha I want my car to feel luxurious!!

[mishonio]

Is there an installation video? What replacement shift knob do you recommend?


Sent from my iPhone using Tapatalk

[ECS Tuning-Audi]

Is there an installation video? What replacement shift knob do you recommend?


Sent from my iPhone using Tapatalk

Not at this time, but we do have a pdf on the site. As for knob stock is great with our shifter, guys also really like the BFI knobs.

-James

[mishonio]

Thanks. Do you have installers in the bay area and how much do they charge?
Based on your PDF installation is pretty straightforward, but unfortunately I don't have a garage and if I jack up the car I risk a fine from the HOA :(

[ECS Tuning-Audi]

Thanks. Do you have installers in the bay area and how much do they charge?
Based on your PDF installation is pretty straightforward, but unfortunately I don't have a garage and if I jack up the car I risk a fine from the HOA :(

Not at this time bud, sorry.

-James
