Show me your engine bay.

[fred2ka4]

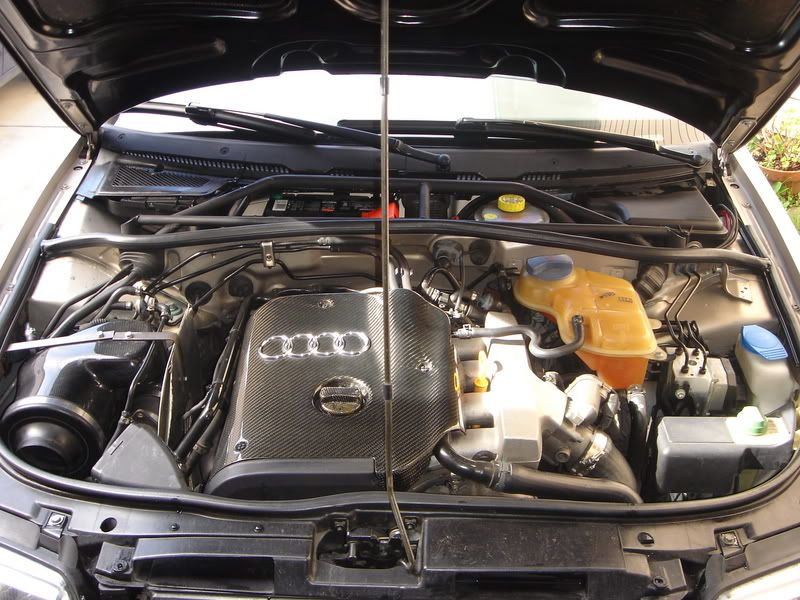

Well we have a "show me your fmic" thread and a "show me your wheels" thread and so on. But I haven't seen this one yet so I am going to start it.

Show me your engine bay. I have seen a lot of different turbo and intake setups and various little differences that some ceative people have come up with so lets see those shiney or stealth or whatever engine bays and I'll start it off with mine.

Make sure to list any special or custom items for those of us who are less observant.

[recognize408]

subscribed. Lets see that goosh.

[Jereme]

this is gonna be a GOODD one.

[offroader1006]

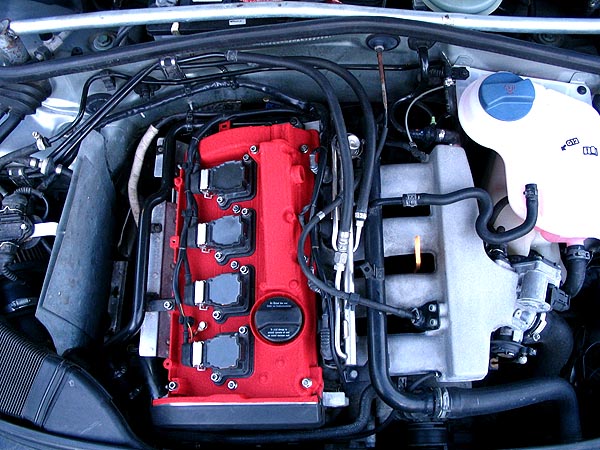

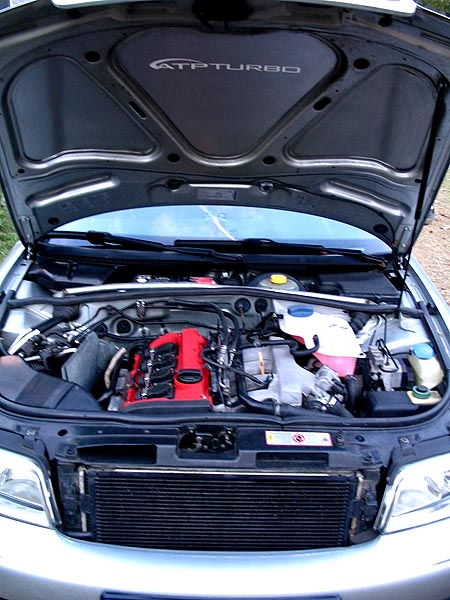

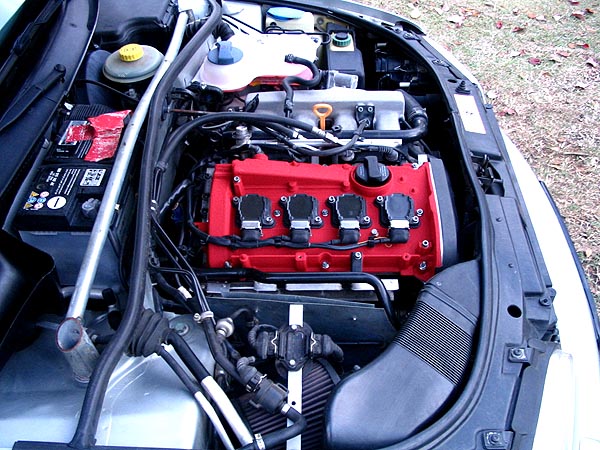

the red tape was mandatory for the SCCA race. i just leave it on instead of re applying every race.

[ny02s4]

anyone have a fully polished intake manifold out there?? that would be some nice bling-bling under the hood

[ExpLlclT]

from awhile ago take some new ones soon

[AudiRacerS4]

^^ thats fucking sick

[onemoremile]

^^ I'm doing the wrinkle red valve cover and an intake manifold to match later this week. Your valve cover is beautiful.










That fancy new red valve cover and IM will be visible through the new hood.

[urS4]

[Jereme]

^^^^^damnnn that'll happen

[ExpLlclT]

lol ^ speak the truth thats got more chrome than a 26 inch rim

[4ringAR]

Make sure to list any special or custom items for those of us who are less observant.

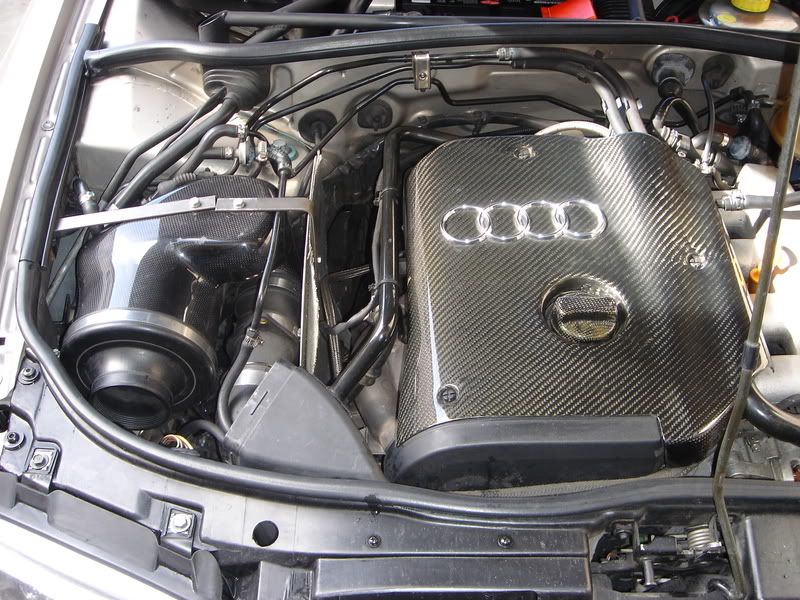

that c/f engine cover looks sick, you carbon fiber whore.

btw, what type of intake is that?

[ExpLlclT]

^^ thats fucking sick

thank you sir ill take better ones soon i have new headlights now and i put armoral on my engine covers so it blings

[KLEEMO]

Wow love the see through bonnet look!!! what is the hood made out of???

[urS4]

Its all polished aluminum. No CHROME!!!

[4ringAR]

Wow love the see through bonnet look!!! what is the hood made out of???

its a photoshop. you take a picture of the car(on a tripod) with the hood closed, and then pop the hood and take a photo from the same place. upload the photos, open in photoshop, combine, and if you want you can erase the actual hood in the open photo(as explicit did)

[k0mpresd]

most recent shot ive got

[offroader1006]

do the zipties on the timing belt work like a baseball card on the bike spokes??

[audiness]

Wow love the see through bonnet look!!! what is the hood made out of???

i think its made out of "photoshop"

[fred2ka4]

that c/f engine cover looks sick, you carbon fiber whore.

btw, what type of intake is that?

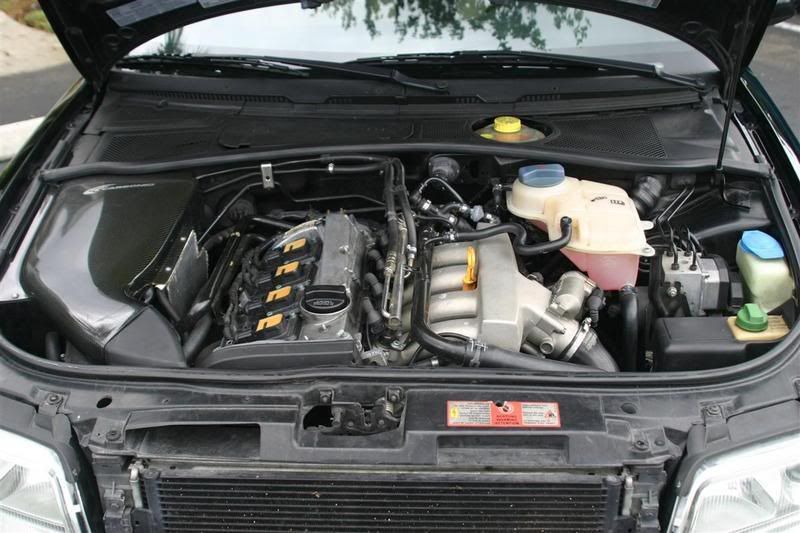

It's a Carbonio V1 mounted sideways, and as for the carbon fiber whore remark .............








Thanks .........

[CaSp3r9]

^^^ hahahaha

[94jedi]

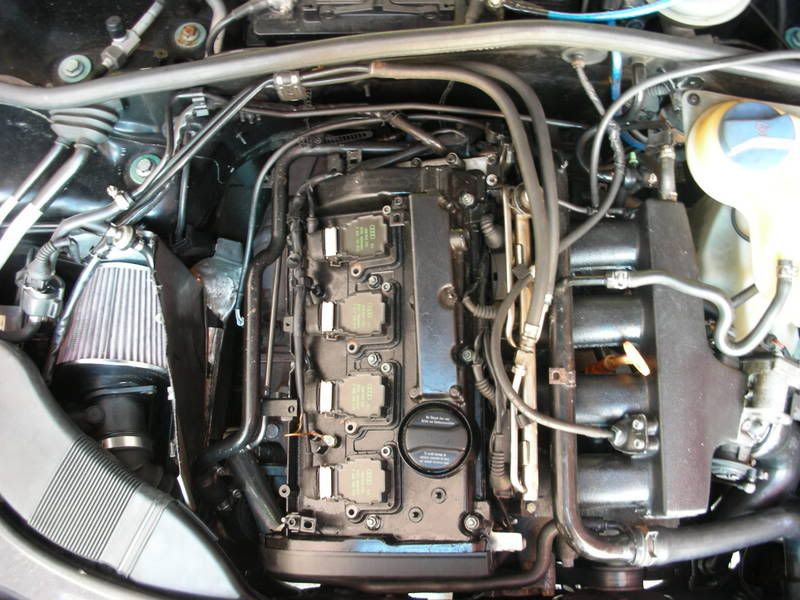

My setup...homebrew, nothing special. Valve cover shield courtesy of Joseph a.k.a. audisnapr. I think I'm going to do a red crinkle valve cover like offroader then something cool (don't know what yet) with the VC shield....
slightly outdate pics....

[sean1.8t]

URS4 - that S4 engine bay is tits!!

how much power are you running?

[onemoremile]

Can you tell us about this intake manifold?

[fred2ka4]

Can you tell us about this intake manifold?

I was about to ask the same question.

[TQMB5]

wrinkle black mani and valve cover for me... i think

[Rosati]

Black IM and VC Not too special w/ just a K04 and the shield isnt as thin as it looks

[Militant-Grunt]

the red tape was mandatory for the SCCA race. i just leave it on instead of re applying every race.

Wow awesome. What did you use to paint the valve cover? I was thinking Caliper paint, but the stuff you have on your engine looks high quality.

[speedydragon]

damn jedi, that turbo looks sooo small compared to my ko3 :P

[urS4]

URS4 - that S4 engine bay is tits!!

how much power are you running?

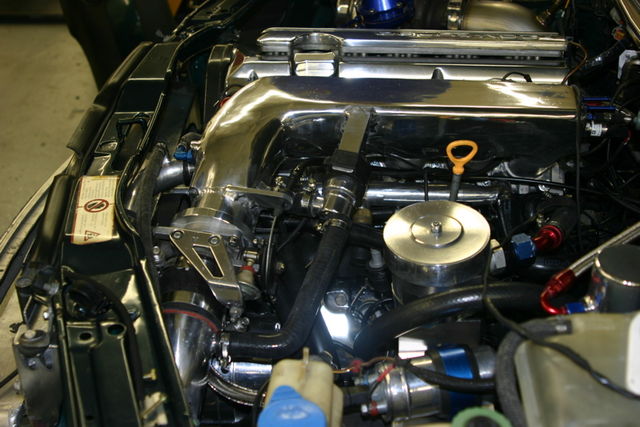

That motor, which is a 2.5 short stroker, and used a so so tubular exhaust manifold and GT35R put down 500 hp and 560 tq ATW corrected here at Denver's altitude. A failed Bosch sparkplug took out the head, pistonn and the turbo. The new motor has a Saridea tubular manifold, Big Cam Big Valve Head, and much larger ITS Ceramic ball bearing F271 turbo should be good for 600+ hp. I am using AEM standalone EMS and RC Engineering 1000cc injectors.

[urS4]

[QUOTE=onemoremile;1468213]Can you tell us about this intake manifold?
[/

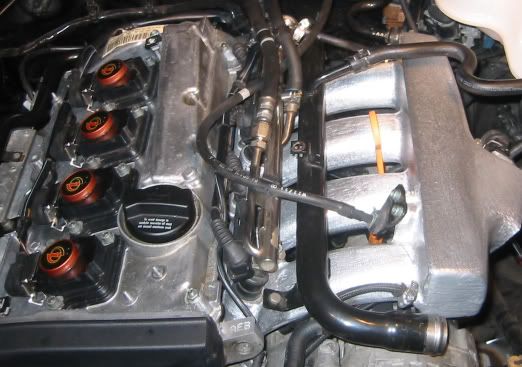

You can see on this closeup that the cast IM has been added on to. This is an 034 Motorsport manifold that is used in a variety of applications. I had to lengthen the TB mounting so that it would clear an engine component. 034 does a lot with the older Audi community but they also have many offerings for the newer ones. I'll probably use them when I source a larger turbo for my A4.

QUOTE]

[4ringAR]

man, youve got to bring that beast to some of our get togethers here in Denver[see www.metrodubs.com]
we are currently producing a movie about euros in colorado and im sure the guys that are in charge would LOVE to get some footage of your car! [www.studded-movie.com]
cheers!

[UneekTT]

I know I dont have an A$, but I thought I would play along anyway - lol

[Don Supreme]

[QUOTE=urS4;1468930]

Can you tell us about this intake manifold?
[/

You can see on this closeup that the cast IM has been added on to. This is an 034 Motorsport manifold that is used in a variety of applications. I had to lengthen the TB mounting so that it would clear an engine component. 034 does a lot with the older Audi community but they also have many offerings for the newer ones. I'll probably use them when I source a larger turbo for my A4.

QUOTE]

Does that car actually work? It looks too pretty to actually do anything *LOL* hahah.

[Don Supreme]

Work in progress

[johnnybravoa4]

there is mine.. nothing special.. cant see the turbo gt28rs, and all i have is the carbonio v1.. which I think the fitment is horible

[mike-2ptzero]

That motor, which is a 2.5 short stroker, and used a so so tubular exhaust manifold and GT35R put down 500 hp and 560 tq ATW corrected here at Denver's altitude. A failed Bosch sparkplug took out the head, pistonn and the turbo. The new motor has a Saridea tubular manifold, Big Cam Big Valve Head, and much larger ITS Ceramic ball bearing F271 turbo should be good for 600+ hp. I am using AEM standalone EMS and RC Engineering 1000cc injectors.

Did you say they used a SAE correction for your #'s? Did they use the standard corrections on their dyno or did they adjust for a turbo setup?

[Don Supreme]

^ and What do you mean by ATW are you referring to the ATW engine code?

[urS4]

Did you say they used a SAE correction for your #'s? Did they use the standard corrections on their dyno or did they adjust for a turbo setup?

The dynos here in the Denver area use the standard SAE correction for altitude and ambient conditions. I think we've talked before about turbos and BPVs on AW.

[urS4]

^ and What do you mean by ATW are you referring to the ATW engine code?

ATW=At the Wheels, as in Horsepower.
