Possible alternator failure?

[VeNoMS4]

I was at a drive through, windows stopped, AC stopped, and CEL light came on, airbags, ESC, electric assist steering, turned off. Turned off the car And everything worked but then after a short drive, everything acted up again

codes:

OBD2 - confirmed:
U0415 - Invalid Data Received From Anti-Lock Brake System (ABS) Control Module
P12A4

OBD2 - pending:
U0415 - Invalid Data Received From Anti-Lock Brake System (ABS) Control Module
P12A4

OBD2 - permanent:
U0415 - Invalid Data Received From Anti-Lock Brake System (ABS) Control Module
P12A4

CAN network gateway:
02252 - Generator
00532 - Supply Voltage B+

Ignition authorization:
00447 - Function Limitation due to Voltage to High
01330 - Central Control Module for Central Convenience (J393)

Central electronics:
00447 - Function Limitation due to Voltage to High
00532 - Supply Voltage B+

Body/convenience system:
00532 - Supply Voltage B+

Driver's door:
00532 - Supply Voltage B+

Front passenger's door:
00532 - Supply Voltage B+

Rear left door:
00532 - Supply Voltage B+

Rear right door:
00532 - Supply Voltage B+

Heater & air conditioning:
00532 - Supply Voltage B+

Steering wheel:
00447 - Function Limitation due to Voltage to High
00532 - Supply Voltage B+

Back-up camera:
00447 - Function Limitation due to Voltage to High
00532 - Supply Voltage B+

Instrument cluster:
00532 - Supply Voltage B+

Parking brake:
01321 - Control Module for Airbags (J234)
00532 - Supply Voltage B+

Parking/steering assist:
00532 - Supply Voltage B+
00447 - Function Limitation due to Voltage to High

Airbags:
13636096
9483520

Engine:
06619
06236
06233
06550

Transmission:
08007
08015

Headlight aiming:
00532 - Supply Voltage B+

Infotainment system:
00532 - Supply Voltage B+
03367 - Supply Voltage Display Unit


Obtained with Carista 3.4.2 for Android.
Download app: https://play.google.com/store/apps/d...rizmos.carista
Facebook: https://www.facebook.com/caristaapp


Sent from my Nexus 6P using Tapatalk

[VeNoMS4]

Still no answer? This is unusual for this community

Sent from my Nexus 6P using Tapatalk

[chrisucf99]

Maybe a bad battery, or bad battery ground. Go to an auto parts store (or bring the battery in) and have them test your battery to rule it out.

[VeNoMS4]

Maybe a bad battery, or bad battery ground. Go to an auto parts store (or bring the battery in) and have them test your battery to rule it out.

if it really is a bad battery, does our car really have a self preservation mode of sorts? turns off everything but the engine. Thats amazing lol

[chrisucf99]

I'm thinking your battery voltage is too high or too low. Check it with a volt meter.

[osspasha]

if it really is a bad battery, does our car really have a self preservation mode of sorts? turns off everything but the engine. Thats amazing lol

When I bought my car CPO, my dash froze and everything stopped working. Turned off the car and back on same issue, the car can drive tho. took it back to the dealer and the battery was replaced under warranty. everything is good after that.

they typically don't replace batteries under warranty, however I just bought it CPO and after a yelling match they caved in.

The car does have a self preservation mode tho.

no check engine came on for me tho

[VeNoMS4]

When I bought my car CPO, my dash froze and everything stopped working. Turned off the car and back on same issue, the car can drive tho. took it back to the dealer and the battery was replaced under warranty. everything is good after that.

they typically don't replace batteries under warranty, however I just bought it CPO and after a yelling match they caved in.

The car does have a self preservation mode tho.

no check engine came on for me tho

interesting. My car is at the dealership right now. Let's see what they come back with. how much would a battery for this car run anyway?

[Wreckm]

This happens to my car. After i put a new battery in but didn't program it into VAG

[TexasDfwS4]

interesting. My car is at the dealership right now. Let's see what they come back with. how much would a battery for this car run anyway?

Audi Price of others big difference. Interstate battery is good.

[gdawg'05a4]

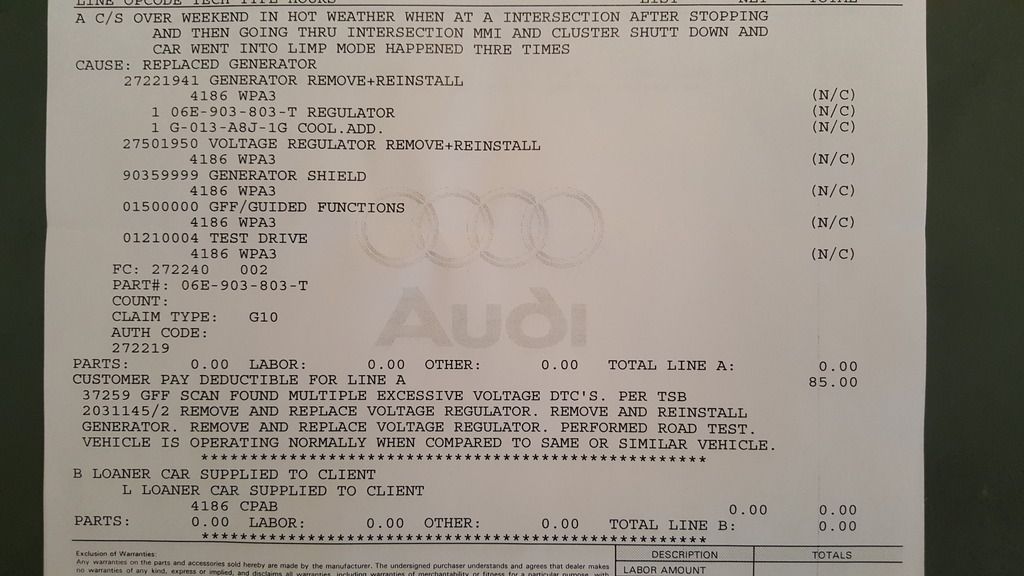

Sounds like the issue I had with over voltage. The dealer replaced the voltage regulator. There's actually a TSB for this, 2031145/2. It seems to be a common enough issue to issue a TSB and the same voltage regulator is used across most of the model line (A4, A5, A6, A7, Q5, Q7). Interestingly enough it doesn't explicitly list the S4 but the symptoms are the exactly the same. Maybe they don't list the 'S' variants and just fall under the 'A' line. Here's the repair order:



So far it hasn't reoccurred. Here's the TSB: http://www.esghotwire.com/bulletins/...TC_Present.pdf

[VeNoMS4]

Sounds like the issue I had with over voltage. The dealer replaced the voltage regulator. There's actually a TSB for this, 2031145/2. It seems to be a common enough issue to issue a TSB and the same voltage regulator is used across most of the model line (A4, A5, A6, A7, Q5, Q7). Interestingly enough it doesn't explicitly list the S4 but the symptoms are the exactly the same. Maybe they don't list the 'S' variants and just fall under the 'A' line. Here's the repair order:



So far it hasn't reoccurred. Here's the TSB: http://www.esghotwire.com/bulletins/...TC_Present.pdf

link takes me no where but thanks for the info

[gdawg'05a4]

No problem. I fixed the link: http://www.esghotwire.com/bulletins/...TC_Present.pdf

[VeNoMS4]

So the dealership came back and said:

1) i needed a new battery and needs to be programmed ($370)... i didnt know our batteries needed to be programmed??
2) ECM needs to get reflashed ($305)... there goes the stage 1 tune. They are saying that stage 1 tune could be one of the root causes which i find hard to believe.
3) I need 3 relays replaced and reflashed ($550)

all in all, im out $1225...

[whiped]

Nah, screw the dealer.

1. You can do it yourself with VCDS. There is a thread in the A4 section.
2. No, don't do it. They cannot force you nor is it worth it.
3. Replaced and reflashed for relays is likely BS. They should be pretty easily serviceable yourself.

Oh and FWIW, yes the car does have a self-preservation mode if you have some parasitic loss with the car off. It is a different code than all of yours though. (I get it sometimes with my dashcam if I leave my car parked for a few days)

[VeNoMS4]

Nah, screw the dealer.

1. You can do it yourself with VCDS. There is a thread in the A4 section.
2. No, don't do it. They cannot force you nor is it worth it.
3. Replaced and reflashed for relays is likely BS. They should be pretty easily serviceable yourself.

Oh and FWIW, yes the car does have a self-preservation mode if you have some parasitic loss with the car off. It is a different code than all of yours though. (I get it sometimes with my dashcam if I leave my car parked for a few days)

1) dont have VCDS nor do i know anyone that does unfortunately.... need to buy rosstech
2) guess i wont do this
3) hoping it gets covered by extended warranty..

[whiped]

You might not have much of a choice then.

Regardless, I wouldn't do the ECM update. Here is a thread on it: http://www.audizine.com/forum/showth...ll-2016-09-21/

[TexasDfwS4]

I use to think you needed to vagcom the battery but I was corrected on this forum so just by a battery from Interstate or Autozone and it will code after a while, so I've been told.

[VeNoMS4]

yea.. so far. I'm just doing the battery and the relays (warranty wont cover). I declined the ECM reflash.. dealership said i might have issues down the line.

stealership wanted $60/relay... i found that Audi NA themselves only charges $29.95/relay. If you dont do even the smallest amount of research, the dealership will empty your wallet

[14S4GWM]

I remember reading some things about not coding the battery unless the car goes into self preservation mode. The computer won't know you put a new battery in and will do the same thing it's doing now.

[TexasDfwS4]

This might be the self preservation mode.

[osspasha]

yes they had to reprogram my battery, they quoted my ~$600 CAD initially, but i forced them to replace it under CPO inspection.

[VeNoMS4]

Like most of you said it was the voltage regulator that was the issue. I took it to another Audi dealership that works on a lot more S and RS cars. The pricks at the previous dealership changed out my relays and battery instead of regulator. Now granted my extended warranty covered me for the regulator, I still paid 500 for the relays and programming. I've been yelling at them since because I just paid for something I might have not even needed because of their sub par diagnostics skills. I asked for the voltage read outs when they checked the relays and they said they tried to obtain it but ultimately it didn't save so they don't have it.... How convenient. I'm done with Audi of Peoria in AZ

Sent from my Nexus 6P using Tapatalk
