034Motorsport is proud to formally announce Stage 3 Dynamic+ Performance Software for the Audi B9 S4, S5, & SQ5 equipped with the EA839 3.0T TFSI engine and TTE810 Turbocharger! Generate up to 774 Horsepower and 716 FT-LB of torque with just an ECU and TCU flash and accompanying hardware!
Dynamic+ Stage 3 Tuning will allow you to give those unsuspecting tuned Mustangs, Supras, or supercars a run for their money, ending with a nice view of their headlights in your rearview mirror.
Stock: 350 HP / 391 TQ
Stage 1 91: 397 HP / 491 TQ
Stage 1 93: 431 HP / 567 TQ
Stage 1 E85: 486 HP / 601 TQ
Stage 1+ E85: ~15 HP / 25 TQ Gain @2,700-4,800RPM over Stg 1 E85
Stage 2 91: 454 HP / 542 TQ
Stage 2 93: 476 HP / 576 TQ
Stage 2 E85: 510 HP / 616 TQ
Stage 2+ E85: ~13 HP / 20 TQ Gain @2,700-4,800RPM over Stg 2 E85
Stage 3 TTE810 91: 588 HP / 590 TQ
Stage 3 TTE810 93: 605 HP / 624 TQ
Stage 3 TTE810 E60-E70: 774 HP / 716 TQ
Stage 3 TTE810 E85 Pump: 735 HP / 717 TQ
034Motorsport Stage 3 Performance Software for the EA839 3.0T equipped with the TTE810 Hybrid Turbocharger (running pump gas or ethanol) is engineered to safely increase the horsepower and torque beyond the stock turbocharger. Significant time was spent refining and safely optimizing the TTE810 Turbocharger calibration to ensure unrivaled drivability and uncompromised reliability. While many tuners can achieve great power figures that look impressive on a dyno sheet or a webpage, the key to a truly substantive and transformative software upgrade lies in the strategies employed to make power efficiently and safely.
In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in both Dynamic and Comfort modes to provide improved throttle response and allow for more precise throttle modulation with the addition of a hybrid turbocharger.
ECU Flash Features:
- Increased Horsepower & Torque Throughout the Powerband
- Improved Power Delivery, Acceleration, and Driving Characteristics
- Refined Throttle Mapping for Enhanced Throttle Response & Precision
- Modified Thermal Management Safety Strategies
- Fuel System Optimization for Ethanol
- Accurate Boost and Torque Reporting for Safety Features
- Optimizations around Volumetric Efficiencies of the EA839 2.9TT
- Speed Limiter Removed for Increased Top Speed
- Flashed Directly Via the Factory OBD-II Port
Stage 3 TCU Flash Features:
- Torque Safety Protocols Recalibrated for Higher Output
- Optimized Part and Full Throttle Shift Points
- Kickdown Switch Disabled in Manual Mode
- Improved Shift Speeds
- AMAX Shifting Enabled Through 6th Gear
- Increased Rev Limiter to Take Advantage of Increased Powerband
View full feature list and descriptions on webpage: Click Here
Upgraded Injector Optimization:
Dynamic+ Stage 3 Software for the TTE810 Turbocharger is optimized for use with upgraded OEM Audi 2.9TT/4.0TT Direct Fuel Injectors (p/n: 06M906036AQ). The OEM Audi 2.9TT/4.0TT Direct Fuel Injectors are a required hardware upgrade for Stage 3 Dynamic+ Tuning for the TTE810 Turbocharger that allows you to maximize your power output safely.
The 034Motorsport Stage 3 E60-E70 file is recommended to have an ethanol content of E60-E70. This file is designated for use when seeking the highest power output possible. This ethanol content allows your Audi to safely generate maximum power from the TTE810 turbocharger by maximizing the octane level and knock-reduction efficiency of ethanol, without overloading the fuel system with extra fuel capacity that the current fuel system cannot sustain.
The Stage 3 E85 Pump file is recommended to have an ethanol content of E50-E85 and is designed to provide the most power possible with higher ethanol contents. This file is suited for those looking to daily drive their vehicle and run E85 from the pump safely without the hassles of mixing.
Note: The OEM Audi 2.9TT/4.0TT Direct Fuel Injectors are to only be used with TTE810 Turbocharger Calibrations and cannot be used on any other 034Motorsport Dynamic+ Tuning calibration.
Crank Dyno Charts:
View More on Website

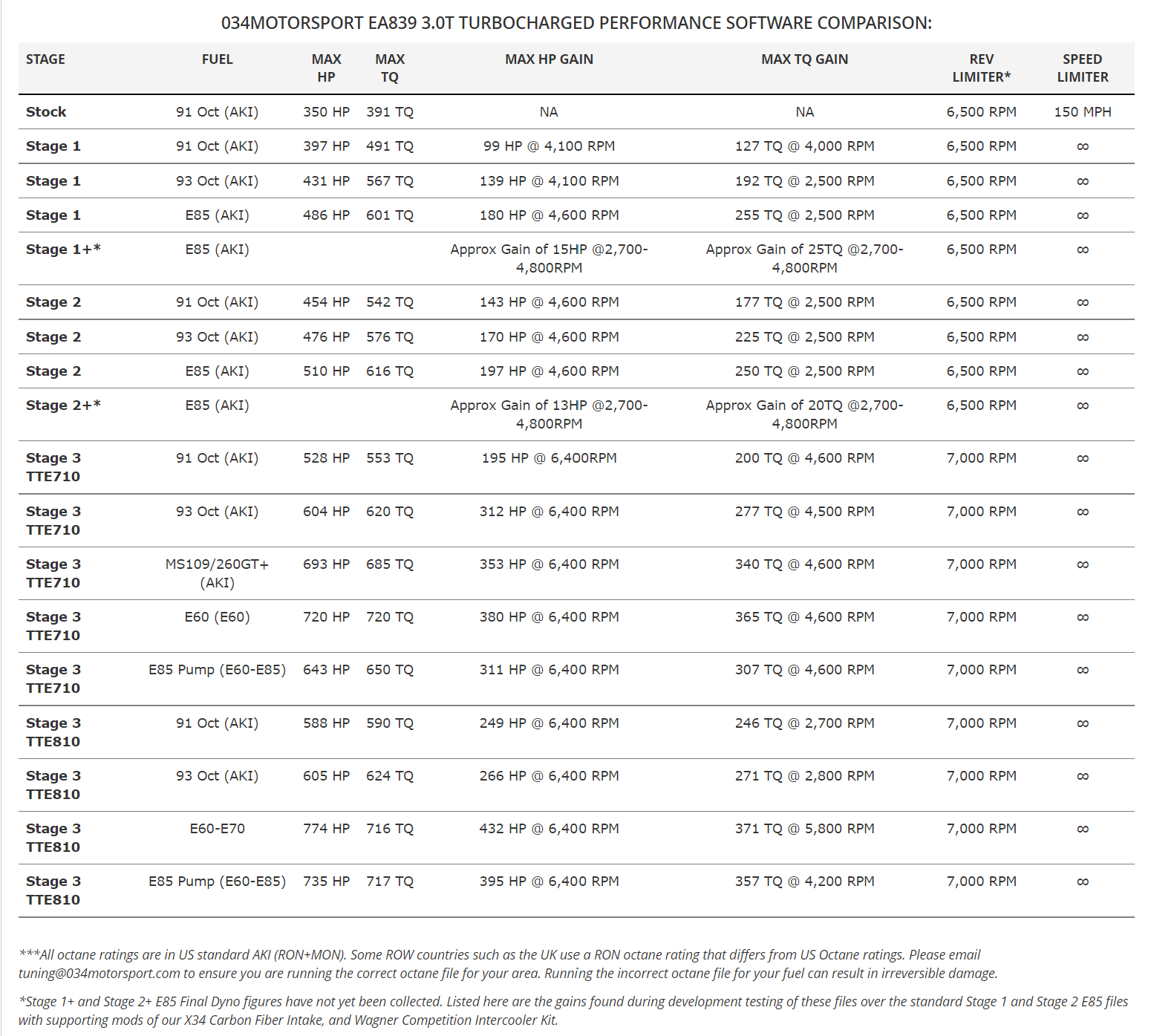

034MOTORSPORT EA839 3.0T TURBOCHARGED PERFORMANCE SOFTWARE COMPARISON:

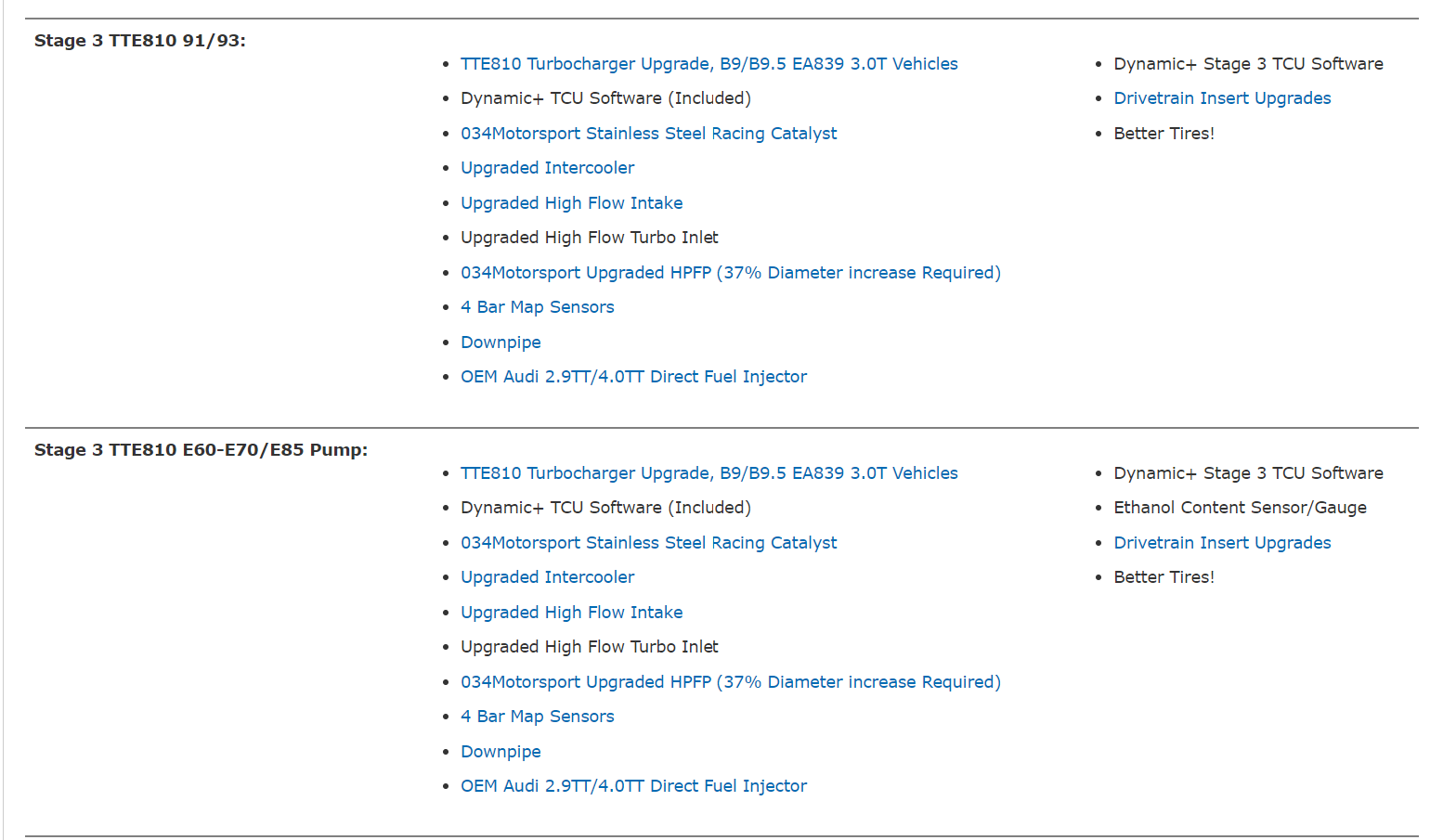

034MOTORSPORT EA839 3.0T TURBOCHARGED PERFORMANCE SOFTWARE & HARDWARE REQUIREMENTS
(Required Left, Recommended Right)
View More on Website
034MOTORSPORT EA839 3.0T TURBOCHARGED PERFORMANCE SOFTWARE COMPARISON:
034MOTORSPORT EA839 3.0T TURBOCHARGED PERFORMANCE SOFTWARE & HARDWARE REQUIREMENTS
(Required Left, Recommended Right)
EMISSIONS DISCLAIMER
This product is sold for racing use as well as use on vehicles not registered for on highway use.
By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
