OFFICIAL B9 A4 Wheel Gallery

[STICKY RICE]

I went with 245/35 R20. No issues with them, I was a bit concerned anything wider would rub.

I'm running 255/35/20 lowered on eMMOTION springs and no rub issues even with a full car.

[kursk]

20x8.5 255/35/20 h&r springs

[GetYourWheels]

Got some installed photos of our B9 Audi S4 customer with the Vertini RF1.2 in 20X9 with 265/30/20 tires for a nice fitment on stock suspension.

[ibu11et]

[Will@G-Werke]

BBS CH-R 20x9, ET25 with Hankook Ventus V12 255/30

[novasteve]

20x8.5 255/35/20 h&r springs

What wheels are those?


Sent from my iPhone using Audizine

[mystik4l06]

Rohana rfx5 20x9.5 ET27 lowered on H&R springs.


Sent from my iPhone using Audizine

[jehr]

Hello all! This is my first post. My ride is lowered on H&R sport springs (already had the stock sport suspension w/ 19in wheel package) and I'm looking to get 20x9 et 25 wheels with either some 255/30 or 245/30 tires. Would this setup rub or cause any issues? I like a slightly more aggressive stance, but definitely don't want rubbing issues or anything like that. I've never modded a car before so any help, experience or advice would be greatly appreciated! I really would like to get it done right the first time around, but from photos I have seen, 20x9 with an et 25 looks great to me.

[Will@G-Werke]

Hello all! This is my first post. My ride is lowered on H&R sport springs (already had the stock sport suspension w/ 19in wheel package) and I'm looking to get 20x9 et 25 wheels with either some 255/30 or 245/30 tires. Would this setup rub or cause any issues? I like a slightly more aggressive stance, but definitely don't want rubbing issues or anything like that. I've never modded a car before so any help, experience or advice would be greatly appreciated! I really would like to get it done right the first time around, but from photos I have seen, 20x9 with an et 25 looks great to me.

I'm running 20x9, ET25 with 255/30 and it will rub unless you have camber maxed out in the rear at -2.5. I tried 245 width tires, but they just didn't look right.

[Mops@Nemesis]

36094618286_f8d23d38e8_o by Audiyos, on Flickr

[lanthanides]

I'm running 20x9, ET25 with 255/30 and it will rub unless you have camber maxed out in the rear at -2.5. I tried 245 width tires, but they just didn't look right.

Hello !
In your opinion, will 20x9 ET 35 instead of ET 25 (with 255/30) and lower with spring, still have some issue and rub ?

[RichardM]

Greetings All,

I was hoping to get some help with a few questions. I picked up a 2018 S4, and unfortunately within 4 weeks of ownership I managed to bend all 4 rims....NYC potholes.

I had those rims repaired and they are in storage now. I currently have the wheels from my 2014 S4 on the 2018. They fit, but something seems off...I was hoping someone can help me figure out the differences in wheels. The 2014 is a 255/35/19 and the 2018 is a 245/35/19. Do I need wheel spacers?

I also have a set of wheels (no rubber on them) from a 2014 S4. These wheels would use a 245/40/18 tire. These also fit the car but there is a credit card's thickness of clearance between the spoke and brake caliber. I've been told by an Audi service adviser to use a 5mm wheel spacer in front and a 10 mm wheel spacer in the rear. He said the setup is different on each axel. I was also told by a local mechanic that a 3mm wheel spacer on all four wheels would be fine. I had a rep from tire rack suggest using 11.5/12 mm spacers to match the offset of the stock 2018 wheels. So I've gotten three different suggestions regarding the use of the 18" wheels. I would really appreciate figuring out how to make the 18" wheels fit similar to the stock 19" that came with the car.

Or maybe I should sell the two sets from the 2014 s4 and buy a proper wheel with all season tires to use with the 2018.

Sorry for the long post. But I would appreciate the help.

[STICKY RICE]

Hello !
In your opinion, will 20x9 ET 35 instead of ET 25 (with 255/30) and lower with spring, still have some issue and rub ?

I'm running 20x9 ET35 with 255/35 lowered on springs. No rubbing.

[EmmanueleDesign]

A customer's A4 lowered on our eMMOTION lowering springs with 20x9 ET35 Vorsteiner VFF107 (tires: Kumho PS91 255/35/20).

https://www.emmanueledesign.com/coll...nt=37478616330

[Mops@Nemesis]

Sweet setup we did for my man Evan.

Enkei GTC01RR - 18x8.5 +35 on 255/40r18 Pilot A/S 3+








Mops on the move

[EmmanueleDesign]

Sweet setup we did for my man Evan.

Enkei GTC01RR - 18x8.5 +35 on 255/40r18 Pilot A/S 3+








Mops on the move

Looking good! Now time for more low!

[Mops@Nemesis]

Looking good! Now time for more low!

Pretty much any low would help! 😛

[Tatge]

Pretty much any low would help! 😛

No lowering for me, she is as low as she will go for now. #1, cannot lower in a Stock/Street class in Autocross. #2, I just moved from San Antonio, TX to Dayton, OH and will be driving through Detroit on a regular basis...potholes and snow = no bueno for low.

[Kolbaskin]

Niche Essen R20 10j ET40
Hankook 265/30


Sent from my iPhone using Audizine

[Southern]

Niche Essen R20 10j ET40
Hankook 265/30


Sent from my iPhone using Audizine

Nice! 20x10 wheels?

[DrueDown]

I've been all over the internet trying to find a B9 on Rohana RC7 19x9.5 - I just found a Grey S4 on the audi-sport forum.
I've narrowed my wheel choices down to Hartmann 19x8.5 rotors -vs- Rohana RC7 19x8.5 or 19x9.5

I ordered an A4 B9 Quattro S-Line - MoonLight Blue w/ black optics & red calipers - black interior w/ red stitching - piano black side & rear accents.
I'm not going to black out the emblems.

It's coming with factory 19x8.5 wheels (nope) and 245/35 Summer Tires.
Newb here - So I'm hoping I can stretch those tires onto 19x9.5 wheels - I prefer the concave of 9.5.

I did some quick photoshopping of what it could look like based on this S4,
now I need to decide between Silver & Matte Graphite - Opinions?

[millwaukee]

Sent from my iPhone using Audizine

[vaca]

Emmanuele design springs + Weds Sa55m 19x8 et 42 (with ECS tuning spacers 12.5 mm and 15 mm) Michelin Pilot Super Sport 245-35-19

[Durwin@TAG]

That's a sweeeeet paint job you got there!

[TAGMotorsports]

-20x10" Rotiform CCV machined Finish
-255/30/20 Pirelli P Zero Tires
-KW HAS





If you have any questions feel free to contact us HERE

[Fourcircle]

I've been all over the internet trying to find a B9 on Rohana RC7 19x9.5 - I just found a Grey S4 on the audi-sport forum.
I've narrowed my wheel choices down to Hartmann 19x8.5 rotors -vs- Rohana RC7 19x8.5 or 19x9.5

I ordered an A4 B9 Quattro S-Line - MoonLight Blue w/ black optics & red calipers - black interior w/ red stitching - piano black side & rear accents.
I'm not going to black out the emblems.

It's coming with factory 19x8.5 wheels (nope) and 245/35 Summer Tires.
Newb here - So I'm hoping I can stretch those tires onto 19x9.5 wheels - I prefer the concave of 9.5.

I did some quick photoshopping of what it could look like based on this S4,
now I need to decide between Silver & Matte Graphite - Opinions?

IMO the darker wheel looks great with the blue paint. If you are blacking out the trim, no doubt go dark. However if keeping the trim silver, go with silver wheels.


Sent from my iPhone using Tapatalk

[Fantasiamon]

Anyone know what wheel et provides a flush look on the B9 Allroad? Believe stock is et29....


Sent from my iPhone using Tapatalk

[RingNut]

Rotiform LAS-R 20" x 8.5" et35, Toyo Proxes 4 Plus 255/30/20

[ParkerB5]

Et26 RS5 wheels with 255/30 are flush on B9 A4

Anyone know what wheel et provides a flush look on the B9 Allroad? Believe stock is et29....


Sent from my iPhone using Tapatalk

Sent from my iPhone using Audizine

[Fantasiamon]

Et26 RS5 wheels with 255/30 are flush on B9 A4








Sent from my iPhone using Audizine

Thanks!
I feel like the specs might be a little different for the Allroad though....
Beautiful ride and pic!


Sent from my iPhone using Tapatalk

[ParkerB5]

Thanks!
I feel like the specs might be a little different for the Allroad though....
Beautiful ride and pic!


Sent from my iPhone using Tapatalk

It was more to give you an idea of what flush on the narrow body looks like. Probably wouldn’t be terrible specs to have on an allroad. Let me know if you’re looking to buy some RS5 rotors


Sent from my iPhone using Audizine

[Fantasiamon]

It was more to give you an idea of what flush on the narrow body looks like. Probably wouldn’t be terrible specs to have on an allroad. Let me know if you’re looking to buy some RS5 rotors


Sent from my iPhone using Audizine

All true and I appreciate the response.

Not in the market as of now but will let you know if anything changes!


Sent from my iPhone using Tapatalk

[029kid]

Im considering AEZ Straight Dark 8.5x19 ET35 but its CB is 70.1mm.

Could use 70.1 to 66.5 rings but I have little experience with hub rings and Im worried about vibration.

Would this be a bad idea?

[R8Ready]

Hey guys

I'm so confused lol I was told ET29 wheels wouldn't fit on our cars.

I'm planning on getting the RS4 style rims which are 19x8.5 ET43

I wasn't the wheels to sit pretty flush with the fender.

Do you know what size spacers I world need?

[TAGMotorsports]

The car is lowered on KW HAS for reference.

FlowForm FF04 20x10 Love

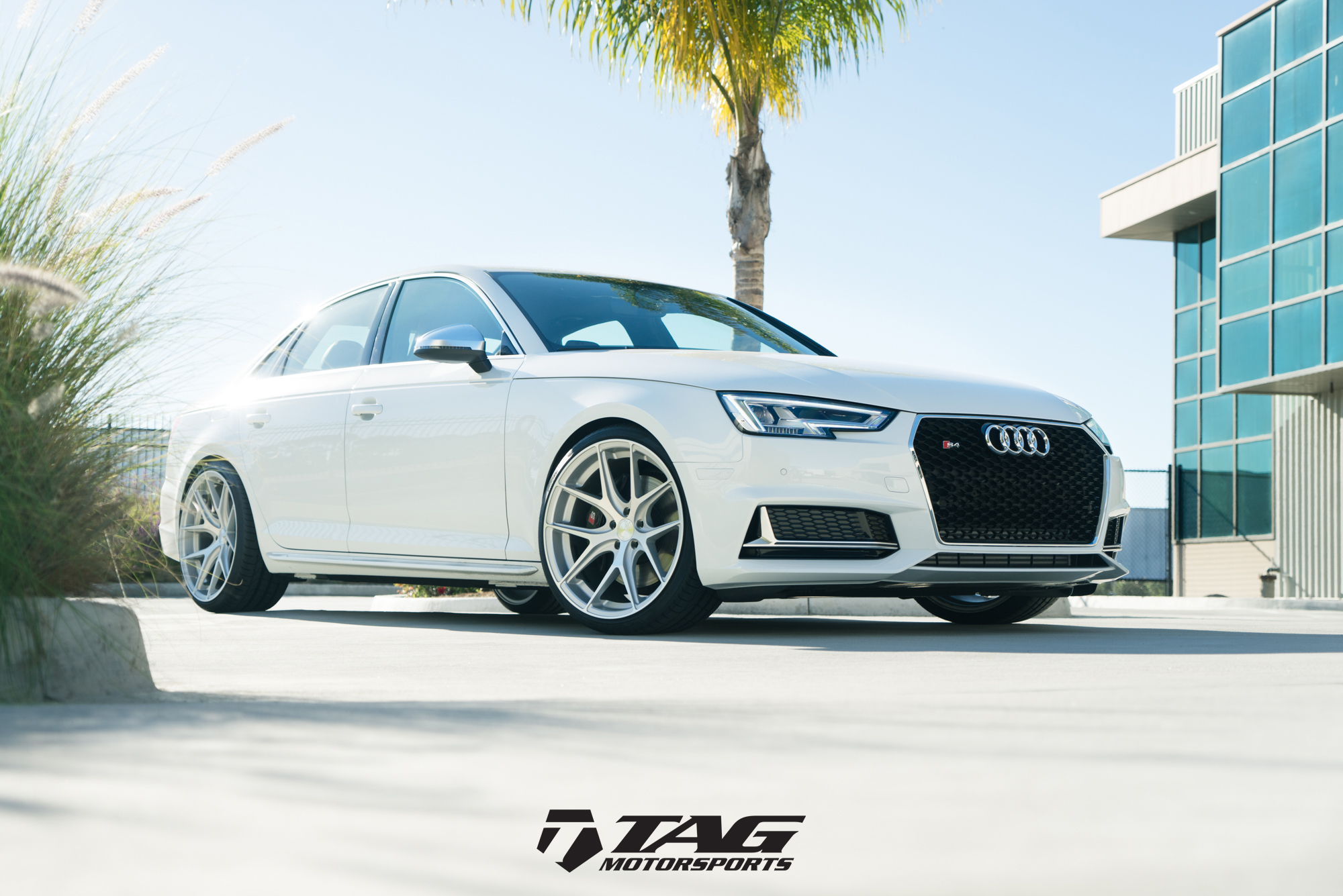

Avant Garde M580 Satin Silver 20x10 Love

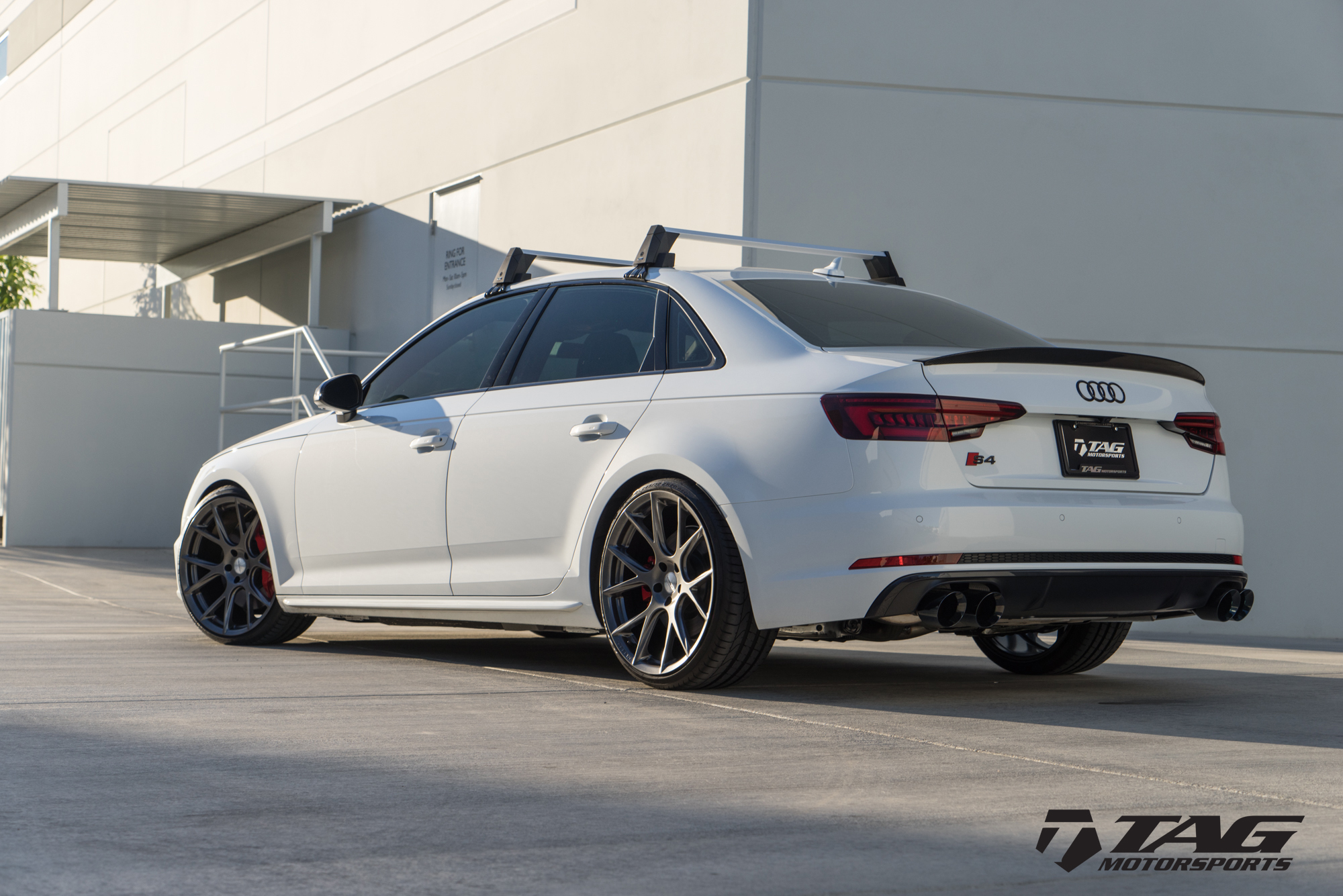

Vossen VFS6 Gloss Graphite 20x10




If you have any questions feel free to contact us HERE

[Fantasiamon]

Bump. Someone post some pix.


Sent from my iPhone using Tapatalk

[petesb9s4]

The car is lowered on KW HAS for reference.

FlowForm FF04 20x10 Love


Avant Garde M580 Satin Silver 20x10 Love


Vossen VFS6 Gloss Graphite 20x10




If you have any questions feel free to contact us HERE

are those AG 20x10 or 8.5?

[Sean@TAG]

are those AG 20x10 or 8.5?

The AG set is in fact 20x10! Did require a spall spacer however.

[ParkerB5]

Just mounted up my winter setup for the season.. 19x9 et33 A8 wheels with brand new Pirelli Sotto Zeros


Sent from my iPhone using Audizine

[4 Ring Loyalist]

Time to start the Official Wheel gallery for the B9. Im sure some of you new owners will have rims soon.
Please post your B9 with REAL wheels. No theoreticals or photoshops please.

Wheel Manufacturer: Marquee luxury wheels
Wheel Diameter x Width: 20x9 f 20x10.5
Wheel Offset:
Finish: gloss black w/silver face
Tire Size: 255/35 f 275/30 r
Suspension: h&r coilovers sitting low

And if it's not to much to ask, a picture.

Sent from my SM-G955U using Audizine mobile app
