C5 Allroad Build - Suspension Control Unit inside!

**Stadles** · 02-19-2014 11:33 AM

Time to start a BIO!

I purchased an '04 Allroad 2.5 TDI 180hp last year and straight away started to modify on it.
It's fully equipped except for solar sun roof and seats-memory function

I started to modify it pretty soon.
First of all new wheels:
9j 20" ET20 Q7 - running on 245/35-20

I then tryed to 402-mod the suspension, but I was not really happy about it.

So I started to design a suspension control unit, which allows to switch between stock and manual height control without any changes on the hardware.

In the beginning there was a very basic prototyp (worked fine for ~6 months)

Then I designed a smaller board using OEM plugs, which allows to mount the control unit without any cutting.

I found some OEM looking switches (rear- & front axis can be controlled separately)

Last week I stated off with a all new design, based on a housing:

And there it is, the maybe final edition, now waiting for another couple of weeks testing.

More pics:

What's happening next?

ecu mod -> 204hp
flat white vinyl wrap (only painted parts except roof)
repaint wheels

**pearlescent** · 02-19-2014 05:51 PM

Very interested in this! Are you planning to assemble a kit? Will it be available for sale?

Nice work!

**Stadles** · 02-19-2014 10:34 PM

Thx.
I may build some more if you guys are interested in this whole thing.

Sent from my iPhone using Tapatalk

**ENDEE666** · 02-20-2014 09:42 PM

Some of the pics aren't working for me.. But some are..

**Zamorano510** · 02-21-2014 12:19 AM

Im very much interested in this control unit. I have been looking for it for some time because I have ran into this thread before. I would really like to know if your going to make some to sell, I would sure want to do one from you.

**Stadles** · 02-22-2014 07:42 AM

Here we go:

Found a nice place up there. Just fixed it with some velcro tape.

Lowest setting possible, without changing hardware:

It may set a bit more if I roll some feet.

Sent from my iPhone using Tapatalk

**AR-77** · 02-26-2014 09:25 PM

interested in buying 1.

**pearlescent** · 02-27-2014 05:59 PM

X2

**Stadles** · 02-27-2014 10:32 PM

I am currently searching for another car to broaden the testing ....

Sent from my iPhone using Tapatalk

**Smarty39** · 02-28-2014 08:42 AM

I would be 100% in for this, please keep this post updated!!!

**sumkid** · 03-02-2014 08:29 AM

this is awesome. I'm in for one

**Zamorano510** · 03-13-2014 11:27 AM

Originally Posted by Stadles

I am currently searching for another car to broaden the testing ....

Sent from my iPhone using Tapatalk

Stadles, I hope you perfected this upgrade because Im really love it and I want one. There are companies such as Arnott and IPP has some great O.E.M replacements of the bags for our Allroads. Ill be installing those in the next month or two and I can help with testing your component on a different set of bags.

Ill be on this forum just waiting for you to give a go on your beautiful creation. :)

**Stadles** · 03-14-2014 05:42 AM

I am waiting for another set of OEM plugs. Then i will send one over

Sent from my iPhone using Tapatalk

**canadianA4B7** · 03-14-2014 02:13 PM

what are you exactly looking for? these plugs you are looking for which are they? im interested in sending you a set of these plugs. I have a source who may have a few available for me to buy. and then ill send them to you if that's cool with you?

**Stadles** · 03-15-2014 12:37 AM

Thx for helping but I already get them straight from the manufacturer.

Sent from my iPhone using Tapatalk

**canadianA4B7** · 03-15-2014 11:14 AM

Cool no problem. Just thought you could use a few more likely at no cost.

**Stadles** · 04-01-2014 10:29 AM

News!
I am still waiting for the plugs as they are out of stock. They will be back on stock ~5th of april.
So I hope to get the next unit ready after easter holidays.

Sent from my iPhone using Tapatalk

**2.5TDi_AR** · 04-09-2014 02:42 AM

How much for one of these to the UK?

**PipeHitter808** · 04-09-2014 10:59 AM

Save me one!

**Stadles** · 04-09-2014 11:02 AM

Going to prepare 5 sets!
Still waiting for some plugs & stuff

Sent from my iPhone using Tapatalk

**JTown77** · 04-09-2014 03:06 PM

How much? I may be interested.

**juve021** · 04-09-2014 03:17 PM

Originally Posted by JTown77

How much? I may be interested.

+1

Also interested more details on its function. I mean I know you can manually control front and rear bags from the switches in the console (from the pic above) but is this all the unit does? Does it do any automatic lowering say when you hit 70MPH like OEM? Does it control the compressor at all?

What I really want is to use my phone to control it...totally possible with Android to control relays.

Thanks.

**PipeHitter808** · 04-13-2014 02:40 PM

Will you be making a youtube video of the control unit in action?

**Stadles** · 04-19-2014 11:55 PM

Originally Posted by juve021

+1

Also interested more details on its function. I mean I know you can manually control front and rear bags from the switches in the console (from the pic above) but is this all the unit does?

At the moment, yes!

Originally Posted by juve021

Does it do any automatic lowering say when you hit 70MPH like OEM?

NO - This is exactly what I wanted to omit.
To me It is really annoying having the car going up and down all the time for no reason.
The car won't lower wen parked either. The OEM unit is fully circumvented.

Originally Posted by juve021

Does it control the compressor at all?

No, not in this stage.
Compressor control will be available with the app-version only, as it is quite complex, getting the compressor to fill only the airtank on a purely analog board.
You will need to switch back to the OEM unit if you want the tank to be filled.
Otherwise you habe the hardwire an On/Off switch to the compressor.

Originally Posted by juve021

What I really want is to use my phone to control it...totally possible with Android to control relays.

I am working on a solution using microcontroler and an iphone-app.
We will see if there may come an Android version.

Sent from my iPhone using Tapatalk

**PipeHitter808** · 05-01-2014 11:05 PM

Update us please!!

**Stadles** · 05-05-2014 08:12 AM

Update:
I think I found a more or less simple way to control the compressor without any need of a microcontroller at all.
I am sure all of you want a working compressor while driving in manusl mode, so I am focusing on this issue.

As far as I know these guys are interested:
AR-77
klev
Christophè
Twenty6
Juve021
Jtown77
Pearlescent
Zamorano510
Smarty39
2.5tdi_AR
PipeHitter808

Sent from my iPhone using Tapatalk

**2.5TDi_AR** · 05-06-2014 01:03 PM

Yes please. How close are you to having something ready to ship out?

**klev** · 05-07-2014 12:57 AM

Originally Posted by Stadles

Update:
I think I found a more or less simple way to control the compressor without any need of a microcontroller at all.
I am sure all of you want a working compressor while driving in manusl mode, so I am focusing on this issue.

As far as I know these guys are interested:
AR-77
klev
Christophè
Twenty6
Juve021
Jtown77
Pearlescent
Zamorano510
Smarty39
2.5tdi_AR
PipeHitter808

Sent from my iPhone using Tapatalk

Sounds good

:)

**PipeHitter808** · 05-08-2014 06:36 PM

Can not wait to buy.

**CHRISTOPHÉ** · 05-10-2014 02:34 AM

Just a question about the unit, when it is switched on and lowers the car is there a set amount? Will it matter that I've 402'd it?
Does it vary car to car or would it be variable by you or us inside the unit then set to that each time?
Cheers Chris

**Stadles** · 05-10-2014 03:21 AM

There is no setting functionality.
As long as you press the "down" button, the car will lower the selected axle until the pressure is fully released.
And vice versa

Sent from my iPhone using Tapatalk

**juve021** · 05-10-2014 03:59 AM

So how do we turn the compressor on to refill tank? Or does that happen automatically?

Sent from my SAMSUNG-SGH-I747 using Tapatalk

**Stadles** · 05-10-2014 04:16 AM

This will happen automatically when you don't operate the suspension and pressure level is below a certain point.

Sent from my iPhone using Tapatalk

**juve021** · 05-10-2014 05:02 AM

Thanks for the clarification

Sent from my SAMSUNG-SGH-I747 using Tapatalk

**4rings2turbos** · 05-15-2014 06:49 AM

Updates here? I'd love to dump my suspension when parked and driving slowly around town.

**Twenty6** · 05-15-2014 06:55 PM

I'm ready to buy right now haha.

**Stadles** · 05-17-2014 02:54 PM

Sorry guys, it's lake Wörthersee time in Austria. Biggest Volkswagen & Audi Show worldwide - attracting about 150.000 to 200.000 visitors and thousands of cars during its two weeks period.

Will continue afterwards.

Sent from my iPhone using Tapatalk

**PipeHitter808** · 05-17-2014 03:38 PM

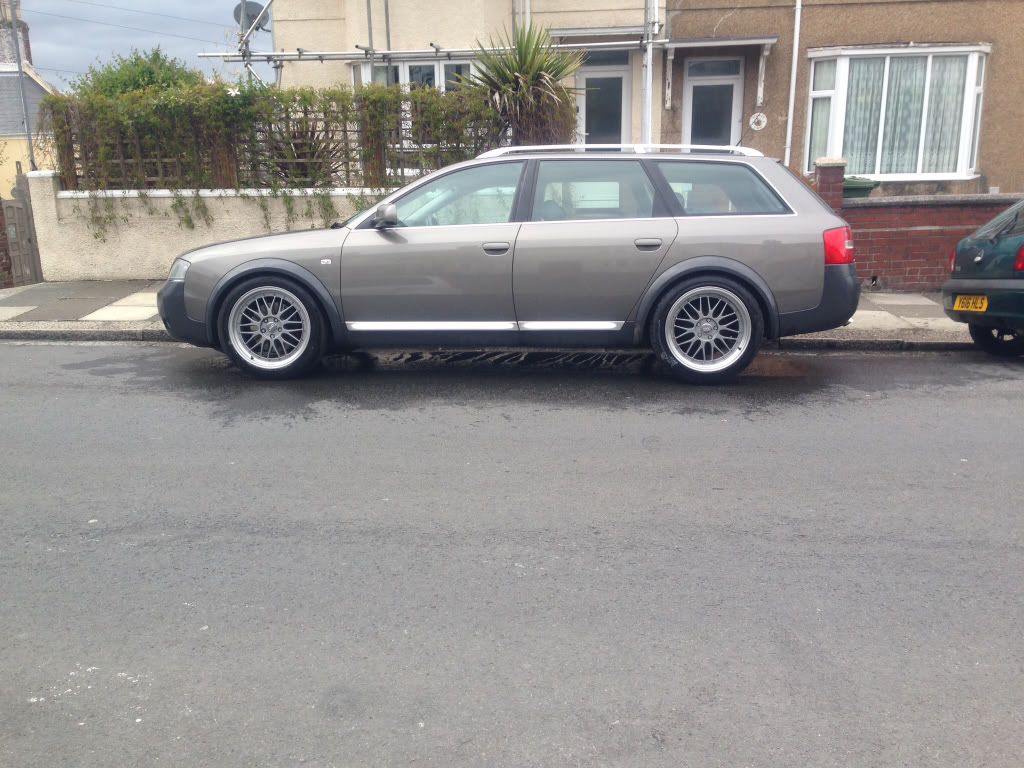

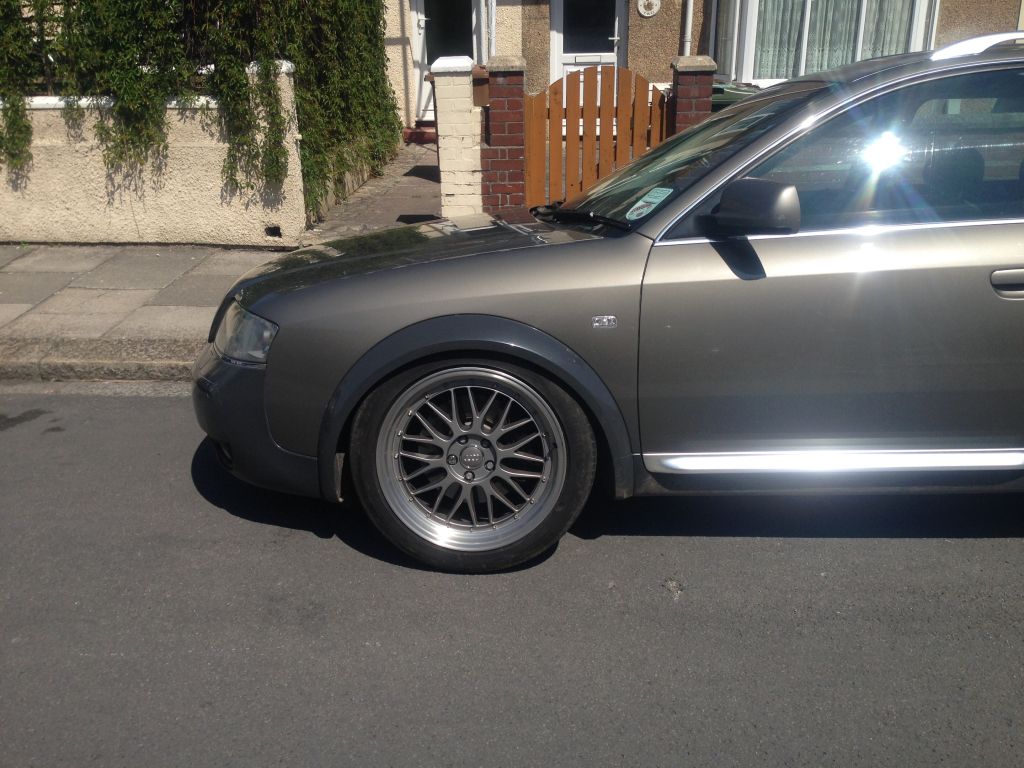

Well I already driving on Lvl1 and my tires are smaller then stock (215-45-R17) I cant wait to dump it low after upgrading my control arms and steering components. What size are you driving on now ? I am thinking 18s with wide meaty tires.

**Stadles** · 05-17-2014 11:28 PM

I am driving 9j x 20" .... 245/35-20

If you want to go deeper than on my pics, you need to open the struts and remove all bump rubbers!
You will also need to open the compressor housing and remove the safety valve

Sent from my iPhone using Tapatalk
