Official B5 A4 / S4 Headlight and HID Thread

**udcc11** · 03-05-2012 10:59 AM

I planned on doing number three with crimp/tab connectors so it can be returned to stock. Deer are everywhere here and I drive on 2 lanes roads at night a lot. Bi-Xenon with brights seems like an amazing thing to me.

**Dutchsider** · 03-07-2012 10:15 AM

Originally Posted by udcc11

I planned on doing number three with crimp/tab connectors so it can be returned to stock. Deer are everywhere here and I drive on 2 lanes roads at night a lot. Bi-Xenon with brights seems like an amazing thing to me.

this option is what truely attracted me to this kit. I've never been able to get my highbeams aligned properly so I barely use them. Having the option of a nice bright, full bi-xenon beam along with the H7 highs will be awesome on dark back roads.

**Gaki** · 03-06-2012 10:16 PM

sign me up for kit 2

**Korben007** · 03-07-2012 12:19 PM

Is that template almost ready?

**BlkBullitt** · 03-08-2012 06:47 AM

Originally Posted by Korben007

Is that template almost ready?

Yes, and sorry it has taken a while (a sick 4 month old makes getting anything done hard). I'll be posting info shortly.

For anyone who had questions about the Bi-Xenon feature. I've got mine wired up and it works very well. I did encounter an issue though with the high beams not returning to low beams... currently the only way to get them to return is to turn off my headlights and then turn them back on). I'm discussing this with TRS to see if they've encountered this before. Will keep you all updated.

**BlkBullitt** · 03-08-2012 08:17 AM

Updated with directions for retrofitting the Morimoto Mini H1s. I'll post an actual template that you'll be able to print for making the brackets eventually.

**vteckiller2000** · 03-08-2012 08:58 AM

Are the shields getting stuck? If so, I have that problem too.

**BlkBullitt** · 03-08-2012 10:33 AM

Originally Posted by vteckiller2000

Are the shields getting stuck? If so, I have that problem too.

I don't think the shields are physically stuck on something since they return to the proper place if I turn the lights completely off and back on... they just aren't returning when I switch from high beams back to low beams.

**BlkBullitt** · 03-09-2012 05:53 AM

Wanted to post an update. One of them started working normally. I took some voltage readings for the other and got some rather odd results...

Lights Off, Activate Low Beams
Low Beam - 12.9v
High Beam - 0v

Low Beams On, Activate High Beams
Low Beam - 12.9v
High Beam - 12.9v

Low and High Beams On, Deactivate High Beams
Low Beam - 12.9v
High Beam - 1.5v

Low Beams On, Deactivate Low Beams
Low Beam - 0v
High Beam - 0v

I have no idea where this 1.5v is coming from, but I'm guessing that is the cause of the shield not returning unless I turn off the headlights completely. Will continue to update.

**Dutchsider** · 03-10-2012 08:34 AM

Interested in hearing how that voltage issue turns out. That would suck if these things are problematic.

**udcc11** · 03-13-2012 12:42 PM

Any updates on the issues?

**davidkae** · 03-14-2012 10:15 PM

Thank you for your amazing work! Learned so much about the things that illuminate the road!

**somebody5788** · 03-15-2012 07:39 AM

As far as the shield problem, try putting a resistor inline to the solenoid.

**RC200** · 03-15-2012 09:59 AM

I'm pretty sure , 1.5V is still there because of the way the wiring is done b/w low and high beam.When you still have 12V on low beam, I'm pretty sure it still leaks into the high beam wiring.
Remember an halogen bulb has a very low resistance, so it washes out this 1.5V ... if really present

Basically the cutoff shield is moved with a solenoid / coil that acts as a magnet, the coil is similar to the ones in a relay, so it should draw about 100-500mA, or maybe less (at least not enough current).
YOu should try with a high wattage resistor in parallel, just to give is a try.
Typical values to try are from 12 to 20 ohms, the resistor draws more current and so should drop this infamous 1.5V when 12V is no more applied for highbeam.
Second test would consist in adding some diodes (1,2 or 3) in serie just to check if it's better (will drop voltage up to about 3x0.6V= 1.8V)

**BlkBullitt** · 03-15-2012 12:13 PM

Originally Posted by RC200

I'm pretty sure , 1.5V is still there because of the way the wiring is done b/w low and high beam.When you still have 12V on low beam, I'm pretty sure it still leaks into the high beam wiring.
Remember an halogen bulb has a very low resistance, so it washes out this 1.5V ... if really present

Basically the cutoff shield is moved with a solenoid / coil that acts as a magnet, the coil is similar to the ones in a relay, so it should draw about 100-500mA, or maybe less (at least not enough current).
YOu should try with a high wattage resistor in parallel, just to give is a try.
Typical values to try are from 12 to 20 ohms, the resistor draws more current and so should drop this infamous 1.5V when 12V is no more applied for highbeam.
Second test would consist in adding some diodes (1,2 or 3) in serie just to check if it's better (will drop voltage up to about 3x0.6V= 1.8V)

I'll give this a try over the weekend. Haven't really had a chance to test or try anything else yet this week. Will keep everyone updated.

**BlkBullitt** · 03-16-2012 06:02 AM

Thanks RC200! Solenoid issue has been solved. I ended up placing a 1/2 Watt 22 Ohm resistor in parallel and now the solenoids not only work as they should, but they are much more responsive (there was a slight delay before).

I also went ahead and wired up my halogens to the high beams as well... so now I have both Bi-Xenon and Halogen high beams

**somebody5788** · 03-16-2012 06:30 AM

Originally Posted by BlkBullitt

Thanks RC200! Solenoid issue has been solved. I ended up placing a 1/2 Watt 22 Ohm resistor in parallel and now the solenoids not only work as they should, but they are much more responsive (there was a slight delay before).

I also went ahead and wired up my halogens to the high beams as well... so now I have both Bi-Xenon and Halogen high beams

Hey! It was my idea first!! hahaha

On a side note, I just got to thinking. If you wired up the bulb before the solenoid, the bulbs resistance alone might have been enough.

**Dutchsider** · 03-16-2012 02:21 PM

Originally Posted by BlkBullitt

Thanks RC200! Solenoid issue has been solved. I ended up placing a 1/2 Watt 22 Ohm resistor in parallel and now the solenoids not only work as they should, but they are much more responsive (there was a slight delay before).

I also went ahead and wired up my halogens to the high beams as well... so now I have both Bi-Xenon and Halogen high beams

This is what I'm in on this for. I want to see this light output.

So this resistor issue, is this easily corrected by the average soldering tinkerer? I know how to solder just fine, just don't have much knowledge on electrical resistance and its subtleties

**BlkBullitt** · 03-27-2012 09:07 AM

Originally Posted by Dutchsider

This is what I'm in on this for. I want to see this light output.

So this resistor issue, is this easily corrected by the average soldering tinkerer? I know how to solder just fine, just don't have much knowledge on electrical resistance and its subtleties

Yes, it is... I'm not an electrical engineer... just a soldering tinkerer like you.

**RC200** · 03-16-2012 06:41 AM

Originally Posted by somebody5788

As far as the shield problem, try putting a resistor inline to the solenoid.

inline means in serie ?
must be in parallel

btw, 1w is better, 1/2 watt is going to dissipate too much for its size

**somebody5788** · 03-16-2012 06:58 AM

Originally Posted by RC200

inline means in serie ?
must be in parallel

btw, 1w is better, 1/2 watt is going to dissipate too much for its size

Series would work better I think. Electricity will take the path of least resistance, so if you add a resistor then.. well.. it's probably not going to take that path.

**RC200** · 03-16-2012 07:05 AM

Originally Posted by somebody5788

Series would work better I think. Electricity will take the path of least resistance, so if you add a resistor then.. well.. it's probably not going to take that path.

NO, it doesn't.
What you want is draining current when highbeam are off to drop the 1.5v (in fact more ) residual voltage leaking from the lowbeam wiring, so PARALLEL as tested above

**NOTORIOUS VR** · 03-16-2012 07:29 AM

Originally Posted by RC200

NO, it doesn't.
What you want is draining current when highbeam are off to drop the 1.5v (in fact more ) residual voltage leaking from the lowbeam wiring, so PARALLEL as tested above

I also agree that a 1/2W resistor is a little small

**kbjy11** · 03-16-2012 09:19 PM

*patiently waits for mounting template and cutoff pics* :)

**somebody5788** · 03-19-2012 07:50 PM

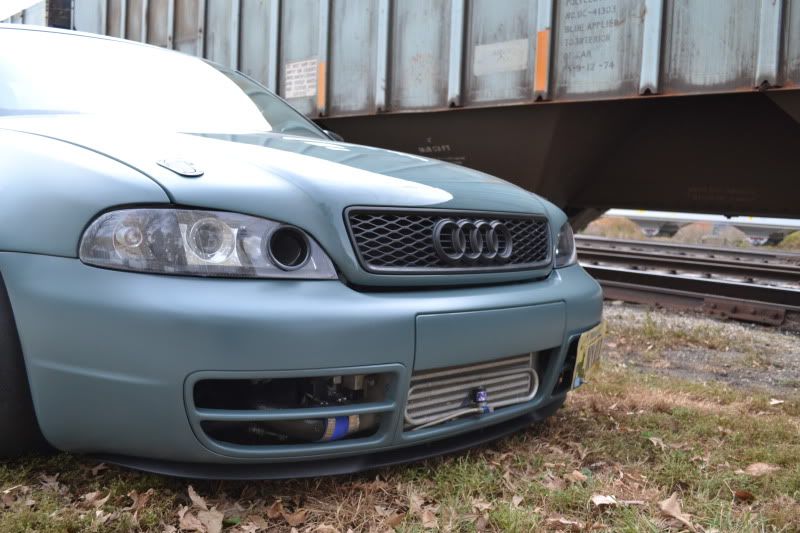

On another note, I was thinking. For anyone that does the Bi Xenon route, you can also do the headlight intake duct thing through the high beam without losing any drive-ability!

Not that it really looks that great but it's very functional for getting cold air in there.

**udcc11** · 03-19-2012 11:29 PM

That looks extremely ugly.

**udcc11** · 03-29-2012 01:26 PM

Is the Bixenon working out now?

**Dutchsider** · 03-29-2012 03:34 PM

Originally Posted by udcc11

Is the Bixenon working out now?

Word, how have things been going with the setup?

Also, is the thread in the B5 A4 section being bumped for group buy participants as well?

**BlkBullitt** · 03-30-2012 12:14 PM

Originally Posted by Dutchsider

Word, how have things been going with the setup?

Also, is the thread in the B5 A4 section being bumped for group buy participants as well?

Bi-Xenon has been working perfectly. I went ahead and made a new thread in the A4 section (http://www.audizine.com/forum/showth...05#post7434405) and also posted on QuattroWorld to try to get more participants. Please feel free to pass the info along on other boards as well.

Also, moving the GB list to Post #1 in this thread which is where I will continue to update the info.

**BlkBullitt** · 03-30-2012 04:01 PM

Only 2 more needed for group buy now.

**Korben007** · 03-30-2012 10:25 PM

ive been waiting for the template plate before i decide

**BlkBullitt** · 04-02-2012 06:41 AM

Originally Posted by Korben007

ive been waiting for the template plate before i decide

I'll have a template up by the end of the week (working on it right now actually) along with some wiring directions / guidelines.

**Dutchsider** · 04-01-2012 02:13 PM

Got my lexan.

**Gaki** · 04-01-2012 11:07 PM

Are you making brackets with the Lexan?

**BlkBullitt** · 04-02-2012 06:05 AM

Originally Posted by Dutchsider

Got my lexan.

Nice!

Originally Posted by Gaki

Are you making brackets with the Lexan?

I made my brackets with lexan.

**BlkBullitt** · 04-02-2012 07:27 AM

We currently have 12 people in for the group buy, but if we can get 20 people before the first round of buying we can get even better pricing. So please PM or email me if you want in!

**BlkBullitt** · 04-02-2012 06:05 AM

We have 10 people so the group buy is a go! I'll be contacting everyone on the list with more info. If I haven't contacted you within 24 hours please PM me or email me. If anyone else wants to be in this group buy please PM me or email me.
