    DIY: B5 S4 4:1 center differential modification like StaSIS/JHM

    Guest-only advertisement. Register or Log In now!
    The 4:1 modification for TORSEN center differentials changes a car's torque bias ratio, allowing the car to shift more torque to the rear wheels when necessary. This improves corner exit speed and decreases understeer. Both StaSIS and JHM offer this modification, but they charge $550 and $350 respectively. The same exact effect can be achieved by replacing a pair of low-friction washers in the differential stack with steel ones. This walkthrough will show the reader how to disassemble the differential and install a set of aftermarket washers in a B5 S4.

    This modification only applies to S4s with T2 differentials (model year 2000+.) '99 S4s and older European models can be either T1 or T2. If you have one of these cars, you'll have to remove the differential from the housing to find out what type it is. If it's T1, this walkthrough isn't applicable.

    The part numbers for T2 differentials:
    01E 409 751 E
    01E 409 751 F

    First, you must remove the differential from the transmission and diff. housing. This procedure is outside the scope of this DIY. For help, see this guide for the B5 A4 or this guide by StaSIS.

    Materials:
    Aftermarket washers
    6-32 tap
    3x 6-32 threaded bolts (get a few extras, these tend to get broken)
    Hammer
    Vice grips or similar

    Once the differential is out of the car, the spirol pins holding everything together will have to be removed. These are meant to be single use, but when removed with care they can safely be reused. Use a 6-32 tap to thread all three pins.





    Next, thread your 6-32 bolts into the spirol pins and grab them just inside the heads with your vice grips. Using the hammer, hit the vice grips to tap the pins out of the differential like so:



    Once these pins have been removed, the rods holding the gears on the unit are free to slip out. Be careful not to let this happen! Tape can be applied over the holes to keep them in for the time being.

    Removed pin:



    Once all three pins have been removed, the differential and gears must be marked for later reassembly. Each gear will have to be put back in its original location with the correct orientation. One easy way to do this is to stick a piece of tape on the differential housing next to each gear. Next, find the imprinted letter E on each gear in between the teeth and mark its location on the tape. Then, mark each window or opening on the differential housing with a number 1-3. For example:







    Next, remove the rods on which the gears turn.



    Wrap each gear in tape and label its location (top/bottom and window number):





    With the gears removed and labeled, only the guts of the differential remain. This is the washer stack, the part we will be modifying. Pull it out, and keep the washers in order like so:







    In top to bottom order, the stock washer materials and rough thickness measurements should be as follows:

    * bronze - 1.96mm (can also be teflon coated instead of bronze for T2 version # 01E 409 751 E, but the sizing is identical and it doesn't change the mod)
    steel 4.14mm
    GEAR
    steel 1.56mm
    * teflon coated 1.96mm
    steel 1.58mm
    GEAR
    steel 4.74mm
    steel (darker and slotted) 1.98mm
    steel 4.78mm

    The hardened steel aftermarket washers replace the bronze and teflon coated washers, marked with *s in the above list. Simply swap them out and reassemble! Once the gears are back on but before the spirol pins are in, make sure the gears turn relatively smoothly (i.e. don't lock up, there will be some friction since at this point the diff. isn't lubed.)
    Last edited by slowww328; 12-26-2011 at 08:10 AM.

  2. #2
    Veteran Member Three Rings RusS4's Avatar
    Join Date
    Nov 14 2006
    AZ Member #
    13370
    My Garage
    2000 Audi S4,1980 VW Caddy,05 R1
    Location
    VA

    Great write up man! Definitely bookmarked.
    Tial 605's EPL Tuned
    Lots of other goodies.

  3. #3
    Veteran Member Four Rings Bimmerchop's Avatar
    Join Date
    Aug 23 2004
    AZ Member #
    3243
    My Garage
    2000 BMW 328i
    Location
    CT

    Imaginary rep coming your way
    Rich | 2001.5 EPL stg III+ TiAL 605.2 Pearl White S4 | Flickr

    EPL | ER | SDR | APR | Stratmosphere | 034 | ASP | SPEC | Fidanza | STaSIS | H-Sport | AWE | H&R | StopTech | Fikse

  4. #4
    Forum Moderator Four Rings Gumby's Avatar
    Join Date
    Sep 06 2008
    AZ Member #
    32779
    Location
    Bellingham, WA

    slowww328, i copied this into the FAQ/DIY section. if you have a problem with this PM me and i'll take it down.
    -Matt-
    B5 S4, B5 A4 Moderator


    2001 static, 6mt swapped, stage 3 allroad on a diet -parted out
    2871r'd 2001 A4 1.8t -garage queen Build thread


    You may think I'm not online. But I'm always here. Even if I'm not posting. I'm always here. Scrolling. Judging.

  5. #5
    Veteran Member Four Rings Vinchenzo51's Avatar
    Join Date
    Jan 31 2010
    AZ Member #
    54269
    My Garage
    S-Line A6
    Location
    East Haven, CT

    Wow, well written and informative.

    Bookmarked for sure.

  6. #6
    Active Member Two Rings
    Join Date
    Jul 23 2010
    AZ Member #
    61823
    Location
    NH

    Thanks guys, let me know if you see anything that needs improvement.
    Last edited by slowww328; 07-09-2011 at 06:36 AM.

  7. #7
    Veteran Member Three Rings DaveS4's Avatar
    Join Date
    Apr 12 2009
    AZ Member #
    41090
    Location
    Nova Scotia, Canada

    Great stuff :)
    2001.5 VAST Stage3 **** Silver * 6 Speed
    2001.5 Completely Stock * Imola * Automagical

  8. #8
    Veteran Member Four Rings BITRBO's Avatar
    Join Date
    Mar 08 2007
    AZ Member #
    16235
    Location
    Mr. Worl-Wye

    Kinda sounds like someone is getting back at one of the "tuners" w/ this write-up...
    '13 C63 AMG -
    '14 Tiguan - sold
    '09 JSW - sold
    '04 GTI - sold
    '01 S4 - sold

  9. #9
    Veteran Member Four Rings
    Join Date
    Sep 27 2007
    AZ Member #
    21383
    My Garage
    00 S4 6sp, 06 Mazda3 HB Auto
    Location
    Columbia, SC

    Nice to see a DIY. I would have to see what the final cost is whenever I decide to do this. The washers are about $75-100 bucks so I wouldn't mind paying in the realms of $200-300 to just git er done.
    00 B5 S4 - K04, Stern Soft MM, Stern Snub, DTS, Neuspeed Rear Sway, Oinkies, GIAC stg 2 XR, Vogtland GT, SSAC copy. Soo... Stg 2.31456?
    06 Mazda3 - Wife's car and autox car

    96 Eclipse GSX - Gone
    03 Acura CL Type S - Gone
    96 Soarer GT - Gone
    93 RX7 R1 - Gone and missing her

  10. #10
    Registered User Four Rings Scotty@Advanced's Avatar
    Join Date
    May 16 2008
    AZ Member #
    28845
    Location
    South Texas

    great tech article however
    bronze washers will work great but will wear out quickly.
    you need to use hardened steel washers that are precision gounr and absolutley flat.
    also we've seen some diff require slightly thicker shims to compensate for wear and prvent clunking issues.

    as dimcorner said the washers themselves are pretty expensive when having small qtys made and for slightly more than the cost of the washers you get a drop in diff and a warranty.

  11. #11
    Veteran Member Four Rings Seerlah's Avatar
    Join Date
    Dec 05 2007
    AZ Member #
    23104
    Location
    A place between here and there

    There is a guy on VW Vortex sellng the washers for $55 shipped. I plan on having my mechanic place them in at the same time he does my clutch (when????), but they can be def sought our for cheap.
    Last edited by Seerlah; 07-10-2011 at 01:04 AM. Reason: drunk posting FTW; carry on peoples
    I hate it when my car acts like a little bitch, treating me like a bitch

  12. #12
    Active Member Two Rings
    Join Date
    Jul 23 2010
    AZ Member #
    61823
    Location
    NH

    Quote Originally Posted by Scotty@Advanced View Post
    great tech article however
    bronze washers will work great but will wear out quickly.
    you need to use hardened steel washers that are precision gounr and absolutley flat.
    also we've seen some diff require slightly thicker shims to compensate for wear and prvent clunking issues.

    as dimcorner said the washers themselves are pretty expensive when having small qtys made and for slightly more than the cost of the washers you get a drop in diff and a warranty.
    The replacements are hardened steel, not bronze. This is not just for durability, however, it's for surface texture and friction properties as well. One of the two stock washers you replace in the S4 diff. is bronze. Why Audi/Torsen chose to use bronze as opposed to a second teflon coated washer, I don't know. I would imagine it's for fine tuning the TBR. In any case, the steel replacements should actually exhibit better longevity than the softer stock washers (not that it matters, they don't go bad.)

    150k mile Torsens out of the older 01As with the needle bearings invariably look brand new. In the newer 01As and the S4s, you can see very minor wear on the teflon coated washer, but nothing serious. These diffs are bulletproof. But the beauty of this mod is that the teflon washer gets replaced anyway. Shouldn't be any problems with slop in the washer stack unless you're burning the teflon off your washers like the community used to do to avoid paying $350-550 for this mod. Torsen definitely makes one of the best products in an Audi car - the tolerances and machining are phenomenal. Solid American company.

    For me, $55-70 vs. $350-550 is more than a slight difference, but perhaps it isn't to you.

    Quote Originally Posted by Dimcorner View Post
    Nice to see a DIY. I would have to see what the final cost is whenever I decide to do this. The washers are about $75-100 bucks so I wouldn't mind paying in the realms of $200-300 to just git er done.
    If you can get one for $200 w/ a warranty, that's a killer deal. The cheapest I could find was JHM @ $350 + shipping the diff. there + $50 for transmission fluid + core, and that's assuming you don't pay a mechanic to do the swap for you. They also don't modify the older A4 diffs, so my '98 was SOL unless I wanted to pay $550 to StaSIS. In the end, I did the mod myself for just over $100 including trans fluid for my A4, and about $20 more for my S4. Not bad considering I needed to change the fluid anyway. It's not for everyone though - it's pretty technical. If you don't have the chops but you've got the cash, JHM and StaSIS are expensive, but very good, options.
    Last edited by slowww328; 07-10-2011 at 09:25 AM.

  13. #13
    Veteran Member Three Rings bw86's Avatar
    Join Date
    Dec 06 2008
    AZ Member #
    36039
    My Garage
    2.0L 058
    Location
    LI

    thanks for the diy

    2008cc - PTE6262 - Lugtronic - ID1700Xs - IECVA1s
    --> first start <--



  14. #14
    Established Member Two Rings
    Join Date
    Feb 25 2010
    AZ Member #
    55124
    Location
    Norway

    do you notice any difference in everyday driving? Would love to reduce my understear for sure!

  15. #15
    Veteran Member Four Rings GetBoosted84's Avatar
    Join Date
    Apr 10 2007
    AZ Member #
    17178
    My Garage
    01 Audi A4 1.8T Quattro / 88 Mazda RX-7 GXL
    Location
    Eastern PA

    Quote Originally Posted by Scotty@Advanced View Post
    great tech article however
    bronze washers will work great but will wear out quickly.
    you need to use hardened steel washers that are precision gounr and absolutley flat.
    also we've seen some diff require slightly thicker shims to compensate for wear and prvent clunking issues.

    as dimcorner said the washers themselves are pretty expensive when having small qtys made and for slightly more than the cost of the washers you get a drop in diff and a warranty.
    I'm sorry to be the bearer of bad news but I have been running these since 09/2010 and put a ton of hard miles on the car and I have had zero issues.

    Also, had Stasis mod my diff for me before getting these washers and I pulled apart the diff they modded. I can say without a doubt that the washers were exactly the same.

  16. #16
    Registered User Four Rings Scotty@Advanced's Avatar
    Join Date
    May 16 2008
    AZ Member #
    28845
    Location
    South Texas

    Quote Originally Posted by GetBoosted84 View Post
    I'm sorry to be the bearer of bad news but I have been running these since 09/2010 and put a ton of hard miles on the car and I have had zero issues.

    Also, had Stasis mod my diff for me before getting these washers and I pulled apart the diff they modded. I can say without a doubt that the washers were exactly the same.
    Unless you put over 125,000 miles on it in the 8 months you've had this your experience isn't as accurate as the high mileage modded diffs we've torn apart. Thanks for the comment though.

  17. #17
    Registered User Four Rings Scotty@Advanced's Avatar
    Join Date
    May 16 2008
    AZ Member #
    28845
    Location
    South Texas

    Quote Originally Posted by slowww328 View Post
    The replacements are hardened steel, not bronze. This is not just for durability, however, it's for surface texture and friction properties as well. One of the two stock washers you replace in the S4 diff. is bronze. Why Audi/Torsen chose to use bronze as opposed to a second teflon coated washer, I don't know. I would imagine it's for fine tuning the TBR. In any case, the steel replacements should actually exhibit better longevity than the softer stock washers (not that it matters, they don't go bad.)

    150k mile Torsens out of the older 01As with the needle bearings invariably look brand new. In the newer 01As and the S4s, you can see very minor wear on the teflon coated washer, but nothing serious. These diffs are bulletproof. But the beauty of this mod is that the teflon washer gets replaced anyway. Shouldn't be any problems with slop in the washer stack unless you're burning the teflon off your washers like the community used to do to avoid paying $350-550 for this mod. Torsen definitely makes one of the best products in an Audi car - the tolerances and machining are phenomenal. Solid American company.

    For me, $55-70 vs. $350-550 is more than a slight difference, but perhaps it isn't to you.

    If you can get one for $200 w/ a warranty, that's a killer deal. The cheapest I could find was JHM @ $350 + shipping the diff. there + $50 for transmission fluid + core, and that's assuming you don't pay a mechanic to do the swap for you. They also don't modify the older A4 diffs, so my '98 was SOL unless I wanted to pay $550 to StaSIS. In the end, I did the mod myself for just over $100 including trans fluid for my A4, and about $20 more for my S4. Not bad considering I needed to change the fluid anyway. It's not for everyone though - it's pretty technical. If you don't have the chops but you've got the cash, JHM and StaSIS are expensive, but very good, options.
    Not too sure where you got your pricing information... 01E center diffs $275.00 shipped

    These diffs are pretty stout but they can develop internal issues, the worm gears can eat away at the pinion gears eventually leading to them failing, and the shim packs do wear over time, taking apart one diff and then using it as an example for all diffs is a pretty bad representative sample. I've seen a few exploded units as well. There are also a couple of older posts of a couple modded Stasis units giving up the ghost.

    Quote Originally Posted by GetBoosted84 View Post
    I'm sorry to be the bearer of bad news but I have been running these since 09/2010 and put a ton of hard miles on the car and I have had zero issues.

    Also, had Stasis mod my diff for me before getting these washers and I pulled apart the diff they modded. I can say without a doubt that the washers were exactly the same.
    Your experience is very limited get back to us after 125,000 miles of use on a bronze shimmed diff.

    Great tech write up!

  18. #18
    Active Member Two Rings
    Join Date
    Jul 23 2010
    AZ Member #
    61823
    Location
    NH

    Quote Originally Posted by avusen View Post
    do you notice any difference in everyday driving? Would love to reduce my understear for sure!
    Night and day. It's the way the car should have been from the factory. It feels much more confident coming out of turns - more planted. At the limit, you have more control with your right foot. On the downside, it will bring out the weakness of the open diff in the rear if you track it hard, but that's better than the ever famous Quattro understeer. If you want the real deal, do a 4:1 mod and then find a way to get a limited slip diff in the rear .

    Quote Originally Posted by Scotty@Advanced View Post
    Unless you put over 125,000 miles on it in the 8 months you've had this your experience isn't as accurate as the high mileage modded diffs we've torn apart. Thanks for the comment though.
    Considering he used precision ground hardened steel washers (as I did) in exactly the same way StaSIS does, I would say the method has far more than 125,000 total miles of testing (which you also benefit from, by the way.) But regardless, if you're using steel washers... and he used steel washers... doesn't your experience support his point, not go against it? Anyway, if something is going to wear out, it's incredibly unlikely to be your differential. Like I said earlier, these things are bulletproof.

    Quote Originally Posted by Scotty@Advanced View Post
    Your experience is very limited get back to us after 125,000 miles of use on a bronze shimmed diff.
    Don't spread misinformation. NOBODY uses bronze washers. These are precision ground hardened steel, the same as yours.

    Quote Originally Posted by Scotty@Advanced View Post
    Not too sure where you got your pricing information... 01E center diffs $275.00 shipped
    Fair enough. $55-70 vs. $275 from Advanced Automotion. I think I'll still do it myself, and I hope this DIY helps others who feel similarly. Please don't pollute my thread in which I try to help other AudiZine members save money and enjoy working on their cars. After all, isn't that what this forum is about?
    Last edited by slowww328; 07-10-2011 at 02:24 PM.

  19. #19
    Veteran Member Four Rings GetBoosted84's Avatar
    Join Date
    Apr 10 2007
    AZ Member #
    17178
    My Garage
    01 Audi A4 1.8T Quattro / 88 Mazda RX-7 GXL
    Location
    Eastern PA

    Quote Originally Posted by Scotty@Advanced View Post
    These diffs are pretty stout but they can develop internal issues, the worm gears can eat away at the pinion gears eventually leading to them failing, and the shim packs do wear over time, taking apart one diff and then using it as an example for all diffs is a pretty bad representative sample. I've seen a few exploded units as well. There are also a couple of older posts of a couple modded Stasis units giving up the ghost.
    Taking apart a stasis diff to see the washers they installed then comparing them to the ones that I got from the guy on Vortex to ensure they are the same (EXACT) size, material, and finish isn't a good way to check and see if the washers are the same? Same weight too :-). I'm thorough. So that's a bad sample? Really... how exactly would you have gone about it any different?

    Quote Originally Posted by Scotty@Advanced View Post
    Your experience is very limited get back to us after 125,000 miles of use on a bronze shimmed diff.
    I think we already established that it's not a bronze washer.

  20. #20
    Registered User Four Rings Scotty@Advanced's Avatar
    Join Date
    May 16 2008
    AZ Member #
    28845
    Location
    South Texas

    Quote Originally Posted by slowww328 View Post
    Considering he used precision ground hardened steel washers (as I did) in exactly the same way StaSIS does, I would say the method has far more than 125,000 total miles of testing (which you also benefit from, by the way.) But regardless, if you're using steel washers... and he used steel washers... doesn't your experience support his point, not go against it? Anyway, if something is going to wear out, it's incredibly unlikely to be your differential. Like I said earlier, these things are bulletproof.
    A misunderstanding on my part. But my comment on these diffs being bullet proof are still valid, they are stout but bulletproof.. They are not.

    Quote Originally Posted by slowww328 View Post
    Don't spread misinformation. NOBODY uses bronze washers. These are precision ground hardened steel, the same as yours.
    I'm not spreading mis information. Your wrong also as Torsen Issued a DIY modification guide on how to mod the 01A diff and specified a hard bronze washer. This is what I was basing my comments off. Visit http://www.motorgeek.com/viewtopic.php?t=7037 for an excerpt from torsen.com.


    Quote Originally Posted by slowww328 View Post
    Please don't pollute my thread in which I try to help other AudiZine members save money and enjoy working on their cars. After all, isn't that what this forum is about?
    I wasn't polluting your thread, I can appreciate it and support the do-it-yourselfer. Just dispelling some inaacuracies in this thread. Although I did misunderstand the use of bronze shims, that's my bad.



    Quote Originally Posted by GetBoosted84 View Post
    Taking apart a stasis diff to see the washers they installed then comparing them to the ones that I got from the guy on Vortex to ensure they are the same (EXACT) size, material, and finish isn't a good way to check and see if the washers are the same? Same weight too :-). I'm thorough. So that's a bad sample? Really... how exactly would you have gone about it any different?
    My comment wasn't in response to yours. I mis understood about the bronze washers. I thought the OP used bronze as a replacement washer.

  21. #21
    Active Member Two Rings
    Join Date
    Jul 23 2010
    AZ Member #
    61823
    Location
    NH

    Quote Originally Posted by Scotty@Advanced View Post
    I'm not spreading mis information. Your wrong also as Torsen Issued a DIY modification guide on how to mod the 01A diff and specified a hard bronze washer.
    No, I'm not.

    Quote Originally Posted by www.torsen.com
    For the M021-DHU, the needle bearings between the side gears and housing/cap can be replaced with steel washers of the same dimensions. Another variation would be to replace only the bearing on the left side of the differential (as installed in the car) with a steel washer.
    Torsen suggests steel washers for 4:1 modifications. The posters in the link you provided misinterpret Torsen's website. The bronze washers in the cited table are meant to be replacements for stock washers, they are not meant to be used for modifying the differential. You can see a copy of this table on Torsen's website here. Note the table's title (which those users neglected to copy over to their posts) - "Washer Replacement Parts".

  22. #22
    Established Member Two Rings
    Join Date
    Jun 12 2011
    AZ Member #
    76789
    Location
    Italy

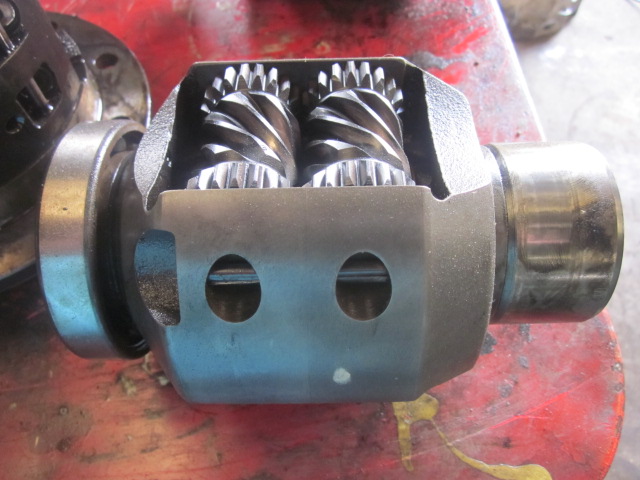

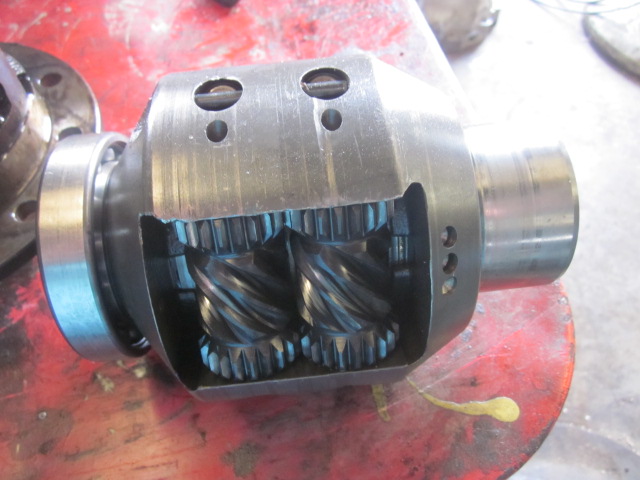

    This is my interior Torsen:



    Uploaded with ImageShack.us

    I have no washer bronze,
    but two Teflon coated steel

    From top
    I have a washer in more than steel from 3.16 mm

    see photo

  23. #23
    Active Member Two Rings
    Join Date
    Jul 23 2010
    AZ Member #
    61823
    Location
    NH

    I take it this is an S4? What year?

    Quote Originally Posted by lucky
    From top
    I have a washer in more than steel from 3.16 mm
    Meaning you have an extra steel washer on top of the stack that is 3.16mm? Maybe there is one and I just didn't remove it from the diff. Either way, so long as the teflon/bronze washers are both 1.96mm (or close to that) then you shouldn't have any problems replacing them. As long as there's less than 0.20mm of total wiggle room in the stack, you're within Torsen's specifications. Can you reply with their thicknesses?

  24. #24
    Registered User Four Rings Scotty@Advanced's Avatar
    Join Date
    May 16 2008
    AZ Member #
    28845
    Location
    South Texas

    Quote Originally Posted by slowww328 View Post
    I take it this is an S4? What year?

    Meaning you have an extra steel washer on top of the stack that is 3.16mm? Maybe there is one and I just didn't remove it from the diff. Either way, so long as the teflon/bronze washers are both 1.96mm (or close to that) then you shouldn't have any problems replacing them. As long as there's less than 0.20mm of total wiggle room in the stack, you're within Torsen's specifications. Can you reply with their thicknesses?
    There are a few different variations of torsen, one with a single bronze shim in the middle, one with two teflon coated shims, one with a bronze and teflon shim and one with two teflon shims but the shims are much thinner than the previous versions. There maybe more versions but these 4 are the only ones I've handled.

  25. #25
    Veteran Member Four Rings GetBoosted84's Avatar
    Join Date
    Apr 10 2007
    AZ Member #
    17178
    My Garage
    01 Audi A4 1.8T Quattro / 88 Mazda RX-7 GXL
    Location
    Eastern PA

    Quote Originally Posted by Scotty@Advanced View Post
    Your experience is very limited get back to us after 125,000 miles of use on a bronze shimmed diff.
    Hey Scott, I wanted to ask if you have any details of testing that Advanced has done on their diffs? I'd love to see the information you folks have taken over the course of 125k miles you referenced. Perhaps some photos and some information on what kind of testing you have done would be really helpful for the community.

  26. #26
    Registered User Four Rings Scotty@Advanced's Avatar
    Join Date
    May 16 2008
    AZ Member #
    28845
    Location
    South Texas

    Quote Originally Posted by GetBoosted84 View Post
    Hey Scott, I wanted to ask if you have any details of testing that Advanced has done on their diffs? I'd love to see the information you folks have taken over the course of 125k miles you referenced. Perhaps some photos and some information on what kind of testing you have done would be really helpful for the community.
    Being that the bias testing machine cost a hair over 300 grand, I just have decreased lap times and positive customer impressions.

    The 125,000mile remark was an referring to an instance in which I overhauled a gearbox which had a modified diff with some worn bronze shims in it.
    Last edited by Scotty@Advanced; 07-14-2011 at 08:18 PM.

  27. #27
    Active Member Two Rings
    Join Date
    Jul 23 2010
    AZ Member #
    61823
    Location
    NH

    Quote Originally Posted by Scotty@Advanced View Post
    There are a few different variations of torsen, one with a single bronze shim in the middle, one with two teflon coated shims, one with a bronze and teflon shim and one with two teflon shims but the shims are much thinner than the previous versions. There maybe more versions but these 4 are the only ones I've handled.
    Yeah, I gather there can be either double teflon or one teflon one bronze, but that the washers are all the same size. This difference is reflected in the P/N on the T2 styled diff. The exception is the pre-2000 S4s, which CAN have a different stack altogether (type T1, although these cars can have T2s, just have to pull the diff. and check) For the T2 diffs, the same mod washers can be used.

    Quote Originally Posted by JHM
    NOTE: For 6-speed (01E) transmissions: We can only perform the FULL modification on the T2 style differentials originally equipped in 2000 and newer B5 S4s, C5 A6s, C5 Allroads and B6 A4 (3.0L only, 02-early 03). These T2 diffs have one of the following PNs on the outer case; 01E 409 751 E or 01E 409 751 F. Some of the pre 2000 diffs may be T2 diffs and have these part numbers as well. For those the full modification could be performed. If your diff is older and does not have one of these part numbers or has NO part number at all then it is most likely a T1 style diff.
    Last edited by slowww328; 07-15-2011 at 10:03 AM.

  28. #28
    Established Member Two Rings
    Join Date
    Jun 12 2011
    AZ Member #
    76789
    Location
    Italy

    Hi,
    Yes,S4 1998 years

  29. #29
    Established Member Two Rings
    Join Date
    Jun 12 2011
    AZ Member #
    76789
    Location
    Italy

    Quote Originally Posted by slowww328 View Post
    I take it this is an S4? What year?



    Meaning you have an extra steel washer on top of the stack that is 3.16mm? Maybe there is one and I just didn't remove it from the diff. Either way, so long as the teflon/bronze washers are both 1.96mm (or close to that) then you shouldn't have any problems replacing them. As long as there's less than 0.20mm of total wiggle room in the stack, you're within Torsen's specifications. Can you reply with their thicknesses?
    Hi,
    Yes,S4 1998 years

    Thickness from the top:

    3,16 steel
    1,96 steel teflon
    3,20 steel
    gear
    1,53 steel
    1,96 steel teflon
    1,54 steel
    gear
    4,73 steel
    1,96 steel (darker and slotted)
    4,73 steel
    They are measures approx mm

  30. #30
    Established Member Two Rings
    Join Date
    Jun 12 2011
    AZ Member #
    76789
    Location
    Italy

    Quote Originally Posted by slowww328 View Post
    Yeah, I gather there can be either double teflon or one teflon one bronze, but that the washers are all the same size. This difference is reflected in the P/N on the T2 styled diff. The exception is the pre-2000 S4s, which have a different stack altogether (type T1.) For the T2 diffs, the same mod washers can be used.
    I have a Torsen T2 number 01E 409 751E

    My S4 is pre-facelift, but I live in Italy
    Perhaps this is different for European car

  31. #31
    Active Member Two Rings
    Join Date
    Jul 23 2010
    AZ Member #
    61823
    Location
    NH

    Quote Originally Posted by lucky View Post
    I have a Torsen T2 number 01E 409 751E

    My S4 is pre-facelift, but I live in Italy
    Perhaps this is different for European car
    Well, it still has a Torsen T2 so these washers will work. The washers you need to replace are the same size as in the differential I modded.
    Last edited by slowww328; 07-15-2011 at 10:02 AM.

  32. #32
    Registered User Four Rings Scotty@Advanced's Avatar
    Join Date
    May 16 2008
    AZ Member #
    28845
    Location
    South Texas

    If your diff looks like this, the different versions share the same shim dimensions.


    If your diff looks like this (found in later generation 01E's) the shims are a different thickness.

  33. #33
    Active Member Two Rings
    Join Date
    Jul 23 2010
    AZ Member #
    61823
    Location
    NH

    Gotcha. That's a B6 S4 diff. then?

  34. #34
    Registered User Four Rings Scotty@Advanced's Avatar
    Join Date
    May 16 2008
    AZ Member #
    28845
    Location
    South Texas

    Quote Originally Posted by slowww328 View Post
    Gotcha. That's a B6 S4 diff. then?
    Nope it's an very late model 01E diff (mfg dates after 2002), typically only found in euro boxes or the B6 01E equipped cars.

    The B6 S4 cars used an 0A3 box. That stasis website uses and 01E diff in the picture.

  35. #35
    Active Member Two Rings
    Join Date
    Jul 23 2010
    AZ Member #
    61823
    Location
    NH

    Quote Originally Posted by Scotty@Advanced View Post
    Nope it's an very late model 01E diff (mfg dates after 2002), typically only found in euro boxes or the B6 01E equipped cars.

    The B6 S4 cars used an 0A3 box. That stasis website uses and 01E diff in the picture.
    I see. Not B5 S4 euro boxes though, correct? After all, they stopped making the B5 S4 worldwide in September 2001.

  36. #36
    Registered User Four Rings Scotty@Advanced's Avatar
    Join Date
    May 16 2008
    AZ Member #
    28845
    Location
    South Texas

    Quote Originally Posted by slowww328 View Post
    I see. Not B5 S4 euro boxes though, correct? After all, they stopped making the B5 S4 worldwide in September 2001.
    No I've seen them in B5 S4 gearboxes as well but I think most if not all of them were factory remans gearboxes. The 01E was used up until the 2005 model year in the Allroad but phased out in the rest of the model line in 2004.

  37. #37
    Active Member Two Rings
    Join Date
    Jul 23 2010
    AZ Member #
    61823
    Location
    NH

    Quote Originally Posted by Scotty@Advanced View Post
    No I've seen them in B5 S4 gearboxes as well but I think most if not all of them were factory remans gearboxes. The 01E was used up until the 2005 model year in the Allroad but phased out in the rest of the model line in 2004.
    Oh right, cool.

  38. #38
    Established Member Two Rings
    Join Date
    Jun 12 2011
    AZ Member #
    76789
    Location
    Italy

    This is my Torsen:


  39. #39
    Active Member Two Rings
    Join Date
    Jul 23 2010
    AZ Member #
    61823
    Location
    NH

    Yup, B5 S4 T2 diff. like the first pic Scotty posted.

  40. #40
    Veteran Member Three Rings papuc14369's Avatar
    Join Date
    Apr 06 2008
    AZ Member #
    27350
    Location
    NorCal

    Bookmarked for sure!
    2001.5 Audi S4 - Santorin Blue - Stage 1 & dearly missed - RIP
    2000 Audi S4 - Nogaro Blue - Tial 770r - SOLD
    2001.5 Audi S4 - Black Avant - Bone Stock - SOLD
    2001.5 Audi S4 - Nogaro Blue Avant - Stage 3 RS6 Turbo - Daily Driven
    2000 Audi S4 - Laser Red - Sold

Page 1 of 4 123 ... LastLast


Bookmarks

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •


    © 2001-2019 Audizine, Audizine.com, and Driverzines.com
    Audizine is an independently owned and operated automotive enthusiast community and news website.
    Audi and the Audi logo(s) are copyright/trademark Audi AG. Audizine is not endorsed by or affiliated with Audi AG.
