V6 Exhaust Pictures or Drawings

[Sandeman]

Ive been searching for quite some time, and i was wondering if you guys that own the 3.2 VR6 MK2 TT had any pictures or drawings of the exhaust for research i am doing about upgrading my exhaust. I would love to put my car up on a lift, but unfortunately i dont have access to one for a while and ramps are not an option aswell.

if anyone can help that would be greatly appriciated!

-TJ

[Sandeman]

Not a lot of help on here so i might as well help out ppl in the future if they do need it..Ive compillied a couple of diagrams and some photos in regards to it and felt it would be beneficial to this section of Audizine.
Thanks again coneem, and others of AutoUnity/TT-Talk
Without any further delay:

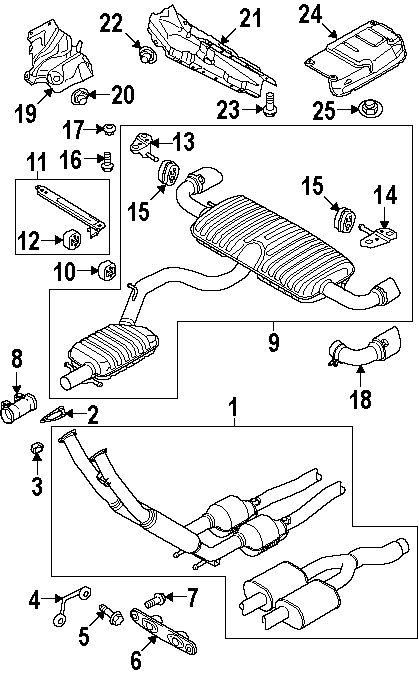

The Image you would get from the ETKA:

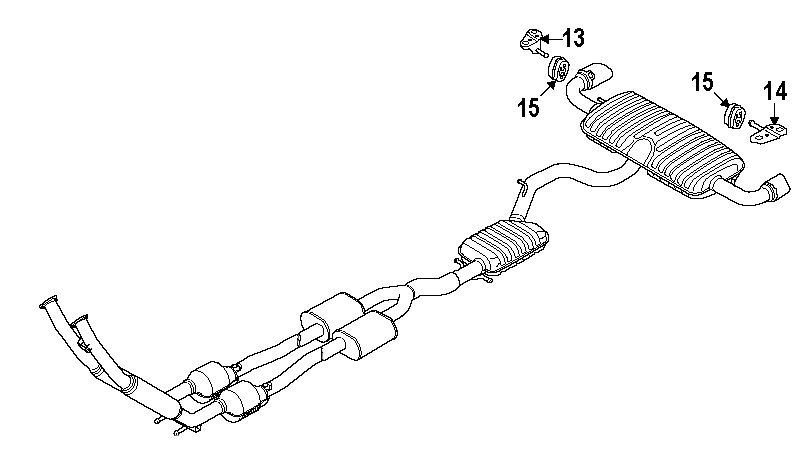

Exhaust Laid Out:


Photos:

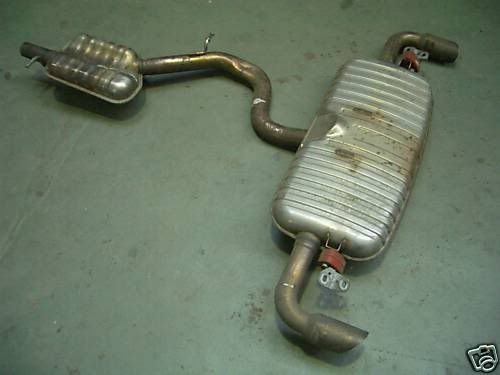

Obviously the resonator and the HUGE muffler

[Sandeman]

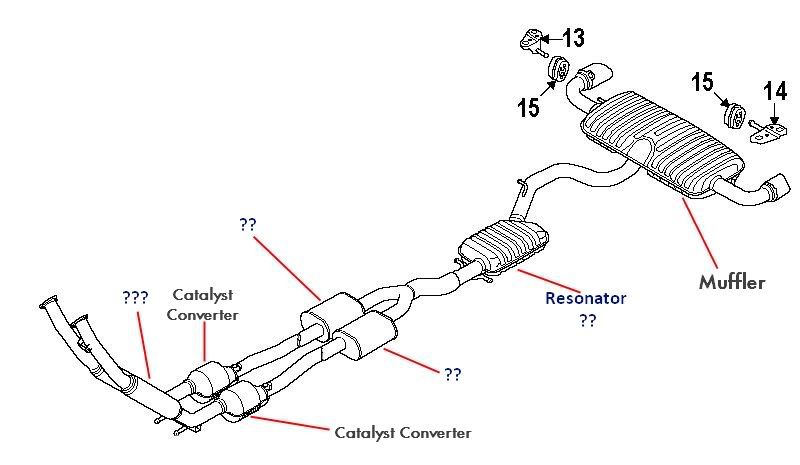

now that im looking back at it, i cant seem to indentify some of the parts



hopefully u guys can help me out

please do

[Mantvis]

idk is it me, or the TT section is dying? :((

[Sandeman]

idk is it me, or the TT section is dying? :((

im with ya Mantvis, im trying to make it as lively as the S4 sections, but i see its a lost cause on here

[norsecarnut]

YAY for TT 3.2 cars ! ;) That exhaust looks restrictive 2 - 1-2 Your notes were correct, downpipes have the two cats, not sure what the intermediate can things are just before the 2-1. Did you ever find a good aftermarket down pipe and exhaust kit?

[HardPark'd TT]

idk is it me, or the TT section is dying? :((

That's because my car is dead lol.

[Sandeman]

YAY for TT 3.2 cars ! ;) That exhaust looks restrictive 2 - 1-2 Your notes were correct, downpipes have the two cats, not sure what the intermediate can things are just before the 2-1. Did you ever find a good aftermarket down pipe and exhaust kit?

i ended up removing the cats which opened up the exhaust note a bit, still very bearable under normal driving, but opens up a bit over 3K rpms. . . i was going to go custom 3", but there is a clearance issue with rear axle/haldex/etc. therefore 2.75" is probably the largest option ive noted. since then ive opted for the sports magnaflow system. replaces the whole cat back portion, replacing the rear resonator and suitcase muffler with a smaller, less restrictive resonator and muffler. it hasnt been released unfortunately, but will be installing it as soon as they release it and i get my hands on it.

off the bat, i can say one of the pros is the weight reduction magnaflow vs. OEM. the suitcase muffler is larger and relatively heavy. with the magnaflow being a fraction of its size in regards to muffler and resonator, i can almost confirm a good difference in weight. magnaflow also claims 9hp/9tq gain.

link for reference:
http://www.magnaflow.com/02product/s...ne=all&id=8744

That's because my car is dead lol.

its a shame! whens it out of surgery?
