B6 A4 Wheel Thread

[nagarob6s4]

Brand/Name: alzor 010
Size: 18x9
Offset: 28
Spacer(s): 6mm front and rear
Camber: none
Tires: Dunlop sport maxx 225 40 18
Suspension: tein stech
Spring Rates:
Ride height:
Fender mods: slightly pulled. Not rolled.
Rubbing: minor rubbing going over bumps with a few passengers
Brake Spec: jhm lwfr




Brand/Name: VMR 710
Size: 18x8.5
Offset: 35
Spacer(s): 3mm in rear
Camber:
Tires: 235 40 18
Suspension: tien s tech
Spring Rates:
Ride height:
Fender mods: none
Rubbing: none
Brake Spec: jhm lwfr

[Swerv911]

Brand/Name: RS4 Reps
Size: 19x9
Spacer(s): None
Camber: None
Tires: Eagle GT's 245 35 19
Suspension: ST Coilovers
Fender mods: None
Rubbing: None

[MNAudi101]

Please guys, no chit chat in this thread, if you have any questions about any set ups or issues either post in another form or make a thread. Will the Moderator please delete all comments and clean this thread up.

[tamuir21]

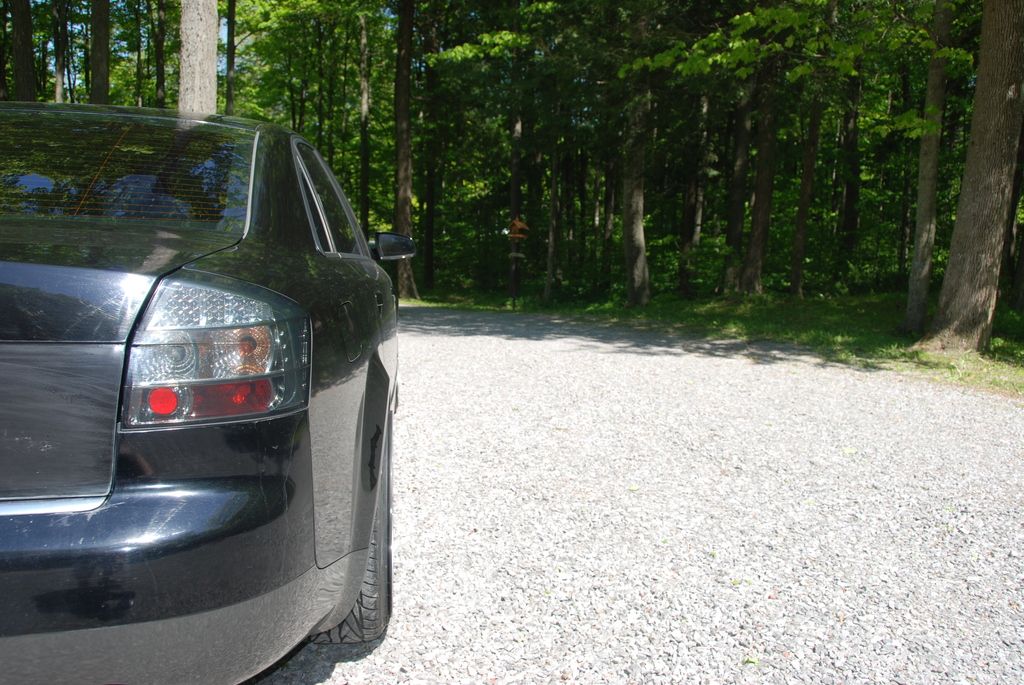

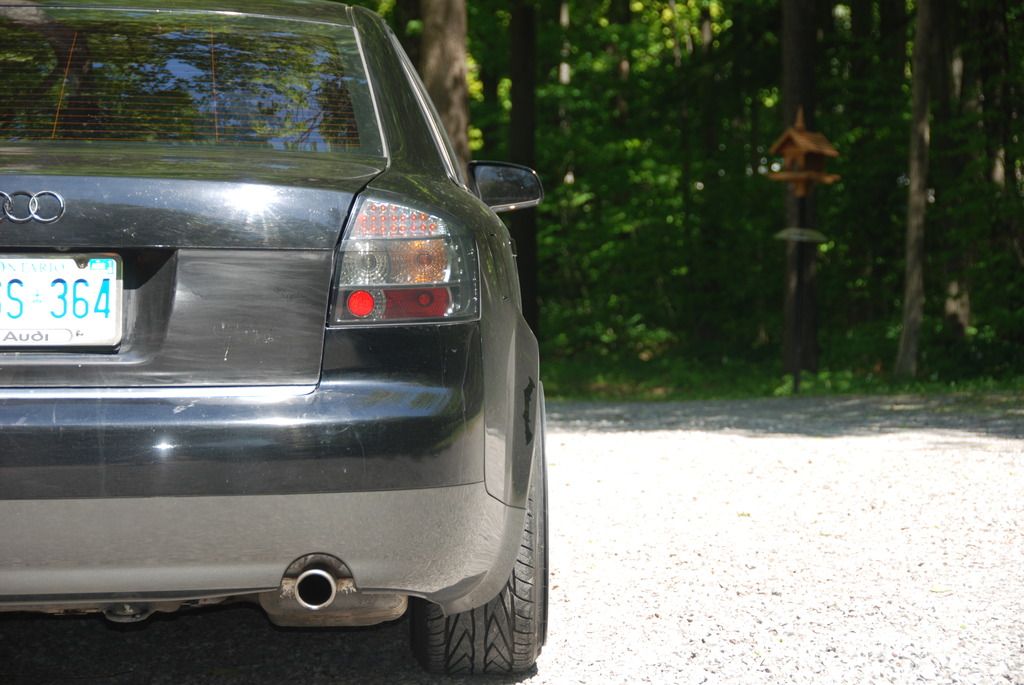

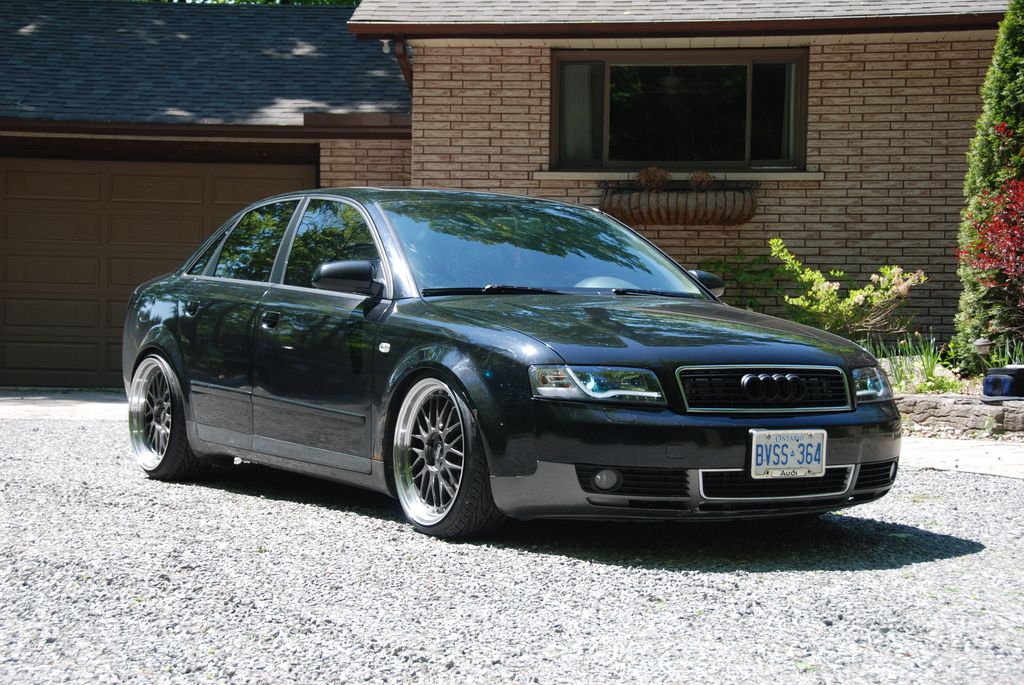

Brand/Name: BBS LM Reps
Size: F 19X8.5 R 19X9.5
Offset: 35
Spacer(s): none
Camber: none

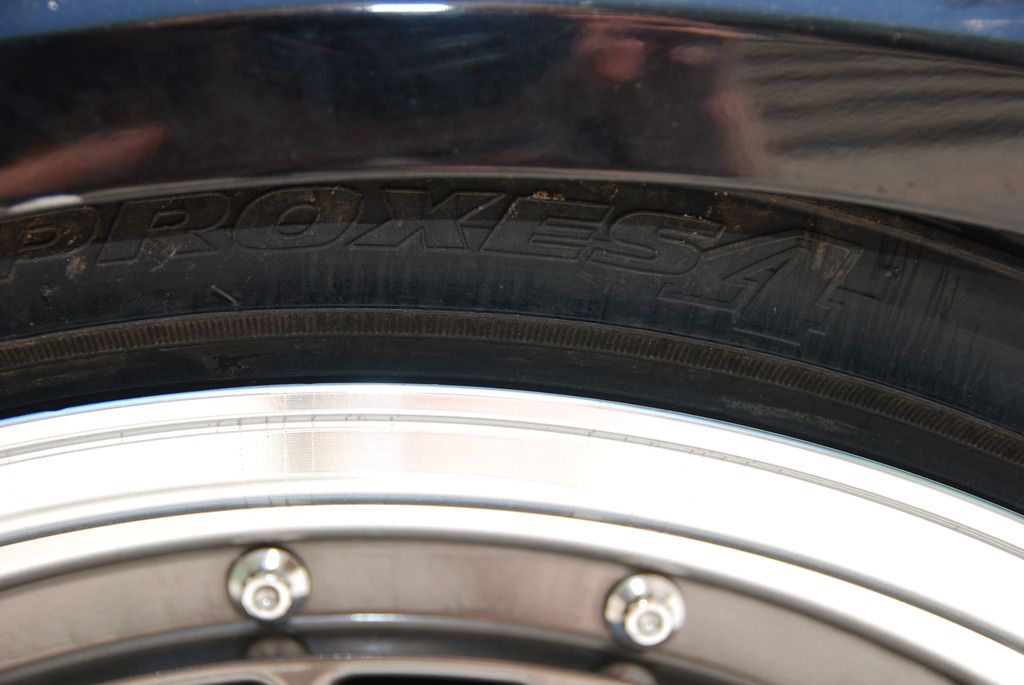

Tires: Toyo Proxes 4 F 215/35/19 R 225/35/19
Suspension: Vmaxx Coils
Fender mods: none
Rubbing: very little



[IMG][/IMG]

[BosseOst]

Brand/Name: JR-11
Size: 19X9.5
Offset: 35
Spacer(s): 5mm
Camber: Maxed camber rear
Tires: Nankang NS-2 225/35
Suspension: XYZ Coils
Fender mods: None
Rubbing: When turning too much on uneven roads. Wheels might touch fenders in the rear if I carry people there, so I don't :D

[devious_a4]

Brand/Name: Status - Judge Chrome
Size: 20 x 8.5
Offset: ET40
Spacer(s): None
Tires: 235/35/20
Suspension: Eibach Pro Springs
Fender mods: None
Rubbing: None

[cschuster]

Brand/Name: RS4 Reps
Size: 18x8.5
Offset: ET35
Spacer(s): None
Tires: 235/40/18 Conti DWS
Suspension: ST
Ride Height: 25'' FTG
Fender mods: None
Rubbing: Only big bumps

[Djels]

My new setup:
Hyperion CVM 19, 8.5J ET35 215/35, 9.5J ET33 225/35, Rear 20 mm spacers

[larry_fopps]

Suspension: H&R Sport Springs and Bilstein Sport Shocks
Wheel Size and ET: 19x8.5 et35
Spacers?: No
Final ET: 35
Tire Model and Size: Bridgestone Potenza RE-050a 235/35/19
Rub: No

[g2096]

Brand/Name: STR 607
Size: 20X9
Offset: ET35
Spacer(s): none
Camber: ????
Tires: 225/35R20
Suspension: ST Coilovers with Hyperco rear springs
Fender mods: Rolled and Pulled
Rubbing: None

[keller1095]

Brand/Name: OEM B6 S4 avus wheels
Size: 18x8
Offset: et45
Spacer(s): N/A
Camber: a little
Tires: Falken
Suspension: BC Racing Type BR coilovers
Spring Rates: 14k front and back
Ride height: Low!!
Fender mods: N/A
Rubbing: a little
Brake Spec: Stock

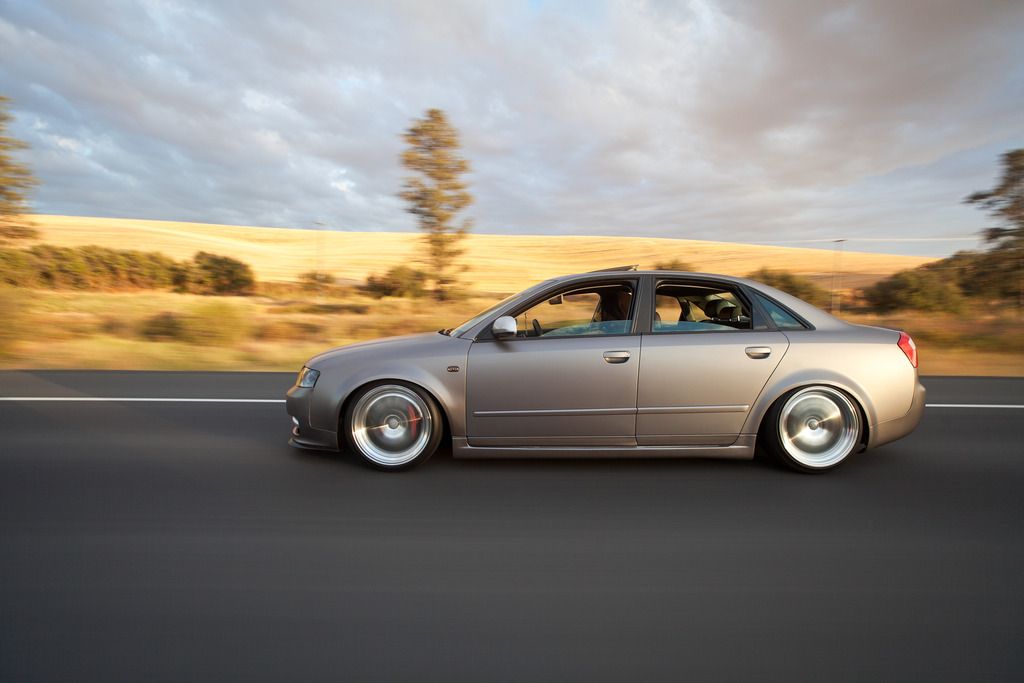

[IMG]21006_1106863589341553_173891096717297801_n by Matt Keller, on Flickr[/IMG]

[A4SlineWA]

Brand/Name: VMR V710
Size: 18x18.5
Offset:+35
Spacer(s): none...soon 10mm in the rear
Camber:
Tires: 235/40/18
Suspension: USP...soon to be H&R or Eibach
Spring Rates: USP
Ride height:
Fender mods: none
Rubbing: none
Brake Spec: USP

[B6ayfour]

Brand/Name: RS4 Reps
Size: 18x8
Offset:
Spacer(s): none
Camber: none
Tires: 235 45 18
Suspension: 02 sport suspension
Spring Rates:
Ride height:
Fender mods: none
Rubbing: over big bumps
Brake Spec: stock

[mauromj]

Brand/Name: CCW Reps
Size: 18x9.5
Offset: et25 all around
Spacer(s): none
Camber: Lots in the back. Whatever lowering did to the front with OEM control arms
Tires: 215 40 18
Suspension: ST Coilovers
Spring Rates: Stock up front. 800lb 6in springs in back.
Ride height: Low. Think I am in the 23in FTG range.
Fender mods: Rolled. "Pulled" as much as I could with a fender roller.
Rubbing: None in back. Slight amount in front on turns + bumps.
Brake Spec: B5 HP2

[jman41]

Brand/Name: CCW LM5T
Size: 18x9.5/18x10
Offset: +20
Spacer(s): None
Camber: -2.3° front and -3.5° rear
Tires: Hankook V12 215/40
Suspension: ST coilovers
Fender mods: Fronts rolled
Rubbing: Fronts rubbed turning at full lock - Rear tire rub inside wheel-well over large bumps at highway speed






Brand/Name: Rotiform NUE
Size: 19x10
Offset: +35
Spacer(s): None
Camber: -2.3° front and -3.5° rear
Tires: Continental ExtremeContact DWS 225/35
Suspension: ST coilovers
Fender mods: Fronts rolled - Rears lightly pulled
Rubbing: None

[w0ady]

Almost forgot to post here!

Brand/Name: Alzor Style 620 (Peeler reps)
Size: 18x8 square
Offset: 35
Spacers: 8mm front, 5mm rear
Camber:
Tires: 235/40/18 Sumitomo HTR Z III
Suspension: Neuspeed springs, OEM shocks front, Koni Yellows rear
Spring Rates:
Ride height:
Fender mods:
Rubbing: large bumps, but want to add Koni Yellows up front and stiffen them up

[jesse500]

Question:

I was looking into running 19 x 8.5 Front (ET35) and 19 x 9.5 rear (ET 38) on a 04 A4Q Sedan. Stock USP sport suspension (will remain at that height). Seems guys are running 9.5's after some googling, but I don't want to roll/pull fenders. Will a 9.5" on the rear fit with a little wider tire? What would be a good matched (size/height/diameter) tire for front & rear. Say 235/35/19 front, 265/30/19 rear. Would a 265/30/19 fit on the back on the car, without rubbing? Fender or suspension? Am I limited to 235's on the front? Or would say a 245/35/19 fit? Would the tire size be too far off for the AWD system? 25.26" for the 265's, 25.48 on the 235's, I can't see 0.22" making much a difference, heck, I'm sure thats almost a bias between brands, for same listed tire size.

https://www.tacomaworld.com/tirecalc...0r19-235-35r19

[xciso]

Hi. I have a Audi A4 B6 2004 1.8TS Quattro (limo).
I have found new nice wheels to a verry good price, but I dont know if they will fit.
They have 2 different wheels.

1. 9.5x19 ET20 - Will this work to my car? If not.. do you think will work with small mods like fender rolling?

2. 8.5x19 ET47 - This I think will fit, but will it looks good with ET47? Yes I can use about 15mm spacer, but i think the bearing will take damage with so thick spacer.

Thanks. :)

[sashoxx]

Brand/Name: BMW X5 style 132. made by ronal
Size: 9x19 front. 10x19 rear
Offset: et48-15 front, et45-15 rear
Spacer(s): 15mm adapter 120 to 112
Camber: -3ish at the back
Tires: Maxtrek ingens 225/35
Suspension: FK AK Coilovers
Spring Rates:
Ride height: low
Fender mods: none
Rubbing: at the back. rim hits arch sometimes :D
Brake Spec: stock

[lovemyawd]

[IMG][/IMG]




Brand/Name: Alzor 881
Size: 18x9.5
Offset: +35 et
Spacer(s): 5mm all 4 corners
Camber: -2* all 4 corners
Tires: 235/40/18 Continental Extreme Contact DWS
Suspension: ST Coilovers
Spring Rates: Factory ST rates
Ride height: About 24.75" all 4 corners
Fender mods: Top tab off front liners cut out. Fronts getting rolled soon
Rubbing: Rubs liners over big bumps or when I have passengers
Brake Spec: B6S4 brakes front and rear

[ZERO FRAME GRAB]

Brand: Audi A8 factory wheels
Size: 19x9
Offset: Honestly have no clue
Spacers: Nope
Camber: Nope
Tire: Nankang Noble Sport 235/35/19
Suspension: Raceland Coilovers
Spring Rate: No clue
Ride height: Never checked
Fender mods: Nope
Rubbing: The front will bottom out over a speed bump other than that nothing.
Brake specs: Factory

[A4 Quattro]

Figure it's time I update my setups on here.

Brand/Name: VMR 708
Size: 18x8.5
Offset: +35
Spacer(s): no
Camber: We don't talk about those things
Tires: 225/40
Suspension: Airlift Performance
Ride height: Lowwwwww
Fender mods: Paint loss because weight reduction
Rubbing: Only if I drive low asf
Brake Spec: stock

---

Brand/Name: Rotiform BLQ
Size: 18x8.5
Offset: +35/+45
Spacer(s): no
Camber: We don't talk about those things
Tires: 225/40
Suspension: Airlift Performance
Ride height: Lowwwwww
Fender mods: Paint loss because weight reduction
Rubbing: Only if I drive low asf
Brake Spec: stock

---

Brand/Name: Avant Garde M220
Size: 18x9
Offset: +38
Spacer(s): no
Camber: We don't talk about those things
Tires: 225/40
Suspension: Airlift Performance
Ride height: Lowwwwww
Fender mods: Paint loss because weight reduction, removed fender liners
Rubbing: Only if I drive low asf
Brake Spec: stock

[ttvick]

Sorry if this isn't the right thread for this question, but I wasn't sure where else to post it. Has anybody seen photos of '09 A6 Prestige wheels on a B6? I'm looking at a set, but it's hard to imagine it hasn't been done before and it would be great to see a picture of what they would look like.

[jayaye4]

Guys... I'm sorry to noob it out but i have a 03' a4 b6 and the tires i'm running are 235/45/17

the rims i was looking at are 17x7 offset 42.. will they fit?

[Zach.russell.13]

Guys... I'm sorry to noob it out but i have a 03' a4 b6 and the tires i'm running are 235/45/17

the rims i was looking at are 17x7 offset 42.. will they fit?

I'm no wheel guru but I've been reading up on wheels lately & that sounds like it should fit, I'm getting 245/35 on a 18/8.5 wheel

[kristof91]

Brand/Name: OEMS IFG10
Size: 20x10/20x10
Offset: Front 45/ Rear 45
Spacer(s): Front 10
Tires: Haida HD921 225/30R20
Suspension: KW Suspension V2
Fender mods: NO

[Rudy_Rozsnyai]

Format
Brand/Name: Alzor Style 020
Size: 18x10
Offset: +25
Spacer(s): None
Camber: -2 Front -3 Rear
Tires: Federal 595 225/35 R18
Suspension: TA Technic Coilovers
Spring Rates: 6k all around
Ride height: Low? lol I honestly don't know
Fender mods: Rolled in the Front, Nothing in the Rear
Rubbing: None
Brake Spec: Stock A4 Brakes

[IMG]IMG_4468.JPG[/IMG]
[IMG]IMG_4469.JPG[/IMG]
[IMG]IMG_4472.JPG[/IMG]
[IMG]IMG_4512.JPG[/IMG]
[IMG]IMG_4513.JPG[/IMG]
[IMG]IMG_4525.JPG[/IMG]
[IMG]IMG_4528.JPG[/IMG]
[IMG]IMG_4563.JPG[/IMG]

[A4 Quattro]

[IMG]IMG_4468.JPG[/IMG]
[IMG]IMG_4469.JPG[/IMG]
[IMG]IMG_4472.JPG[/IMG]
[IMG]IMG_4512.JPG[/IMG]
[IMG]IMG_4513.JPG[/IMG]
[IMG]IMG_4525.JPG[/IMG]
[IMG]IMG_4528.JPG[/IMG]
[IMG]IMG_4563.JPG[/IMG]

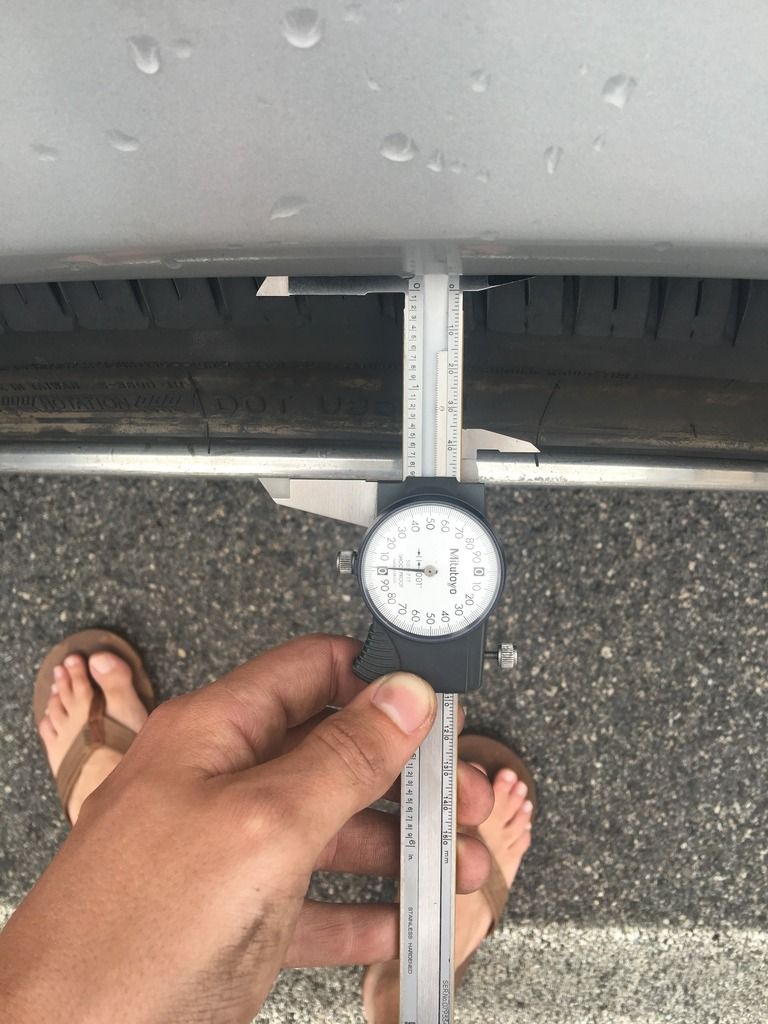

So close...

[Teh]

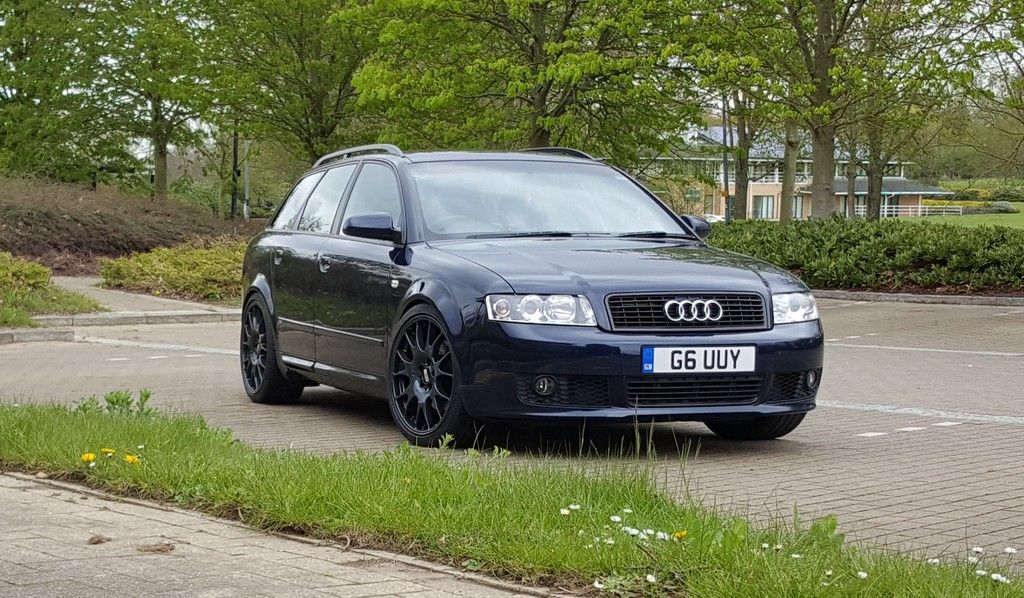

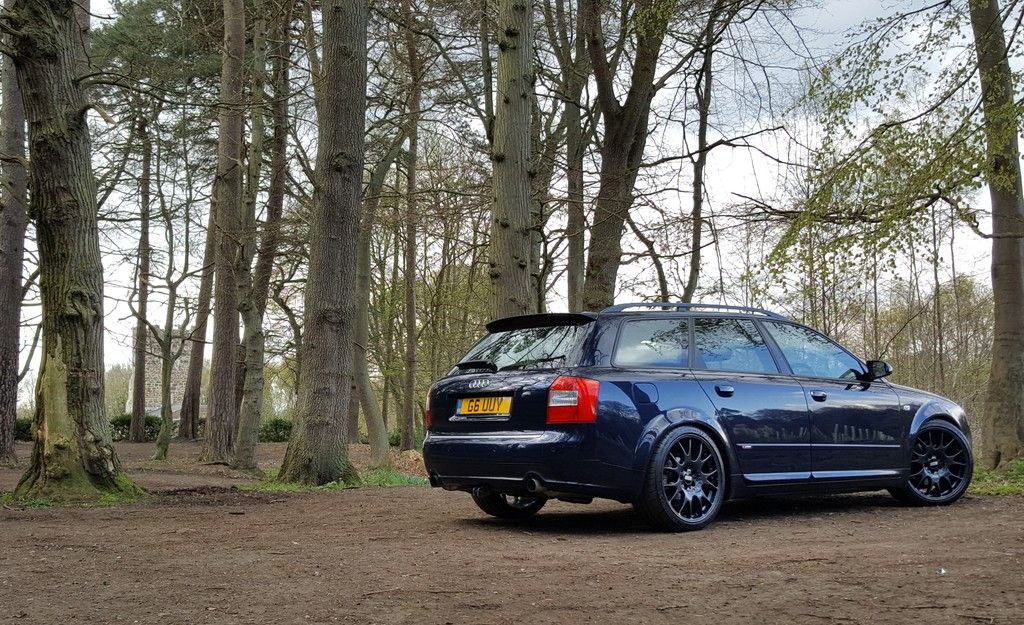

Brand/Name: BBS CH 009 - Powdercoated Blue Pearlescent
Size: 19 x 8.5
Offset: ET35
Spacer(s): N/A
Camber: N/A
Tires: 235 35 19 Michelin Pilot Super Sport
Suspension: Bilstein Eibach B12 Sportline Kit (50/40)
Spring Rates: N/A
Ride height: Settling :P
Fender mods: N/A
Rubbing: N/A
Brake Spec: EBC Grooved & Yellow Stuff Pads

[ZERO FRAME GRAB]

NICCEEEEE!

[AvantNoir]

Brand/Name: BBS CH 009 - Powdercoated Blue Pearlescent
Size: 19 x 8.5
Offset: ET35
Spacer(s): N/A
Camber: N/A
Tires: 235 35 19 Michelin Pilot Super Sport
Suspension: Bilstein Eibach B12 Sportline Kit (50/40)
Spring Rates: N/A
Ride height: Settling :P
Fender mods: N/A
Rubbing: N/A
Brake Spec: EBC Grooved & Yellow Stuff Pads

Man that is a good looking avant!

[vwdann0]

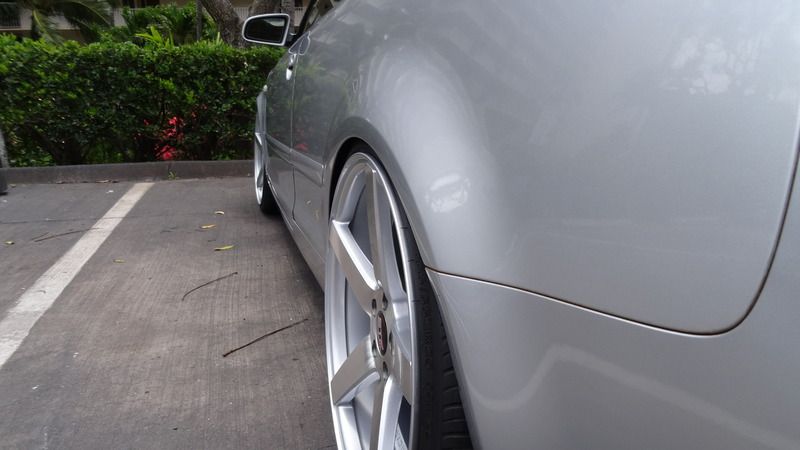

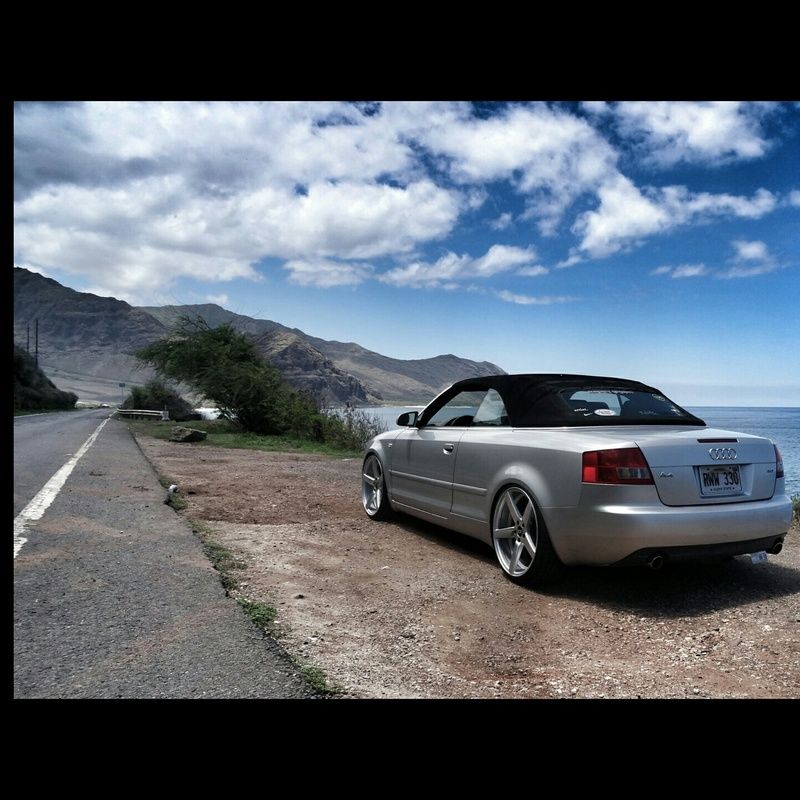

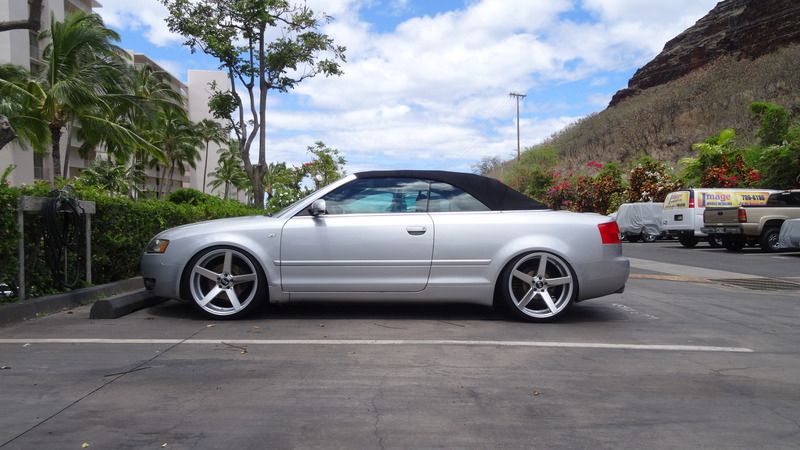

Brand/Name: Avant Garde M580 satin silver
Size: 19"x9.5" Square
Offset: +35
Spacer(s): none (Last pic has 15mm spacers in the rear)
Camber: none
Tires: Nexxan N7000 235/35/19
Suspension: TEIN S.Tech Springs with B5 Front perches
Spring Rates: N/A
Ride height: Not Sure
Fender mods: None
Rubbing: None
Brake Spec: Stock

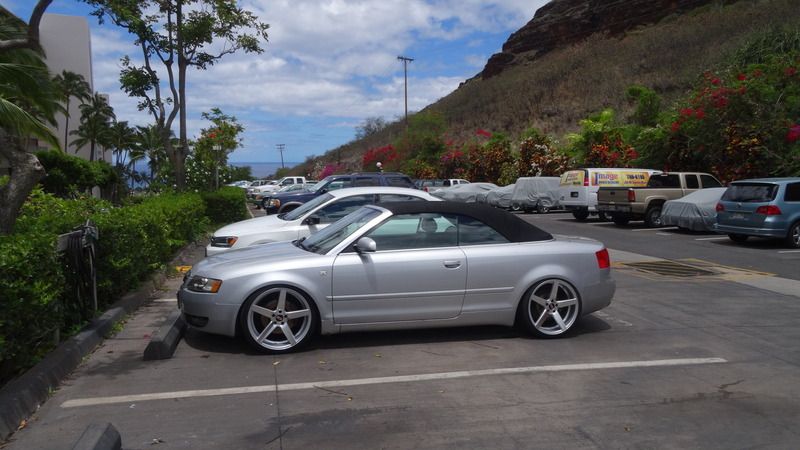

With 15mm spacers in the rear

[storey618]

Brand/Name: elbrus i02
Size: 18x8
Offset: 42
Spacer(s): none
Camber: 2.5* front 1.2* rear
Tires: Dunlop direzza star spec 225 40 18
Suspension: st coilovers in front, neuspeed race springs rear
Spring Rates: ?
Ride height: ?
Fender mods: hand pulled in front
Rubbing: hard turns
Brake Spec: stock brakes

sorry pics are bad, ill update with better ones later

[Wahlstrom]

Brand/Name: BBS RS861 Speedline
Size: 8.5j x 19
Offset: 48
Spacer(s): nope
Camber: oem
Tires: 225/35-19 Nokian zLine
Suspension: Vogtland springs(coilovers soon)
Spring Rates: n/a
Ride height: 40/30ish
Fender mods: none
Rubbing: nope
Brake Spec: retrofitted S4 B6 front/rear

[alx.dub]

Brand/Name: Borbet RST
Size: 8.5 x 18
Offset: 35
Spacer(s): nope
Tires: 235/40/18 Vredestein Ultrac Cento
Suspension: ABT Coilovers
Rubbing: nope

[lucasharrington]

Brand/Name: bbs ck
Size: 18x8
Offset: 45
Spacer(s): 25mm adapter , Final et 20
Camber: stock
Tires: 215/30/18 Nankang ns-20
Suspension: air lift bags
Spring Rates: ?
Ride height: low
Fender mods: none
Rubbing: turning uphill
Brake Spec: stock brakes





Brand/Name: rotiform ind-t
Size: 18x9.5
Offset: 35
Spacer(s): none
Camber: stock
Tires: 225/40/18 Yokohama S.Drive
Suspension: air lift bags
Spring Rates: ?
Ride height: low
Fender mods: occasionally
Rubbing: turning uphill
Brake Spec: stock brakes

[Btns44]

Brand/Name: Rotiform SNA's powdercoated candy copper
Size: 19x10
Offset: 33
Tires: 225/35/19
Suspension: H&R Street Performance Coilovers

[IMG]DSC_0112 by Drew Woodall, on Flickr[/IMG]
[IMG]DSC_0113 by Drew Woodall, on Flickr[/IMG]
[IMG]DSC_0103 by Drew Woodall, on Flickr[/IMG]

[storey618]

Brand/name:alzor 881
Size: 18x9.5 all around
Offset: 40
Spacer(s): 5mm front. Total et35 front et40 rear
Camber: 2.5* front 1.2* rear
Tires: Dunlop direzza 225/40/18
Suspension: st coilovers front, neuspeed race springs rear
Spring rates:?
Ride height:?
Fender mods: hand pulled in front
Rubbing: hard turns
Brake spec: stock a4

[Ephry73]

Brand/Name: Volk Racing TE37
Size: 19x8.5
Offset: ET36
Spacers: 3mm front, 7mm rear.
Final ET: 33 front, 29 rear.
Camber: -1.8 deg. front, -2.0 deg. rear.
Tires: Bridgestone Potenza S-03 Pole Position, 245/35-19 all around. (old)
Tires: Bridgestone Potenza RE050A Pole Position, 245/35-19 all around. (new)
Suspension: STaSIS/OHLINS SL (Signature Line), corner balanced.
Spring Rates: 650f / 1000r
Ride height: 24-3/4" front, 25" rear.
Fender mods: Lining with bolts removed.
Rubbing: None. (Some, with a dead hooker in the trunk)


















Winter wheels: ASA AR2 18x8 (ET28 after spacers) with Bridgestone Blizzak LM-22 215/45-18 winter performance tires:

Love everything about this build

[280zx2by2]

Brand/Name: Work Equip 05
Size: 18x9.5j +30 18x11j +22
Spacer(s): None
Camber: None
Tires: Tiny
Suspension: Megan lowering springs
Fender mods: None
Rubbing: None

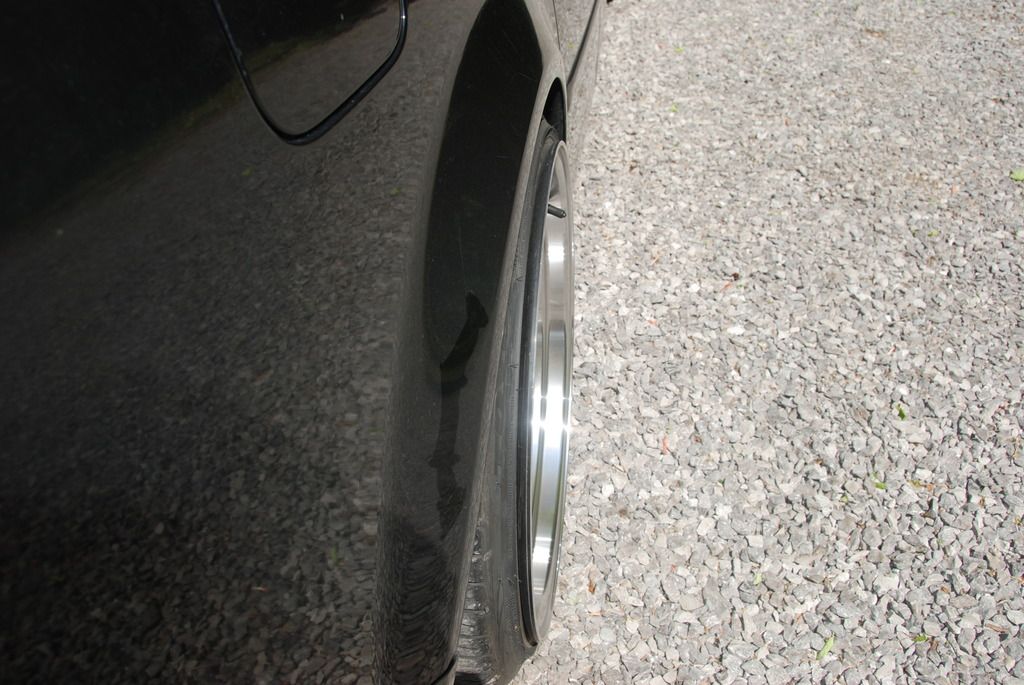

Yeah, rear is going to need some work.
