Part Number Requests

[SoCalS4Avant]

Hey Monkey, hit up the Part request thread up top. You'll get some good returns there. I can merge the threads if you'd like.

[MonkeyBiz]

Hey Monkey, hit up the Part request thread up top. You'll get some good returns there. I can merge the threads if you'd like.

That would be awesome if you could do that for me...thank you.

Would have been genious for me to have done that in the 1st place...LOL

[MonkeyBiz]

That would be awesome if you could do that for me...thank you.

Would have been genious for me to have done that in the 1st place...LOL

Looking for the part # for the climate control unit in a B6 S4 (early 2004 if it matters). Non-Nav, Audi Symphony II, 6MT...

Thanks much!

[MonkeyBiz]

Looking for the part # for the climate control unit in a B6 S4 (early 2004 if it matters). Non-Nav, Audi Symphony II, 6MT...

Thanks much!

Bump...

[ewan]

2007 rs4 LH foglight?

[Veereihen6]

Sorry guys, I was Italy on business for the last week. Let me see what I can do about these part #'s.

[Veereihen6]

2007 rs4 LH foglight?

2007 RS4 LH Fog lamp assembly: 8E0941699B

[Veereihen6]

Looking for the part # for the climate control unit in a B6 S4 (early 2004 if it matters). Non-Nav, Audi Symphony II, 6MT...

Thanks much!

This one I am little hazy about, its one of these 4:

8E0820043AD
8E0820043AH
8E0820043AB
8E0820043AF

Do we have a charcoal canister for filtering the fresh air, or just a dust and pollen filter?

The first 2 say "Double-sized standard (DIN)", the second 2 say "Without double-sized standard (DIN)"

[bigiron]

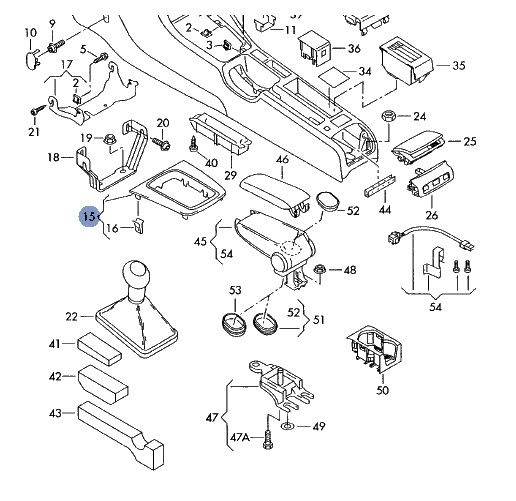

Would like help in getting the part number for the armrest storage lid. Item number 46 on image below. Thanks in advance for the help.

[Veereihen6]

Would like help in getting the part number for the armrest storage lid. Item number 46 on image below. Thanks in advance for the help.

either

8E0864245M 86R

-or-

4B0864245AM 86R

[bigiron]

8E0864245M 86R -or- 4B0864245AM 86R


Which one is for a black interior b7 s4? Thanks much.

[Veereihen6]

8E0864245M 86R -or- 4B0864245AM 86R


Which one is for a black interior b7 s4? Thanks much.

The 86R is the color code for black (Soul), so they both are, but I think the first one is proper number.

[1badg35]

any help with the harness for the stock 2004-2005 navigation unit? not RNS-E, the one that displays between the gauges. TIA

[loucura]

Looking for throttle actuator part # for a B6 S4 6MT.

thanks!!

[Veereihen6]

any help with the harness for the stock 2004-2005 navigation unit? not RNS-E, the one that displays between the gauges. TIA

no idea on this one man....etka won't show a part number for it. That was a fairly obscure nav. You might want to check with the guys over at audiforum.us

[Veereihen6]

Looking for throttle actuator part # for a B6 S4 6MT.

thanks!!

Are you talking about the throttle body itself? i dont know if its pieces are available separately.

[FWP!]

now that I've got a new right front wheel liner, I need the little flap (air diverter???) that mounts to the bottom corner of the bumper, it screws into part of the wheel liner with about 3 screws. I also need those screws or anything else associated with it because it's completely missing.

[FWP!]

btw, found a great parts supplier online. For example, that wheel liner I bought was going to be $65 from my audi dealer, but this place called bernardi auto parts online had it for $37 plus $7 shipping.

When you're running a search for your part number, be sure to ad dash's in the part number like 8E0-821-172-C. https://audi.bernardiparts.com

[Veereihen6]

now that I've got a new right front wheel liner, I need the little flap (air diverter???) that mounts to the bottom corner of the bumper, it screws into part of the wheel liner with about 3 screws. I also need those screws or anything else associated with it because it's completely missing.

Is it on the bottom of the front edge of the wheel liner? If so, its called 'wheel spoiler"

position 18 8E0-853-888-B wheel spoiler right front S4

position 16 4A0-805-121-C grip pin black

position 17 4A0-805-163 clip

[FWP!]

That's exactly it! Thanks for the help!

edit - Actually, can I have the part number for 19 as well?

[trexturk]

anyone know the PN to the plastic cover that is at the top left corner of the engine bay. It covers the air box? I believe they came on the 04 B6 only

[Veereihen6]

anyone know the PN to the plastic cover that is at the top left corner of the engine bay. It covers the air box? I believe they came on the 04 B6 only

Pretty sure this is it: 8E0-103-928-G 01C cover for engine compartment - black

[noznab]

Need the part number for the brake line that runs in the front wheel well and plugs into the the brake pad wear sensor (04 B6 S4). I only need the male plug, but I'm assuming that I'll have to buy the whole wire....Don't ask... long story. lol

[t2540]

Looking for the part number, and the install process for lights under three button clusters over the instrument cluster. (Odometer reset, engine service reset button, etc right side specifically)

[ASpec818]

Does anyone have the part number for the glovebox pins? Those are the two little pins that you need to remove when you fix your hinge. Mine are beatup.

[the700level]

could i get part numbers for:

- the passenger side visor clip
- clip for the center console?

[loucura]

Part number request
2004 B6 S4 6MT

Looks like I have a busted Compressor to condenser Sleeve. Can someone verify that is correct please...I think it's item #9

[Slammed_A4]

hello,

i'm hoping you guys could help me out with this one...

i'm searching for the OEM part number of the ''filler plate'' that is used to cover up the european licenseplate opening on the B6 S4 front bumper...

is there anyone with a b6 s4 that is willing to measure up the height and length of this filler plate?i prefer in Centimeters

thanks in advance!

[loucura]

B6 S4 6MT

Looking for Intake vacuum supply line part number

[noznab]

Can I get the part numbers for all of the rubber grommets in the windshield wiper fluid tank? I'd need to see the full spread on ETKA to make sure they're the right ones.

[Veereihen6]

my work pc sh!t the bed, so I don't have access to any part #s or schematics till I get everything loaded up again....I will do what I can....

[dparm]

Valets broke my damn sunroof knob so I need the part number for that. It's the gray color, not tan. Just need the knob, not the entire overhead assembly.

[s4audi05]

part number for nut / bolt for side of bumper. there are 3 on each side. B6 S4

[SoCalS4Avant]

Looking for the part number for just the OEM lower center grille. ECS has the price listed for $220+ for this piece, and I'm looking to go price fishing.

Any help is appreciated.

[ahhhudi]

Does anyone know what the part number is for the center cap on the standard Avus 18" wheels which are on stock B6 S4s?

[ArthurPE]

2007 RS4
clutch switch
the white one, actuated when the clutch pedal is out...ie, not depressed

thanks

[ArthurPE]

found it...more importantly fixed the issue
symptoms:
1 cruise not working
2 revs would hang or increase when clutch depressed
3 momemtary start function not working (had to hold the key to fire the engine rather than just twist and release)
4 no MIL

[mad70sx]

Can anyone set me up with the part numbers for part #4,"bearing bushing" and #5,"guide pins" . It is for a 2004 S4. Thanks!

[s4audi05]

no worries. the dealer has done the same thing twice, which is why i am now convinced it's a ghost part. lol. ill just have to go test drive another s4 or a4 and return it with one less plastic bolt.

The part # for that piece is 8L0-805-596-A BOLT. EB 022 E02. Went through the same experience as you did going back to the dealer several times, Jack Daniels Audi in NJ was helpful finding this piece. Now, could anyone help me with the left engine cover? Is there bolt or something that suppose to be on the top since there is a hole?

[gear_head81]

If someone could get me the part number from there rear ashtray cover (wood grain) mine is warn off.

thanks
