Part Number Requests

[neverfollow-rs4]

To make it easier for us and to keep the forum cleaner please post all part number requests here. It happened to me several times where people ask for the part numbers and I posted them few times already, yes people can use search button but it will make it easier to look only in one place and spare us tens if not hundreds of threads.

[ALWAYS4UDI]

if anyone has the part number for the plastic ball-mount-screw that goes on the coolant reservoir which holds the drivers side engine cover on, they will be my hero. i believe 04's have it and 05's don't. the parts index at the dealer for this thing is wrong.

[neverfollow-rs4]

if anyone has the part number for the plastic ball-mount-screw that goes on the coolant reservoir which holds the drivers side engine cover on, they will be my hero. i believe 04's have it and 05's don't. the parts index at the dealer for this thing is wrong.

I;ve never seen 4.2 engine but here is the pic that I found, does it hold the piece that goes around the power steering fluid and windshield washer fluid?

[littleredwagen]

I;ve never seen 4.2 engine but here is the pic that I found, does it hold the piece that goes around the power steering fluid and windshield washer fluid?

yes it does

[neverfollow-rs4]

yes it does

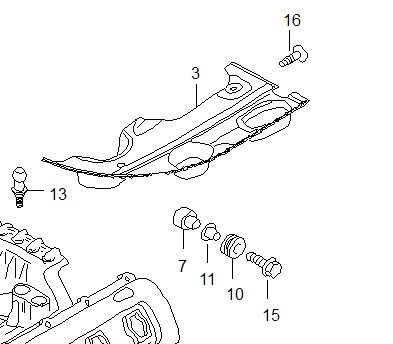

So you need number 16?

[ALWAYS4UDI]

i'm about positive it's number 13. i'm looking for this hooker...

[littleredwagen]

So you need number 16?

i have looked at that same drawing a dozen times, and i am still not sure. I know it is not 13 though, i ordered that one once

[EYE4SPEED]

How about the CF shifter surround for a 6spd B6 S4 Cab?

[neverfollow-rs4]

how about the cf shifter surround for a 6spd b6 s4 cab?

Retaining frame lower part for boot - carbon: 8E0864261AE7V7

[S4pedro]

Retaining frame lower part for boot - carbon: 8E0864261AE7V7

I have mine off now and it says 8H0 864 261 F 747 Ca(??) cant read the last 2 letters.
from my m6 05 cab. Mine had the carbon fiber curling up and delaminating, when I was fussing with it the c/f cracked, so now will be looking for replacement also.

[neverfollow-rs4]

I have mine off now and it says 8H0 864 261 F 747 Ca(??) cant read the last 2 letters.
from my m6 05 cab. Mine had the carbon fiber curling up and delaminating, when I was fussing with it the c/f cracked, so now will be looking for replacement also.

Is this what you are looking for, number 15? If so the only number that I have is the one I gave you, if I take F out of your part number it gives me option 1WV which is nut brown so its not carbon.

[EYE4SPEED]

Is this what you are looking for, number 15? If so the only number that I have is the one I gave you, if I take F out of your part number it gives me option 1WV which is nut brown so its not carbon.

I had a little chip in the CF, so the shop reordered the piece (wrong part number twice already). It is #15, the actual surround piece for 6sp / CF.

[noznab]

Anyone know the part number for the battery cover in the engine bay?

[neverfollow-rs4]

Anyone know the part number for the battery cover in the engine bay?

Battery cover: 8E1819422A01C

[stonedead]

Does anyone know the part # for the driver, side airbag ignitor I'm told the one located in the seat although I can't seem to locate it.

[SoCalS4Avant]

I like this idea - and am going to sticky it up top!

[neverfollow-rs4]

I like this idea - and am going to sticky it up top!

Thanks, I posted same thing in other forums just because different car, models, part numbers etc, people in A6 forums started complaining but its your decision so you guys do what you can. I was thinking of adding B6/B7 S4/RS4 in the title so people from different forums don't post in the wrong forum. Any chance to get others that I posted in other forums to be stickys?

[A4A4A4]

Can anyone confirm whether part number for the black B7 RS4 grille is 8E0853651JVMZ or 8E0853651AFVMZ?

For reference the grille I'm looking for is this one:


TIA

[neverfollow-rs4]

Can anyone confirm whether part number for the black B7 RS4 grille is 8E0853651JVMZ or 8E0853651AFVMZ?

TIA

From what I see in etka 8E0853651AFVMZ (black trim) and 8E0853651AF3FZ (alu trim) are only ones available. 8E0853651J does not have VMZ option which is black so I assume its discontinued and replaced with 8E0853651L. So the one that matches your picture is 8E0853651AFVMZ.

[A4A4A4]

From what I see in etka 8E0853651AFVMZ (black trim) and 8E0853651AF3FZ (alu trim) are only ones available. 8E0853651J does not have VMZ option which is black so I assume its discontinued and replaced with 8E0853651L. So the one that matches your picture is 8E0853651AFVMZ.

Awesome, thanks Miki.

I'd give you some rep for your help but...

You must spread some Reputation around before giving it to neverfollow-rs4 again.

[neverfollow-rs4]

Awesome, thanks Miki.

I'd give you some rep for your help but...

Haha, that's funny , no worries, actually I'm looking for this grill too... lets see what I end up with

[ALWAYS4UDI]

^ok, then that must be what the dealer looks at. i did the same thing. lol

[tylerS]

the t25 bolt holding down the coil pack side of the harness and the t30s holding down the valve covers

thanks

[neverfollow-rs4]

the t25 bolt holding down the coil pack side of the harness and the t30s holding down the valve covers

thanks

Could you take a pic, that would help a lot.

[tylerS]

Could you take a pic, that would help a lot.

stolen for joey's diy...

edit: any change of a part# for the black clip on the coil pack harness?

thanks again

[neverfollow-rs4]

Head gasket screw: 077 103 831 E

The clips that you asked is the whole connector and the part number is 4B0 973 724. I assume you are talking about the one that plugs into the coil pack from the harness. Cant find the other screw, sorry.

[tylerS]

thanks

[Fade2Black]

Does anyone know if can order the metal clips that hold the rear brake pads in place. They usually come with the pads but I didn't change them when I did my pads and now my pads rattle over bumps.

TIA

[MaximusS4]

Anything on the upholstery for the piece that extends from the driver's seat (i.e. the extending knee support)...

--I lent my car to a friend and it turns out he decided to go out clubbing and was smoking and dropped a cigarette and burnt a hole through it. FML. Dealer quoted $800 installed for seat upholstery. That's can't be right for just that piece.

[neverfollow-rs4]

Anything on the upholstery for the piece that extends from the driver's seat (i.e. the extending knee support)...

--I lent my car to a friend and it turns out he decided to go out clubbing and was smoking and dropped a cigarette and burnt a hole through it. FML. Dealer quoted $800 installed for seat upholstery. That's can't be right for just that piece.

What color alcantara?

[Nogaro]

How about the little aluminum button that goes on the e-brake for the B6's? I see that they sell on ebay.de, they're only 5 euros, but they just dont ship to the US .
Thanks in advance!

[neverfollow-rs4]

How about the little aluminum button that goes on the e-brake for the B6's? I see that they sell on ebay.de, they're only 5 euros, but they just dont ship to the US .
Thanks in advance!

If you are reffering to number 14 then it is 8E0 711 333 A 3Q7

Kind of expensive, $22.54 from Audiwholesaleparts.com http://www.audiwholesaleparts.com/pa...&siteid=215295

[Nogaro]

Yep thats it! Thanks Rep'd! Wow yeah thats pretty pricey but I need a new one bad and Im assuming they just pop off and on?

Also, how about the part #'s for the two screws that hold the front part of the air snorkel to the car? (2004 S4)
Thanks again

If you are reffering to number 14 then it is 8E0 711 333 A 3Q7

Kind of expensive, $22.54 from Audiwholesaleparts.com http://www.audiwholesaleparts.com/pa...&siteid=215295

[squidz]

Looking to replace the shifter surround for a titanium s-line w/ tiptronic.

retaining frame - piano black

Can't seem to find this part number listed anywhere. Thanks.

[jessfour]

can someone please provide the part number for the B6/7's Ultrasport/S-line shift knob in perforated leather? I hear it's the same part between the two platforms but I'm not sure. thanks!

[gegegum]

I want to know the part no. of B6 S4 Headlight, thanks!

[neverfollow-rs4]

I want to know the part no. of B6 S4 Headlight, thanks!

Your location assuming what you put in your signature HK, Hong Kong? Is your car right hand side drive?

[Nogaro]

Hmm for some reason there is no site that has the part number for 51, only 53($6). Is that "A" supposed to be in the #? I figure I might as well get the whole assembly.
Thanks

[neverfollow-rs4]

Hmm for some reason there is no site that has the part number for 51, only 53($6). Is that "A" supposed to be in the #? I figure I might as well get the whole assembly.
Thanks

Sorry, I f'ed up, it is 4B0 864 211 A 4PK, I wrote 8E0 instead 4B0. Writing down too many part numbers...

[Nogaro]

Sorry, I f'ed up, it is 4B0 864 211 A 4PK, I wrote 8E0 instead 4B0. Writing down too many part numbers...

Oh not a problem. Thanks for all the help, got all my parts ordered!
And to make things weirder on that part, both 51 and 53 are both $6.58! But 51 includes both 52 + 53....go figure
Thanks again
