    My soft spot for dimple dies is becoming.... not so soft.

    Great work!

  2. #42
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    Final Assembly pics now since paint is dry.







  3. #43
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

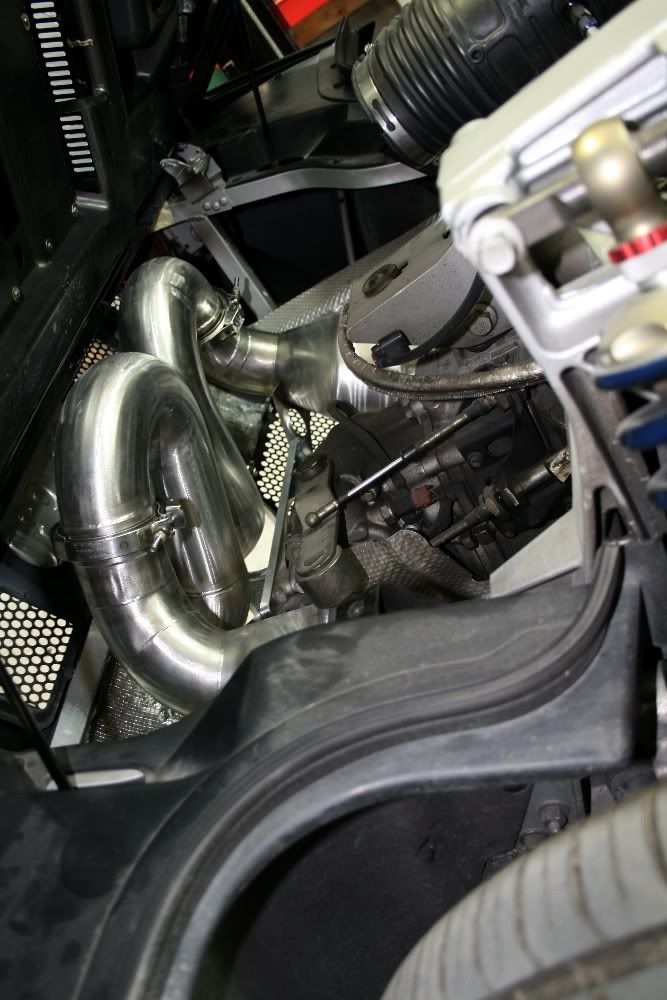

    GT500 over-axle piece...


  4. #44
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    Rolling along with GT500 stainless welding...




  5. #45
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    Almost got this thing beat!!!
    Headers from Kooks, in, but no fun.
    Modded the goofy flange to v-band


    Got one out of focus, but funny enough it revealed alot!!!

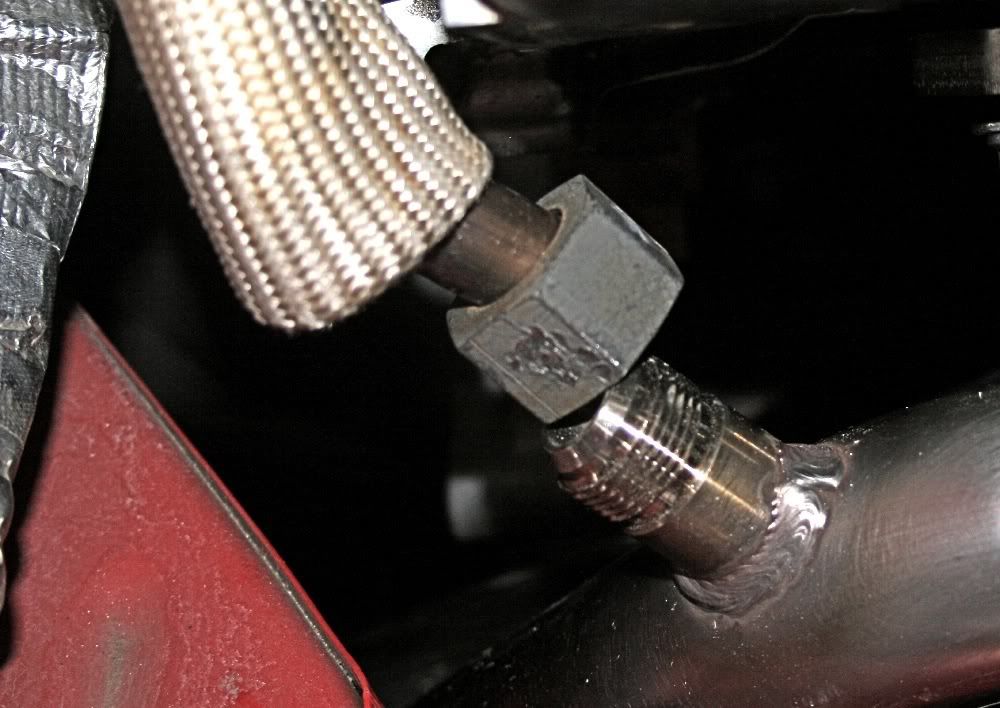

    Heat tube attachment was close...

    Removed tube, zipped a cut 1/2 way around, welded it up, and it fit.
    Onto the welds up front near the collectors

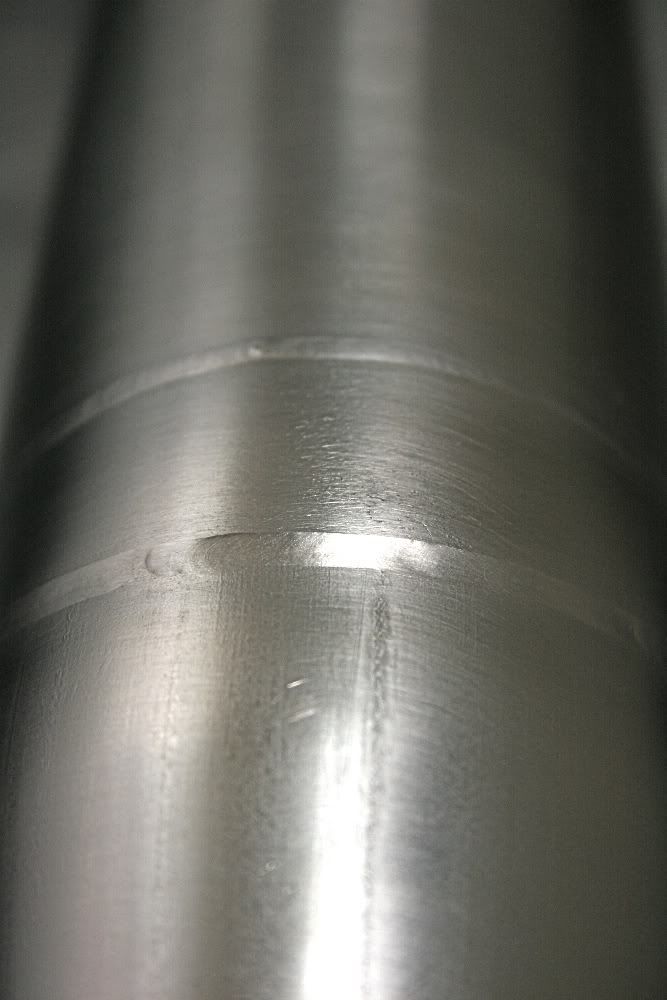

    Aluminum hanger welded to muffler OD. Dimple die touch.


    Muffler hanging, tip not welded in yet..'

    Snug fit holds it in place while I wait to hear back if this is the final placement.

  6. #46
    Veteran Member Four Rings Mantis's Avatar
    Join Date
    Aug 04 2007
    AZ Member #
    20072
    Location
    Canada

    Wow, I need a tip like that on my project
    I don't think I care anymore

  7. #47
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB














  8. #48
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    A few quick jobs.
    Stage 1 of a re-do on a local record-holding 2 wheel deal. Welding the 4130 rectabgular tubing. Ended up exactly square with my clamping and bouncing around. I was quite happy with that.



    Now onto a 1971 Covette Stingray LS5 454
    Stainless works headers that were not even close to fitting, and magnaflow exhaust, that fit with a bunch of fiddling around and some gentle persuasion.
    As it came, rattling everywhere, and 3.5" collectors into 2.25" exhaust...




    Header pics as they came...


    Some gentle massaging of the runner to clear the upper. 1" dented, good thing they are too-big 2.125" primaries.

    Passenger side after making fit and extending collector/3"

    Welds...



    Major issues around the starter, just fit after bashing the collector on 2 sides. Of course, the welds all broke as they were autogenous fillets.

    Repaired the collector fillets as they were autogenous too. Ended up fixing 4 welds on one side, 2 on the ohter.

    All in and reduced to 2.5" to mate up with Magnaflow system.


    Beautiful car


  9. #49
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    First of a few Audi's on deck....
    Sorry the foreground is so out of focus. In progress...

  10. #50
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB




  11. #51
    Senior Member Two Rings Cobra Commander's Avatar
    Join Date
    Nov 17 2010
    AZ Member #
    67140
    My Garage
    D3 S8- Daytona Gray
    Location
    Philadelphia

    You do beautiful work!!!
    2001.5 B5 S4-Silver |Vogtlands|PODI|Dice|
    2007 D3 S8- Daytona Gray

  12. #52
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    Quote Originally Posted by Cobra Commander View Post
    You do beautiful work!!!
    Thanks very much. Most days it doesn't seem like work at all.

  13. #53
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    Audi is moving along. Got the custom resonators done, and one side welded to the mufflers that came on the car.




  14. #54
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    All done. Not much time for pics. Magnaflow muffler tips really suit the car.



  15. #55
    Active Member Two Rings BomarFab's Avatar
    Join Date
    Apr 10 2011
    AZ Member #
    73735
    My Garage
    01 S4, 80 Toyota bagged
    Location
    Windsor, CA

    Damn Unobtainium, super clean work. I am almost embarrassed to post my own work now, but I think I will anyway. Lol. Do you make those aluminum mufflers to sell? I kind of like that idea, I may want to try something like that on a future project of my own.

    I'm just going to post a bunch of random cell phone shots from facebook. If anyone is interested in seeing more I will post other projects I have done.






    I'm a horror movie nerd, so I made my own costume.






















  16. #56
    Active Member Two Rings BomarFab's Avatar
    Join Date
    Apr 10 2011
    AZ Member #
    73735
    My Garage
    01 S4, 80 Toyota bagged
    Location
    Windsor, CA

    This is my own project. I bought it as an unfinished basket case, with no wheels, and the usual "it ran really good before..." story.
    Brought my own wheels to pick it up, brought it back to assess what needed to be done. My initial thought was put it together cheap.
    Then I got under it and realized basically all the work was....not great. So out the door went my quick and cheap idea. Still trying to keep it cheap.
    But not worrying about it too much anymore.

    The day I got it.


    Front suspension was too much work to fix, so...


    I clipped it, with a slightly newer suspension with better design. I narrowed it at the same time.



    Now some rear suspension and stuff. At some point I decided I wanted it to handle more like a car than a truck, since its going to be slow.
    So the back got my stock S4 sway bar, and the front is getting a modified one from a BMW 5 series. And Bilstein shocks, control arms, Satchell link...














    Some front suspension.





    I'm also a sucker for old school audio.


    And a shot of it outside, how it looks right now.


    I haven't touched it in about a month, but everything I have done to it so far was done in about 3 weeks, mostly after hours.

  17. #57
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    Nothing to be embarassed about. Your work looks excellent. Well thought out and great execution. 2 big thumbs up!!!
    Well, really winding up for spring here....
    Aluminum blocks welded under the base for future threading. Saves room I guess. Ford guy gives me lots of misc. work, just never post it up.

    2 Brothers are tinkering with terminators, and needed the bypass blocked. Maybe not the prettiest or smallest welds I've done, but pretty tiny.



    Big thanks to Adam Fortier and the boys at Columbia River Mandrel Bending for hooking me up with some collectors for this bada$$ camaro job coming up.
    I took the collectors they sent, and added some tube, and a thin 321 flange as the 1st half of the exhaust is going to be 4"x .035" 321, then aluminum.






    Inside penetration ended up pretty nice...



    These are to go on these headers after fixing and matching to new collectors. Car is 555 cubes plus a snoot full of nitrous.

  18. #58
    Active Member Two Rings BomarFab's Avatar
    Join Date
    Apr 10 2011
    AZ Member #
    73735
    My Garage
    01 S4, 80 Toyota bagged
    Location
    Windsor, CA

    Looks like you get to work on some really cool stuff. I use Columbia River a lot, as well as Cone Engineering. Your welds are impressive though.


    This is one of my favorite projects. And its coming back this month some time to get closer to driving.

    Putting 944 IRS in a 67 VW Double-Cab.





    The interesting part of this project, is that the owner designed a lot of it, and actually did a good job. So I did it in various stages
    as he had funds available. I didn't really know what this was when I made it.




    He is running a 911 motor and 944 transaxle/torque tube. So I had to adapt the two. The overhang served later as a mount for the engine.




    This piece started making more sense when I built motor mounts.







    I modified a fuel cell for him. Would have been easier to just build it to the right shape and size.



    He wanted a roll cage built to stiffen the chassis, since I was about to cut a huge hole in the floor.
    We disagreed on design a bit, the cage is not "proper" or up to any regulated standards, but its what he wanted.
    The top bar in this first picture looks crooked (it is in comparison to the rail below it, depends on what's important)
    but the B pillar hoop is 3/4" taller than the C pillar because the roof is higher in the center. And that bar intersects
    with the welded joint to add some support to it. Also the crown gussets will be behind the seat, where no one can
    hurt themselves on them.



    I'm proud of this though..






    The cage hits the floor right above the inner rocker support. Kinda strong...

  19. #59
    Active Member Two Rings BomarFab's Avatar
    Join Date
    Apr 10 2011
    AZ Member #
    73735
    My Garage
    01 S4, 80 Toyota bagged
    Location
    Windsor, CA

    The engine..







    Hanging the transaxle.



    Did some bell cranks for the rear coil overs. Strong but not too heavy.














    I had to machine all of my own spacers and hardware for the coilover, since they are from Germany.
    They had an odd bearing size I couldnt find anything to fit.




    This is the bus (its going lower, this was adjusted all the way up to get on trailer).


  20. #60
    Active Member Two Rings BomarFab's Avatar
    Join Date
    Apr 10 2011
    AZ Member #
    73735
    My Garage
    01 S4, 80 Toyota bagged
    Location
    Windsor, CA

    Okay here is some more fun, put a 302 and a T5 in a 73 Mercedes for LeMons.

    Built a carb hat from scratch, since buying one is a no-no, and hood space was tight.








    The motor/trans was far from fitting.



    Mounted seat sliders, since the team has drivers ranging about a foot in height.




    Per request, I made the gas pedal and linkage. It worked pretty well and was comfortable, but looking back I would
    make it lighter if I did it again. Had to run an extra return spring. Also ran Wilwood pedal/master setup.








    He decided he wanted to just build new front suspension, but use all the stock arms. This proved to be difficult.
    Ended up having to make some very budget minded and unfancy upper arms, and widen the track width a few inches.











  21. #61
    Active Member Two Rings BomarFab's Avatar
    Join Date
    Apr 10 2011
    AZ Member #
    73735
    My Garage
    01 S4, 80 Toyota bagged
    Location
    Windsor, CA




    Did seat mounts and column at some point.






    Built a semi cold air box... Can't seal it off completely because the fender is part of the core support.



    Owner was against flaring the fenders, he wanted some type of wide body. Showed me a bunch of pictures of how he wanted it,
    and this was my take. I later did the rear fenders my way, and he liked them better....







    The initial plan for this car was to build headers that fit. At some point he decided against this, and wanted to run stock manifolds.
    Well they did not fit, so I assumed he would change his mind back to headers. Instead he said turn them around backwards and make it work.
    So I did. The funky side looks like that because I tried to keep equal length, that side is 3" shorter, so I got close. This was probably the most disappointing
    part of building this car, not doing headers. But the judges liked all the crazy tubes, and everyone thinks its for a turbo.





    Built an anti-rock link for the motor.



    How I did the rear widening.






    S4s in the background.




    It got painted at some point, but I did not take pics.

    Oh the fuel filter did get properly mounted.
    Last edited by BomarFab; 04-12-2011 at 11:24 AM.

  22. #62
    Active Member Two Rings BomarFab's Avatar
    Join Date
    Apr 10 2011
    AZ Member #
    73735
    My Garage
    01 S4, 80 Toyota bagged
    Location
    Windsor, CA

    Oh here is one. It had already seen some track contact in this picture.

  23. #63
    Active Member Two Rings BomarFab's Avatar
    Join Date
    Apr 10 2011
    AZ Member #
    73735
    My Garage
    01 S4, 80 Toyota bagged
    Location
    Windsor, CA

    Here is some cool ones I like. Sorry so many posts/pics.




  24. #64
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    2010 Camaro SS/RS Long-tube equal length stainless stepped headers.





    Mustang 25.3 cage kit by wolfe, installing with modifications to fit car and rules.


  25. #65
    Registered Member Four Rings A4ringedONE8T's Avatar
    Join Date
    Feb 17 2005
    AZ Member #
    5337
    Location
    Sarasota, FL

    Some pretty stuff in here, here's some pictures of mine

    95' M3, SC61, 430whp @ 14psi











    Another 95' M3, GT35R, 517whp @ 16psi









    2.5l 5cyl (from MK5 Rabbit) swapped into a Mk1 (04') Audi TT, Precision 5857 Billet













    B6 A4 2.0T Precision 6262 Billet, DBB











    1.8T 225TT GT3076R







    My turbo M-Roadster, Precision PT74, 564whp @ 17psi








  26. #66
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    This car sounds amazing!!!!
    No drone, seems to pull pretty hard now.


    Collector welds


    Head flange weld before clean-up


  27. #67
    Active Member Two Rings BomarFab's Avatar
    Join Date
    Apr 10 2011
    AZ Member #
    73735
    My Garage
    01 S4, 80 Toyota bagged
    Location
    Windsor, CA

    Amazing work guys.

  28. #68
    Established Member Two Rings ApeX-CrZn's Avatar
    Join Date
    Oct 14 2009
    AZ Member #
    49199
    My Garage
    84 Chevy S10
    Location
    San Luis Obispo, CA

    9Bells!!! lol i've been following your work for awhile!! post up the video of the rs4 exhaust you did!

  29. #69
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    The videos are a few pages back I think.
    Very busy last few weeks....

    2010 Camaro made 450whp with my headers, exhaust, and GT11 cam. Big bump from stock, which is about 350-360 on the same dyno!! He's pretty happy.

    Sponsored a local group of guys for their Chump Car effort. DOM cage welded with MIG.





    Onto a very nice '69 Camaro. 555 ci with 2 stages on top for fun. Same one I fixed and modded the headers a while back.
    4" .035" 321 until the diff then aluminum after for cost and weight. Will get a big and bad set of my mufflers as he is sick of it being "race car" loud.
    Here is the 321 raw. Cut it for the x-pipe, then finished it in a satin look.

    Section ready for welding in the am.

    Car....


    321 ss thin wall welds with 347 filler





    The headers and collectors I modded are on the car and all powder-coated up pretty...


    Here she is all done!!









  30. #70

  31. #71
    Veteran Member Four Rings Elliott's Avatar
    Join Date
    Oct 28 2007
    AZ Member #
    22163
    Location
    RVA

    Unobtanium, what bender are you using? Also what notcher? Your work looks flawless.

  32. #72
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    The notcher I don't recall, just a hole-saw based deal with a drill. The bender is a JMR electric/hydraulic deal.

  33. #73
    Senior Member Three Rings Urtorsen's Avatar
    Join Date
    Feb 09 2009
    AZ Member #
    38475
    Location
    chicago

    Unobtanium...gobsmackingly tidy,you are like a surgeon with it (as is bomarfab)...never seen anything like it...are you a half robot or something??? srsly though besides perfect practice,what steps would you advise to take to welding including all thin wall stuff and backpurging, is there any good literature or ways to become knowledgeable with all the different metals and grades to use/not to use, i intend to school myself as much as possible. welding 2 different grades always goes wrong

  34. #74
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    Quote Originally Posted by Urtorsen View Post
    Unobtanium...gobsmackingly tidy,you are like a surgeon with it (as is bomarfab)...never seen anything like it...are you a half robot or something??? srsly though besides perfect practice,what steps would you advise to take to welding including all thin wall stuff and backpurging, is there any good literature or ways to become knowledgeable with all the different metals and grades to use/not to use, i intend to school myself as much as possible. welding 2 different grades always goes wrong
    There are no shortcuts really. Attend a tech college, read Metals and How to Weld them. I try to attend a new training course every year on exotic or rare metals. I don't weld everyday, so I don't get as much practice as I'd like, but I keep up on the theory end.
    There are lots of good books on Amazon about stainless steels, titanium, zirconium, stainless alloys, and high strength alloys.(4130,4340,8620,etc)

  35. #75
    Active Member Two Rings BomarFab's Avatar
    Join Date
    Apr 10 2011
    AZ Member #
    73735
    My Garage
    01 S4, 80 Toyota bagged
    Location
    Windsor, CA

    Unobtainium your work looks flawless.

    Here is a stainless exhaust system I just finished on a customers mid engine Double Cab VW.





  36. #76
    Senior Member Three Rings A42007's Avatar
    Join Date
    Jan 12 2011
    AZ Member #
    69400
    My Garage
    07 A4, 1989 Jeep Cherokee
    Location
    Phoenix, AZ

    Wow you guys have some skills for sure... After seeing all that, mine is by far not special. But it is a work in progress and I love my Jeep for sure..





    My cousins CJ, has a LS1 in it and on 38"..


    My Build Thread - http://www.audizine.com/forum/showth...di-07-A4-Build.

    2007 B7 A4 - APR Stage II / Magna Flow Cat Back / 2.5" TP / ST Coilovers / 19x8.5 ET 32 RS6 Reps / Aftermarket Navigation / 235/35 Hankook Ventus V12 Evo's.

  37. #77
    Registered Member One Ring
    Join Date
    Feb 08 2012
    AZ Member #
    87898
    Location
    California

    Hmm thanks for sharing this wonderful post, I really like to your thread.It is quite helpful discussion according to me, thank you so much for the impressive post......

  38. #78
    Active Member One Ring
    Join Date
    Nov 28 2011
    AZ Member #
    84494
    Location
    calefornia USA

    Quote Originally Posted by haree View Post
    Hmm thanks for sharing this wonderful post, I really like to your thread.It is quite helpful discussion according to me, thank you so much for the impressive post......
    original koozies

  39. #79
    Established Member Two Rings
    Join Date
    May 26 2010
    AZ Member #
    59530
    Location
    Langdon, AB

    Well, It's been a while!!!!!
    Time to fire this thread back up. Hopefully the others will post some of their recent work also.

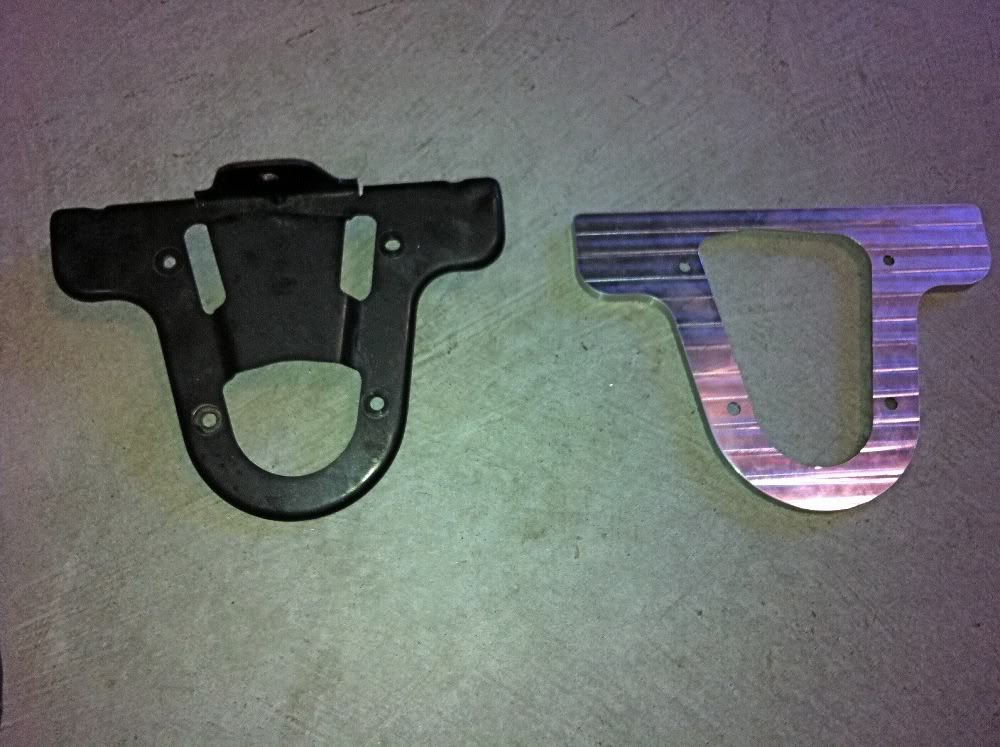

    New all aluminum splitter to replace destroyed Stillen/factory set-up that came apart at 195mph!!

    Anodized

    Much beefire new supports, as those broke too.

    New exhaust in 3.5" 321


    New billet parts to replace heavy factory stuff

    Or plastic ones that melted..

    Billet, anodized, center caps


  40. #80
    Veteran Member Four Rings Operator's Avatar
    Join Date
    Feb 06 2009
    AZ Member #
    38393
    My Garage
    Audi A4, Mit. Montero
    Location
    Goldsboro, NC

    Soooo much awesome work in this thread. You guy's talent and skills for fabrication and modding is impressive!!!
    EFR 6758 by UM
    Info:
    Build
    Pics
    Feat'd AZ'er

Page 2 of 3 FirstFirst 123 LastLast


Bookmarks

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •


    © 2001-2014 Audizine, Audizine.com, and Driverzines.com
    Audizine is an independently owned and operated automotive enthusiast community and news website.
    Audi and the Audi logo(s) are copyright/trademark Audi AG. Audizine is not endorsed by or affiliated with Audi AG.
