[Project] 2.1L A4 Avant & V-Band GT3076R

[iloveturbo]

Hi all,
I been browsing the Audizine forum for some time now. Many of the projects I read here are quite amazing and inspirational. Anyway, I figure it's only fair that I pay my share by documenting my own project. Please do keep in mind that this is a project that would take a long time and I am in no rush of things. This is my weekend car and I want to do it right.

Project car: 2005 Audi A4 Avant (B6)


Current Mod list:
Oettinger front, side skirt
S4 rear bumper
Sportec cat-back exhaust
KW V3 coilover
Porsche Cayenne six pot calipers with floating type 355mm cross-drilled rotors
320mm rear rotors with upgraded pads
19x8.5 ET35 3pc forged wheel with step lips / 225-35-19 all around (soon to be replaced with Rays Progressiv ME 19x8.5 ET31 front 19x9.5 ET37 rims. I had them sitting in my basement for few months now)

Phase 1 - Custom Audi A4 Tubular Manifold

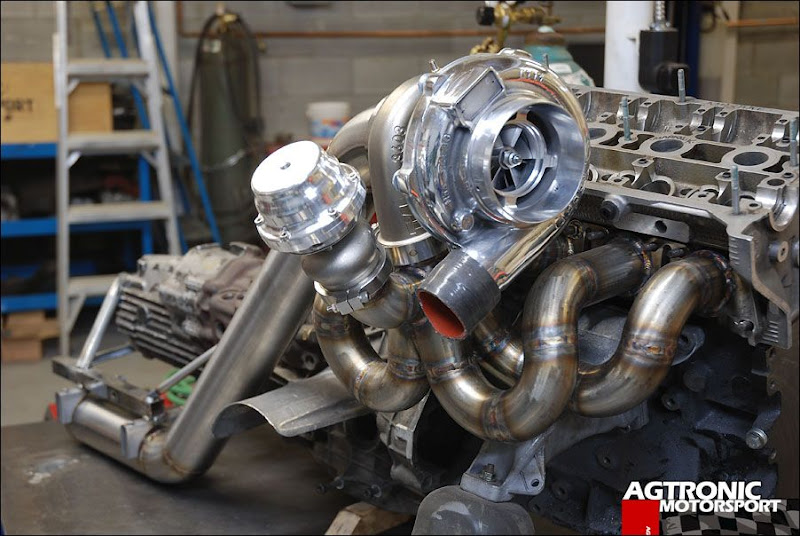

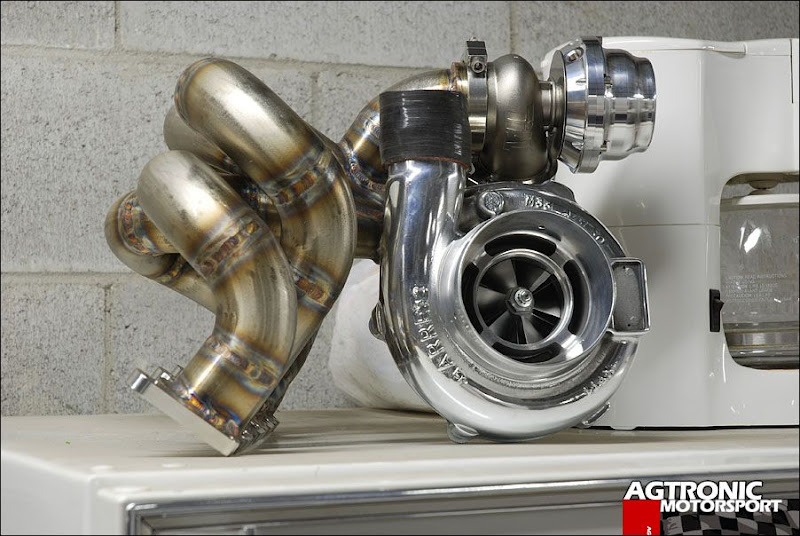

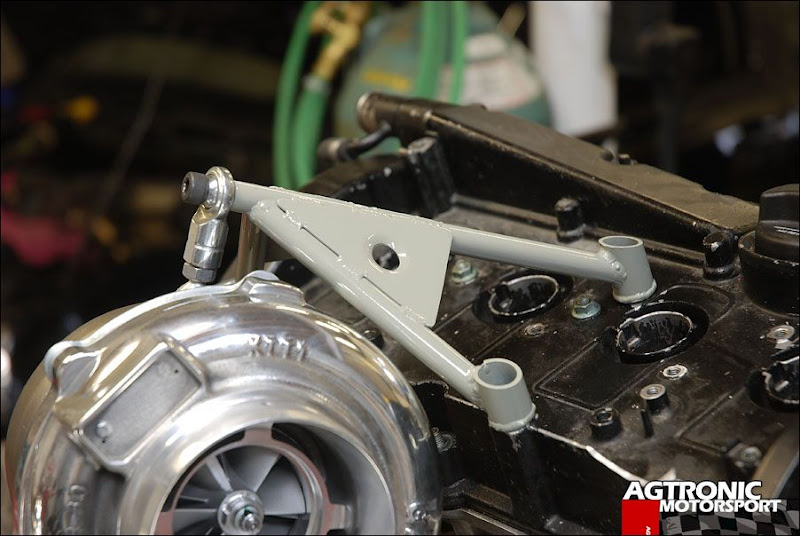

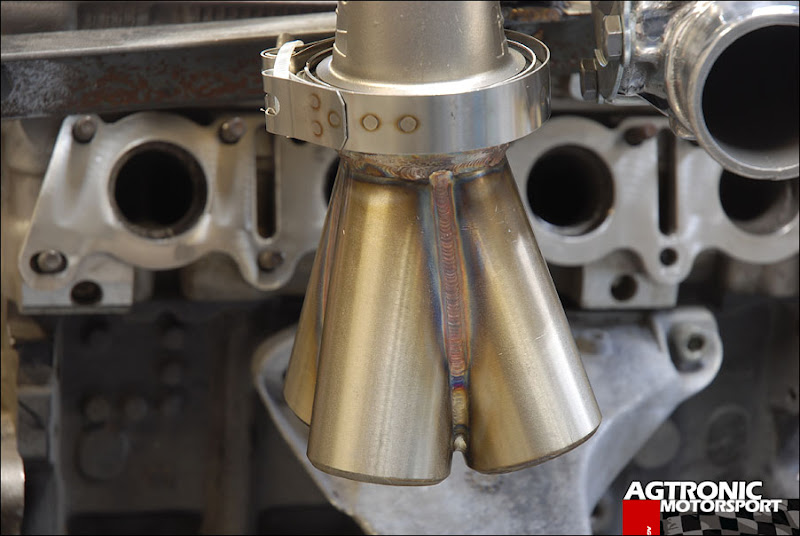

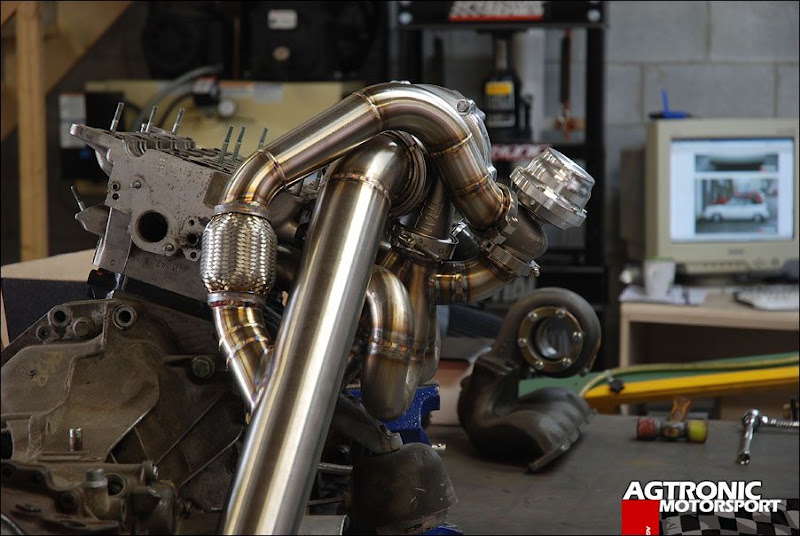

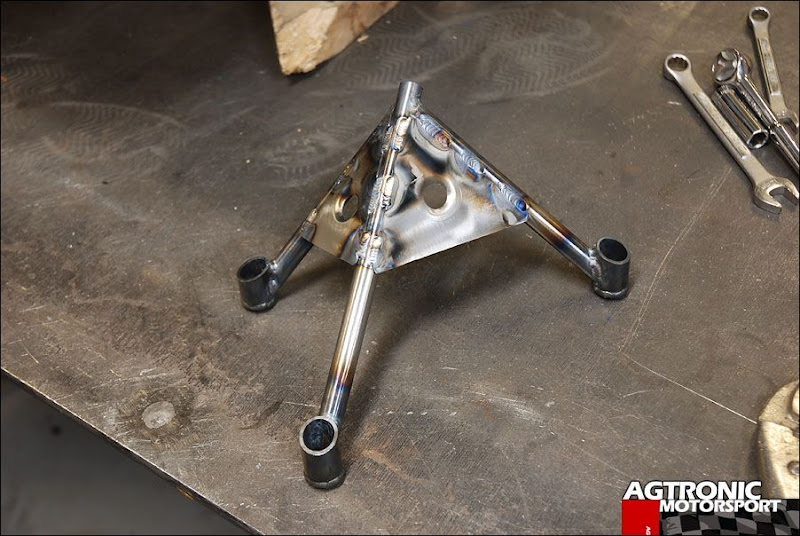

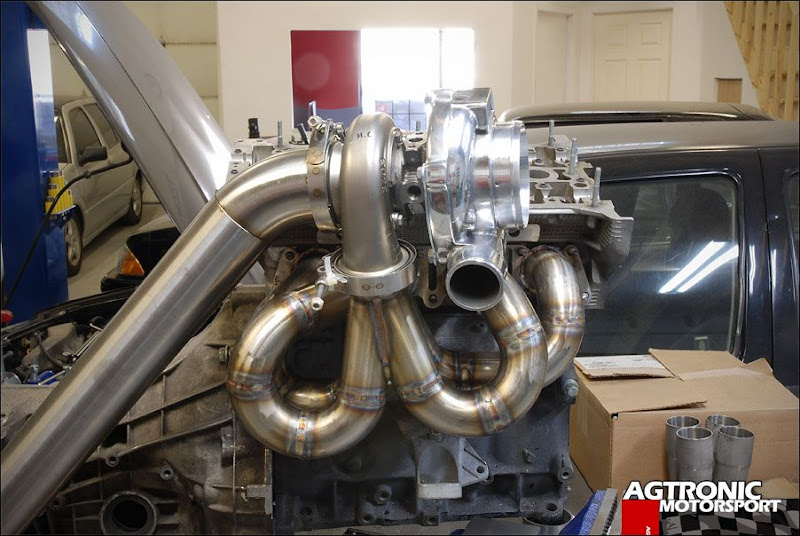

Markku custom built me a manifold, downpipe, wastegate reroute and a support brace. They are amazing quality but don’t take my word for it. Let the pictures speak for themselves.

























Phase 2 - Engine
Issam of INA is commissioned to build up a 2.1L longblock consist of following,

CP bore: 83mm stroke: 95.5mm Compression ratio: 9.0:1 (coated)
Brute Rods with EDM
MK4 TDi Crankshaft
Supertech inconel exhaust valves (+1mm)
Supertech valve springs and retainers
main bearings (OEM)
Rod bearing (Calico + 0.000in)
SEM intake manifold (large port)
RS4 type 70mm throttle body + Adapter harness
phenolic spacer
ARP main studs
ARP head bolts
big bore gasket
CAT CAMS 3658
Brand new Block
Brand new AEB Cylinder head
OEM Timing belt & water pump

I have asked Issam to start a separate complete write-up of the installation process so others may benefit from it. Once again, prop to him for everything.

Phase 3 - Fueling and tuning
Undetermined yet.

That's all for now. I am sure there are plenty of other things I must have missed. Feel free to correct me if i made a mistake somewhere.
