B6 A4 Wheel Thread

[docurley]

I have been hunting for a wheel thread that shows wheels on the car with spec and tyre size oh and if you run spacers to see what looks good and will fit and found very little so I thought why not have a sticky for the FAQ section.

Note I will delete all the chit chat as the thread progresses but not straight away.

If you think this is a crap idea I will delete the thread but I think it will be useful for all, oh and the wheels need to be on the car.

Format
Brand/Name:
Size:
Offset:
Spacer(s):
Camber:
Tires:
Suspension:
Spring Rates:
Ride height:
Fender mods:
Rubbing:
Brake Spec:

Nice add MXRZ I will use your template

Avantéix: Split "Wheels" into "Brand/Name" and "Size" and "Final ET" to "Offset" and "Spacers" so that people can know the exact specs of a wheel if they want to buy them.

[O2VW1.8T]

Brand/Name: OZ Ultraleggera
Size: 17x??
Offset: 35
Camber:
Tires: bridgestone re01r 235/45/17
Suspension: stock sport
Spring Rates:
Ride height:
Fender mods: none
Rubbing: none

[doublezero30]

Brand/Name: VMR V710 matte black (silver time attack stripe is photoshopped on)
Size: 18X8.5
Offset: ET35
Tire: 225/40/18
Suspension: neuspeed race springs and bilstien sport shocks

[mxrz]

Brand/Name: Volk Racing TE37
Size: 19x8.5
Offset: ET36
Spacers: 3mm front, 7mm rear.
Final ET: 33 front, 29 rear.
Camber: -1.8 deg. front, -2.0 deg. rear.
Tires: Bridgestone Potenza S-03 Pole Position, 245/35-19 all around. (old)
Tires: Bridgestone Potenza RE050A Pole Position, 245/35-19 all around. (new)
Suspension: STaSIS/OHLINS SL (Signature Line), corner balanced.
Spring Rates: 650f / 1000r
Ride height: 24-3/4" front, 25" rear.
Fender mods: Lining with bolts removed.
Rubbing: None. (Some, with a dead hooker in the trunk)


















Winter wheels: ASA AR2 18x8 (ET28 after spacers) with Bridgestone Blizzak LM-22 215/45-18 winter performance tires:

[Exanimas]

Brand/Name: iForged Neo 3-piece
Size: 19x9 front, 19x10 rear
Offset: ET35 all around
Tires: Falken FK452s, 225/35 front, 235/35 rear
Suspension: STaSIS Streetsport Coilovers

[dougyfresh]

Brand/Name: BBS RGR
Size: 19x8.5
Offset: 32mm
Camber: -1.3deg all the way around
Tires: Toyo Proxies 4 235/35R19
Suspension: STāSIS StreetSport
Spring Rates: whatever comes with the SS coil-overs
Ride height: 24 13/16" all the way around
Fender mods: none to date
Rubbing: nope
Brakes: B6 S4 front and rear

[italian a4 1032]

Brand/Name: DPE s-20's
Size: 19x8.5
Offset: ET35
Tires: falken 452 235/35/19
Suspension:stock lol

[Maverick]

Brand/Name: Oettinger RE with polished lips 26lbs each
Size: 19x8.5
Front Camber: none
Rear Camber: -2 deg
Tires: 235/35/19 BFgoodrich fronts 245/35/19 Bridgestone Pole Position
Suspension: Bilstein PSS9
Spring Rates: whatever comes with the SS coil-overs
Rubbing: Minimum

[b6onboost]

Brand/Name: iForged Essens. Nickel Silver Centers w/ Polished Aluminum Lips.
Size: 19x8
Offset: et35
Tires: 235/35/19 Vredestein Ultrac Sessanta
Suspension: STāSIS StreetSport
Rubbing: Zero (Fender to ground approx. 25in)

[koolade9]

Brand/Name: Sportec Mono10
Size: 19x8.5
Offset: ET35
Camber: -1 all around
Tires: 245/35/19 Nitto Invo
Suspension: Stasis MS
Spring Rates: 700/1100
Ride height: 24 7/8" all around
Fender mods: rolled fronts, pulled rears
Brakes: STaSIS 355mm Mono4 & 305mm Rears
Rubbing: like a megan fox dry-hump

[nikkobdenis]

Brand/Name: TSW Hoslten
Size: 19x8
Offset: ET35
Camber: Need an alignment
Tires: 235/35/19 General Exclaim UHP
Suspension: Tein S-tech/sport shocks
Spring Rates: ?
Ride height: 24.5 rear 25 front
Fender mods: None
Rubbing: None

Love em or hate em....

[boy412]

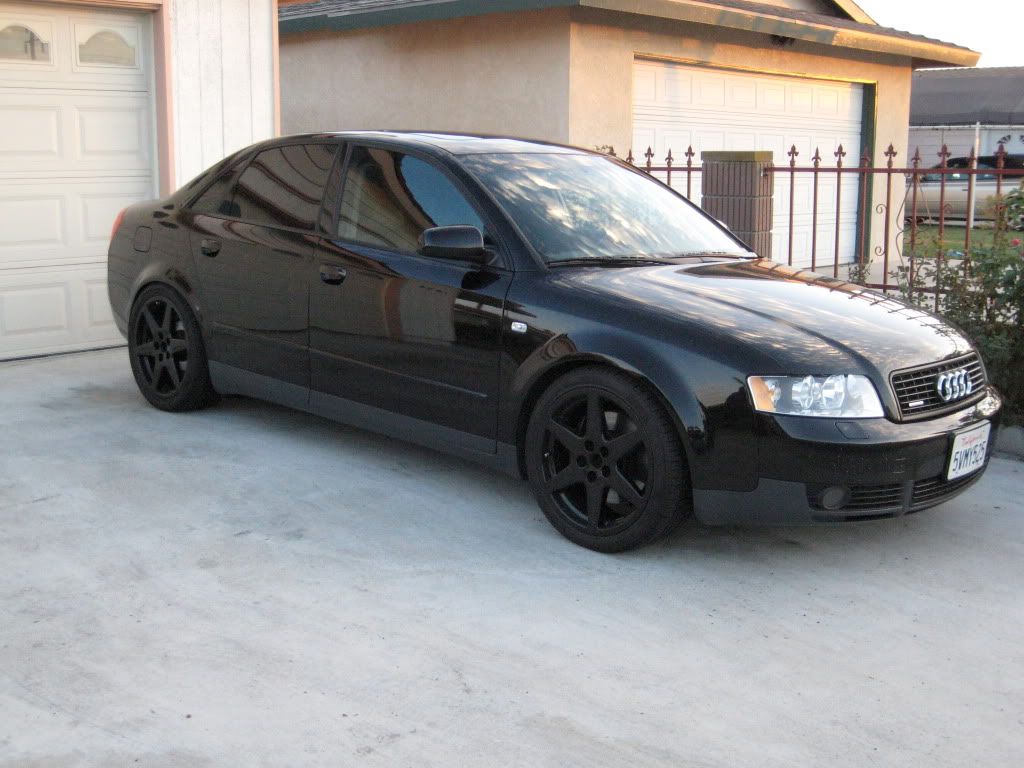

Brand/Name: MTM Bimoto, painted flat black
Size:19x8.5
Offset: ET35
Spacers: N/A
Tyre Size: 235/35/19 Kumho Ecsta SPT
Suspension: stock sport suspension

Here's a brand new MTM Bimoto, right before I did unspeakable things to it:



Here they are on the car (I've since had the lowers painted and added a full USP front):



And here's a shot showing how lovely the ET35 offset is on the B6!

[Dolphin18T]

Brand/Name: VMR v710 - Hyper Silver
Offset: 19x8
Offset: ET35
Camber: Practically 0
Tires: 245/35R19 Bridgestone RE01R
Suspension: Vogtland C/O
Spring Rates:
Ride height:
Fender mods: Rolled
Rubbing: Slight amount on rear fender liner over large bumps.

[heateris]

Brand/Name: Flik Justice
Size: 18x8
Offset: ET32
Camber: n/a
Tires: BFGoodrich G-force SS A/S 235-40/18
Suspension: Neuspeed sport/ Koni yellows
Spring Rates: n/a
Ride height: 25"(?)
Fender mods: none
Rubbing: none

[Undisputed]

Brand/Name: ADR M-Classic
Size: 19X8.5
Offset: +35
Spacer(s): None
Camber: Unknown
Tires: 235/35/19 Achellis ATR Sport
Suspension: Stock USP

[BLUEBEAST]

Brand/Name: BB5 Lm Reps
Size: 19x8.5 Front 19x9.5 Rear
Offset: 32mm Front 35mm Rear
Camber: -1.5
Tires: 235/35R19
Suspension: H&R Sport Springs
Rubbing: Rear rubs with people in the back on bumps or hard turns

[pondside36]

Brand/Name: At Italia Nido Super Polished
Size: 18x8.5
Offset: 35
Spacer(s): None
Camber: ???
Tires: 235/40/18 Michilen Pilot Sport A/S
Suspension: Stasis Street Sports
Spring Rates: supplied springs
Ride height: 25.5
Fender mods: None
Rubbing: None
Brake Spec: Stock

[Skyler@Achtuning]

Brand/Name: Hartmann HRS4-DTM
Size: 18x8.0"
Offset: ET35
Rubbing: no


Brand/Name: Hartmann HRS4-252
Size: 19x8.5"
Offset: ET38
Tires: 235-35-19 Falken FK-452
Rubbing: no


Brand/Name: Hartmann HRS4-252
Size: 18x8.0"
Offset: ET32
Tires: 225-40-18 Bridgestone S-02
Suspension: Coilovers
Ride height: lowered
Rubbing: no
Brake Spec: Porsche


Brand/Name: Hartmann B7 Sport 295
Size: 18x8.0"
Offset: ET35
Tires: 225-40-18
Rubbing: no


Brand/Name: Hartmann HRS4-DTM
Size: 19x8.0"
Offset: ET35
Rubbing: no


Brand/Name: Hartmann HRS4-DTM
Size: 19x8.0"
Offset: ET35
Suspension: coilovers
Ride height: lowered
Rubbing: no


Brand/Name: Hartmann HR8
Size: 19x8.0"
Offset: ET35
Tires: 235/35/19 Bridgestone RE-750
Suspension: coilovers
Ride height: lowered
Rubbing: no


Brand/Name: Hartmann HRS4-252-M
Size: 19x8.5"
Offset: ET38
Suspension: STaSIS Streetsport coilovers
Ride height: lowered
Rubbing: no


Brand/Name: Hartmann HRS6-204
Size: 19x8.5"
Offset: ET38
Suspension: coilovers
Ride height: lowered
Rubbing: no


More pics available here:
http://gallery.hartmannwheels.com/main.php

[kneel]

Brand/Name: Alloy -r-us RS6 Reps Gloss Black
Size: 19x8
Offset: 35
Spacer(s):none
Camber: 0
Tires: Achilies ATR Sport
Suspension: H&R Springs / Koni Yellows
Spring Rates: ?
Ride height: ?
Fender mods: No Liner in rears (had 10mm spacers and rippedout driving)
Rubbing: not any more
Brake Spec: R1concept premioum Slotted/Drilled Rotors (soon B5 S4 setup)

[vinny.dtw]

Brand/Name: BBS RS-GT
Size: 19x8.5
Offset: 38
Spacer(s): Front: 8mm / Rear: 15mm
Camber: Front: -1.5 / Rear : Unsure
Tires: Toyo Proxes T1r 235/35/19 all around
Suspension: H&R Sports / Adjustable Bilstein Sport Shocks
Spring Rates: Unknown
Ride height: Front: 24.5/ Rear: 25
Fender mods: Fender liner screw removed.
Rubbing: None
Brake Spec: B6 S4 Brakes



-------------------------------------------------------------------------------------

Brand/Name: BBS CH
Size: 18x8.5
Offset: 35
Spacer(s): None
Camber: Front: -1.5 / Rear : Unsure
Tires: Yokohama YK520 235/40/18 all around
Suspension: H&R Sports / Adjustable Bilstein Sport Shocks
Spring Rates: Unknown
Ride height: Front: 24.5/ Rear: 25
Fender mods: Fender liner screw removed.
Rubbing: None
Brake Spec: B6 S4 Brakes



-------------------------------------------------------------------------------------

Brand/Name: OEM RS4
Size: 19x9
Offset: 29
Spacer(s): None
Camber: Front: -1.5 / Rear : Unsure
Tires: Kumho Escta SPT Front: 225/35/19 and Rear: 235/35/19
Suspension: H&R Sports / Adjustable Bilstein Sport Shocks
Spring Rates: Unknown
Ride height: Front: 24.5/ Rear: 25
Fender mods: Fender liner screw removed.
Rubbing: None
Brake Spec: B6 S4 Brakes



-------------------------------------------------------------------------------------

Brand/Name: Flik Artic
Size: 18x8.5
Offset: 35
Spacer(s): None
Camber: Front: -1.5 / Rear : Unsure
Tires: Toyo Proxes 4: 235/40/18
Suspension: H&R Sports / Adjustable Bilstein Sport Shocks
Spring Rates: Unknown
Ride height: Front: 24.5/ Rear: 25
Fender mods: Fender liner screw removed.
Rubbing: None
Brake Spec: B6 S4 Brakes



__________________________________________________ _________________________________

Brand/Name: O.Z Superturismo
Size: 17x8
Offset: 35
Spacer(s): None
Camber: Front: -1.5 / Rear : Unsure
Tires: Dunlop Wintersports 225/45/17
Suspension: H&R Sports / Adjustable Bilstein Sport Shocks
Spring Rates: Unknown
Ride height: Front: 24.5/ Rear: 25
Fender mods: Fender liner screw removed.
Rubbing: None
Brake Spec: B6 S4 Brakes

[AMESSA4_NJ]

Brand/Name: MRR gt1
Size: 18"
Offset:
Spacer(s): NONE
Camber:
Tires: Falken f452
Suspension: V-maxx coilovers
Spring Rates:
Ride height:
Fender mods:
Rubbing: none

[Feryunda]

Brand/Name: VMR V710 - Hyper Silver
Size: 18x8.5
Offset: ET35
Spacer(s): None
Camber:
Tires: Falken FR452 235/40ZR18
Suspension: Eibach Pro-kit/Stock USP shocks
Spring Rates:
Ride height:
Fender mods: Fronts rolled w/ liner screw removed
Rubbing: Slight on rear liner (no fender) on large bumps.
Brake Spec: B7 S4 Brakes

[krew53]

Brand/Name: Axis - Milano
Size: 19x8.5
Offset: ET35
Spacers: none
Camber:
Tires: Nitto - NT555 235/35/19
Suspension: Koni - Coilover
Fender mods: Fenders rolled w/ lining bolts removed.
Rubbing: occasional

[dubenvy]

Brand/Name: BBS CH - Rattle Can Edition
Size: 19x8.5
Offset: +35
Spacer(s):N/A
Camber: -1.4
Tires: 235\35\19 Kumho SPT
Suspension: H&R Coilovers
Spring Rates: ummmm
Ride height: low
Fender mods: my tires rolled the fronts from rubbing
Rubbing: yes....if you ain't rubbing, you ain't dubbing
Brake Spec: OEM

[mrbacardi35]

Brand/Name: BBS Avantgarde
Size: 18x8
Offset: et32
Spacer(s): 10mm all around
Camber: front- -1.5 rear- -2.5
Tires: 235/40/18 pirelli rosso
Suspension: h&r w/ bilstein sport
Spring Rates: n/a
Ride height: don't know
Fender mods: none
Rubbing: nope
Brake Spec: b5s4 fronts

[WantaA4]

Format

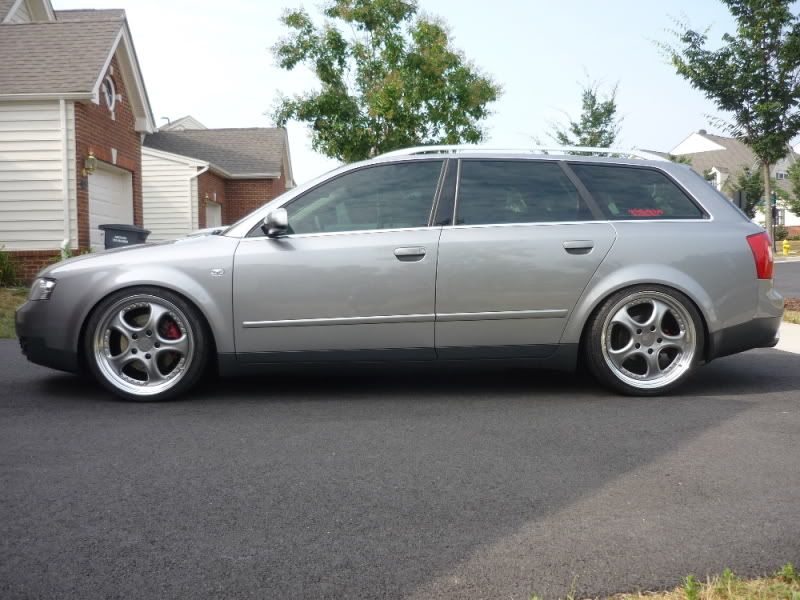

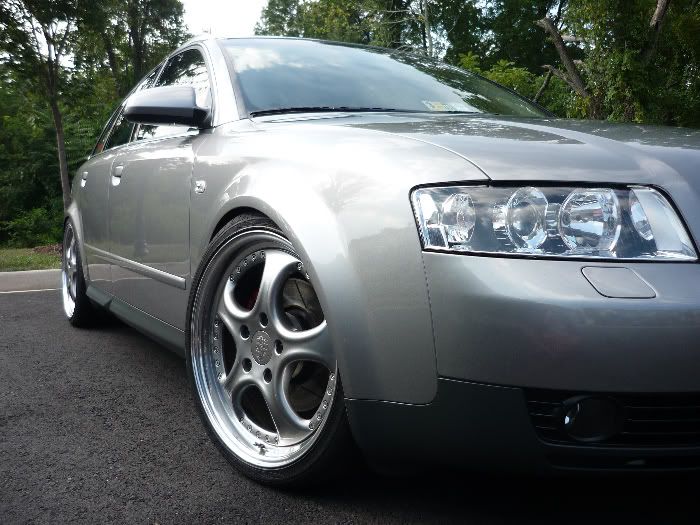

Brand/Name: RH 3 Piece Porsche AL Cups centers color-matched
Size: 19x8.5
Offset: 59
Spacer(s): 25mm Adapters 5x130
Camber:
Tires: Goodyear F1 235/35-19
Suspension: Koni Coilovers
Spring Rates:
Ride height: 24 Front/rear fender to ground
Fender mods: Fender liner screw removed
Rubbing: absolutely...on large bumps
Brake Spec:OEM

[BOPOH]

Brand/Name: Axis Matrix
Size: 19x8 rims
Offset: 30
Spacer(s): none
Camber: F -2*, R -3*
[B]Tires: 245/35r19
Suspension: Tein Coilovers basic
Fender mods: rolled, liners removed
Rubbing: sometimes on bumps
Brake Spec: stock





Brand/Name: OEM RS6
Size: 18x8 rims
Offset: 30
Spacer(s): none
Camber: F -2*, R -3*
Tires: 255/40r18
Suspension: Tein Coilovers basic
Fender mods: rolled, liners removed
Rubbing: sometimes on bumps
Brake Spec: ROTORA 6pot 355x32mm






Brand/Name: VMR 708
Size: 19x8 rims
Offset: 38(IIRC)
Spacer(s): none
Camber: F -2*, R -3*
[B]Tires: 235/40/18
Suspension: Tein Coilovers basic
Fender mods: rolled, liners removed
Rubbing: none
Brake Spec: ROTORA 6pot 355x32mm

[pogi]

Brand/Name: Linea Corse PFS
Size: 19x8.5
Offset: 35
Tires: Nitto Invo 235/35/19
Suspension: H&R Sports/Bilstein Shocks
Rubbing: none



Brand/Name: Linea Corse Lemans
Size: 19x8.5
Offset: 35
Tires: Nitto Invo 235/35/19
Suspension: H&R Sports/Bilstein Shocks
Rubbing: none



Brand/Name: Linea Corse Lemans
Size: 19x8.5, 19x9.5 in rear
Offset: 35
Tires: Falken FK452 225/35/19, 245/35/19
Suspension: H&R Sports/Bilstein Shocks
Rubbing: Slight rubbing in rears on dips



Brand/Name: Linea Corse Dyna
Size: 19x8.5
Offset: 35
Tires: Nitto Invo 235/35/19
Suspension: H&R Sports/Bilstein Shocks
Rubbing: none




Brand/Name: Linea Corse Strasse
Size: 19x8.5, 19x9.5 in rear
Offset: 35
Tires: Falken FK452 225/35/19, 245/35/19
Suspension: H&R Sports/Bilstein Shocks
Rubbing: none


Brand/Name: Linea Corse Lemans (Black)
Size: 18x8.5
Offset: 35
Suspension: H&R Sports/Bilstein Shocks
Rubbing: none

[a4808b6]

Brand/Name: i forged te-16
Size: 19x8.5
Offset: et35
Spacer(s): n/a
Camber:
Tires: kumho ecsta
Suspension: h&r sport
Spring Rates: n/a
Ride height: n/a
Fender mods: none
Rubbing: none
Brake Spec: stock

[grndzro26]

Brand/Name: RPM R-505
Size: 19x8.5
Offset: +38
Spacer(s): None
Camber:
Tires: 235/35/19 BFG KDW
Suspension: Stock 02 Sport
Spring Rates:
Ride height:
Fender mods:none
Rubbing: none
Brake Spec: Stock

[Capt. Obvious]

Are you all ready for this? LOL

In no particular order of appearance on my car:


Brand/Name: Azev
Size: 18x8.5 front, 18x10 rear
Offset: ~32 front, 27 rear
Spacer(s): None
Camber: -5 and then some (modified rear hubs to get extra cammber)
Tires: 215/40 front, 235/40 rear
Suspension: Air
Ride height: Low
Fender mods: Top screw removed from front fender liner, front fenders slightly rolled
Rubbing: Fenders sit on tires when aired out, rubbing around corners at low ride height
Brake Spec:Stock

[Capt. Obvious]

Brand/Name: Lorinser RSK-3
Size: 19x9
Offset: 38
Spacer(s): None
Camber: -4 degrees rear
Tires: 225/35 Dunlop Direzzas
Suspension: Air
Ride height: Low
Fender mods: None required
Rubbing: None
Brake Spec:Stock

[Capt. Obvious]

Brand/Name: Work Super Autostrada VIP
Size: 19x8.5 front, 19x9.5 rear
Offset: 28 front, 42 rear
Spacer(s): None (3mm required in front if you have B5 S4 brakes)
Camber: -4 in the rear
Tires: 225/35 front, 235/35 Falken FK 452
Suspension: Air
Ride height: Low
Fender mods: Top screw removed from front fender liner, front fenders slightly rolled
Rubbing: The front a little bit during hard cornering
Brake Spec:Stock

[Capt. Obvious]

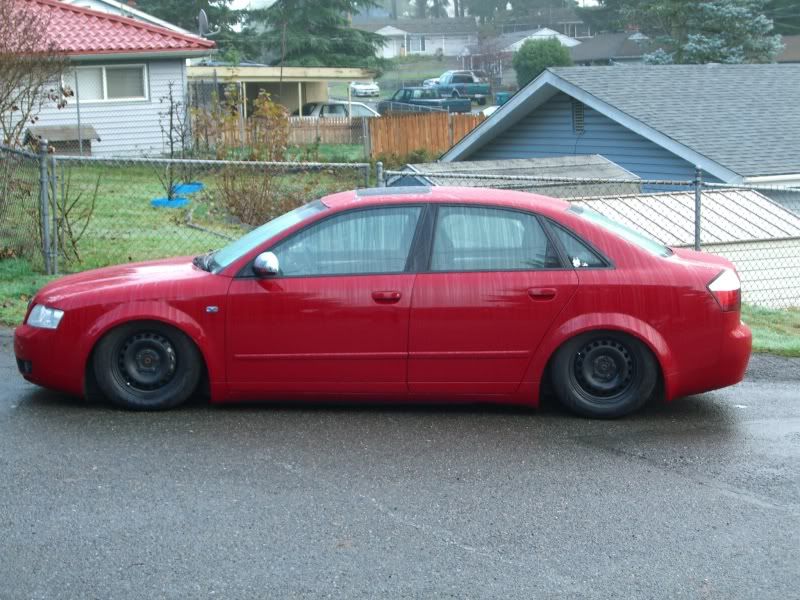

Brand/Name: Volkswagen mkV OEM Steelies
Size: 15x6.5
Offset: 48?
Spacer(s): None
Camber: Factory specs
Tires: 195/55 Bridgestone
Suspension: Air
Ride height: Stupid low
Fender mods: None needed
Rubbing: None
Brake Spec:Stock 1.8T brakes (3.0 brakes or larger won't fit under these)

[Capt. Obvious]

Brand/Name: Carlsson 3/6
Size: 18x8.5 front, 18x10 rear
Offset: et35 front, et28 rear
Spacer(s): 10mm front, for a final offset of 25
Camber: -5 and then some (modified rear hubs to get extra cammber)
Tires: 225/40 front, 255/35 rear Bridgestone Potenza
Suspension: Air
Ride height: Low
Fender mods: Top screw removed from front fender liner, front fenders slightly rolled
Rubbing: Front a little during hard cornering, rear over big bumps or during hard corning, rear fenders rested on tires when aired out
Brake Spec:Stock

[Capt. Obvious]

Brand/Name: Lorinser RSK-2
Size: 19x9
Offset: 37
Spacer(s): None
Camber: -4 rear
Tires: 225/35 Falken FK452
Suspension: Air
Ride height: Low
Fender mods: None required
Rubbing: Front a little during hard cornering
Brake Spec:Stock

[Capt. Obvious]

Brand/Name: Lexion 201
Size: 19x8.5 front, 19x9.5 rear
Offset: 38 front, 32 rear
Spacer(s): none (front could have used a 10mm spacer)
Camber: -3 rear or so
Tires: 235/35 BFG G-Force T/A
Suspension: Tein SS coilovers
Ride height: Forget
Fender mods: Top screw removed from front fender liner, front fenders slightly rolled
Rubbing: Rear a little bit if you don't crank the camber in
Brake Spec:Stock

[Capt. Obvious]

Brand/Name: MRR HR3
Size: 20x8.5
Offset: 35
Spacer(s): None
Camber: -3 or so rear (more than needed)
Tires: 225/30
Suspension: Tein SS coilovers
Ride height: Forget
Fender mods: Top screw out of front fender liners
Rubbing: None
Brake Spec:Stock

[Capt. Obvious]

Brand/Name: HRE 526
Size: 18x8.5 front, 18x10 rear
Offset: 30 front, 35 rear
Spacer(s): None
Camber: -3.5 rear
Tires: 225/40 front, 255/35 rear Falken 512
Suspension: Tein SS coilovers
Ride height: Really low
Fender mods: Top screw removed from front fender liner, front fenders slightly rolled
Rubbing: None front, lots rear over big bumps or when people in rear seat
Brake Spec:Stock

[3.0allwheelaudi]

Format
Brand/Name: RS4 Reps, gunmetal with polished face
Size: 18 inch
Offset: 42mm
Spacer(s): n/a
Camber: n/a
Tires: Nexan N5000(all seasons! dammit!)
Suspension: Eibach pro lines
Spring Rates: n/a
Ride height: 1.5 inch drop
Fender mods: none
Rubbing: none
Brake Spec: stock 3.0 brakes
